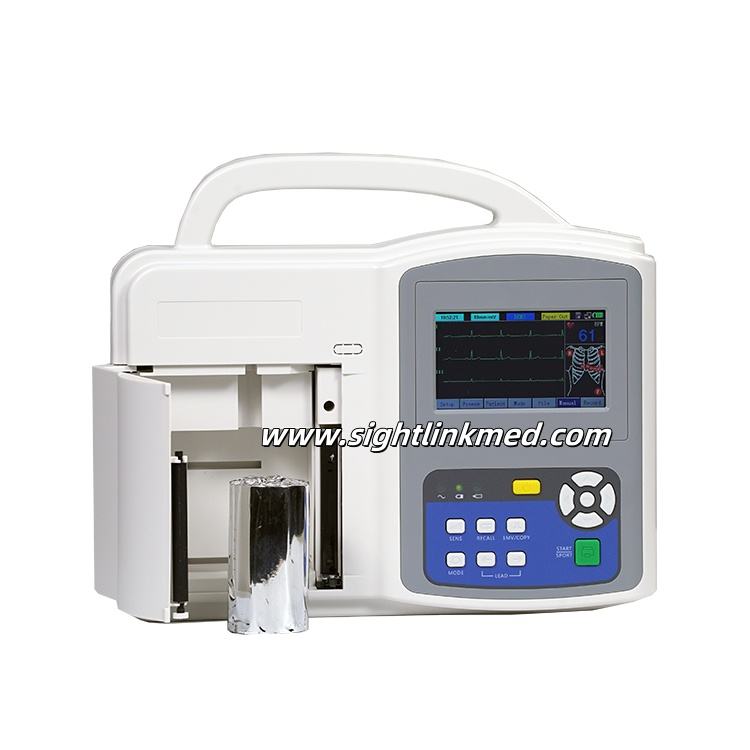

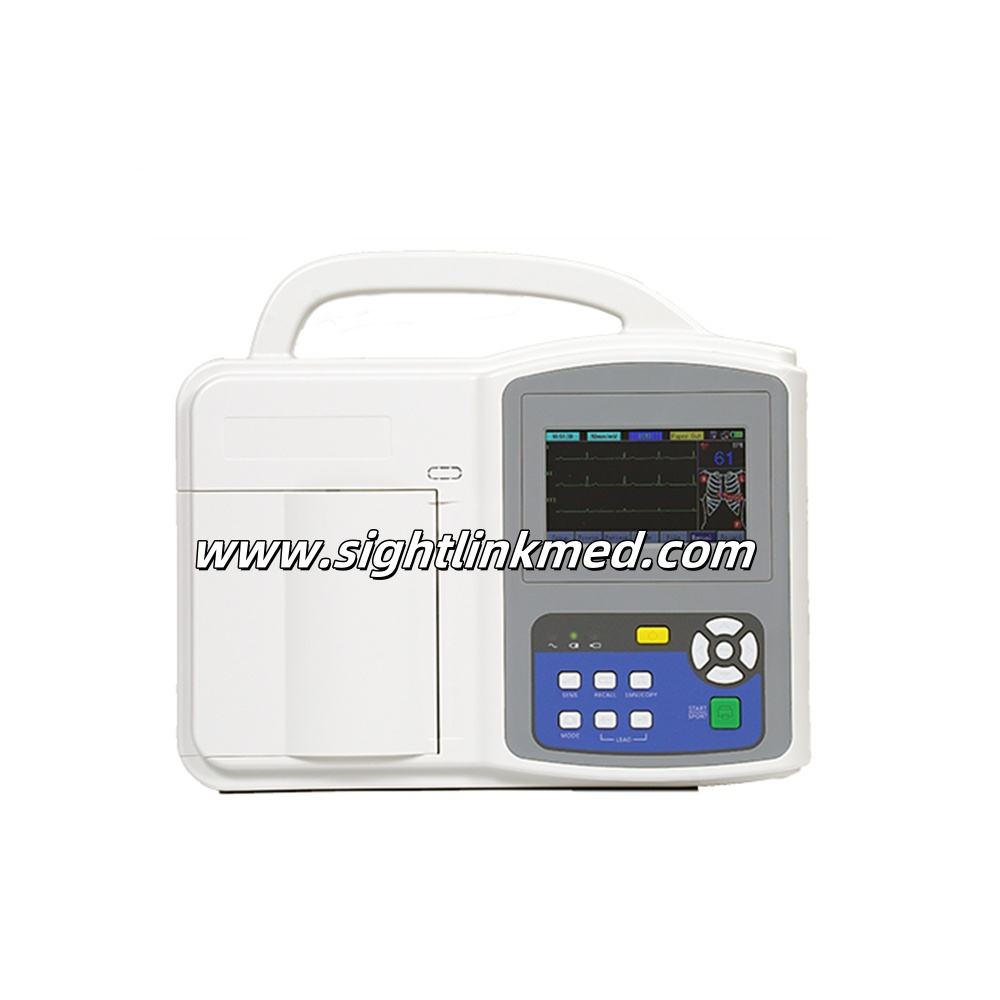

Veterinary Ecg Machine Digital 12 Leads Portable 3 Channel Ecg Machine for Pets Clinic

This 3 Channel Ecg Machine for Pets Clinic Simultaneously 12 Leads Acquisition, Synchronous Record Details of 3 ECG Waveforms automatically waveform analysisreport out fully.

Inquiry

    SKU: SL-UN8003 Category: Tags: , ,

    Description

    Features:

    ●Complete digital design, High Resolution Thermal Printer

    ● Simultaneously 12 Leads Acquisition, Synchronous Record Details of 3 ECG Waveforms automatically waveform analysisreport out fully.

    ● Full digital filter, High Resolution Thermal Printer, perfect ECG wave

    ● Both auto and manual mode are available.

    ● Match high-resolution color screen and user-friendly menu, touch-screen for option.

    ● AC.EMG interference avoiding baseline drift,

    ●AC/DC power supply built-in rechargeable Lion battery,support Uninterrupted Working Up to 3Hours without ACpower ● Slight key, support touch-screen input , single button operation

    ● Standard output/input interface,flexible output printpattern : three channel three channel + any rhythm lead+Support continuous 60 seconds of waveform in selectedlead, automatically analyze and revive the waveform, usefulto diagnose arrhythmia.
    ● Support lead-fail detector

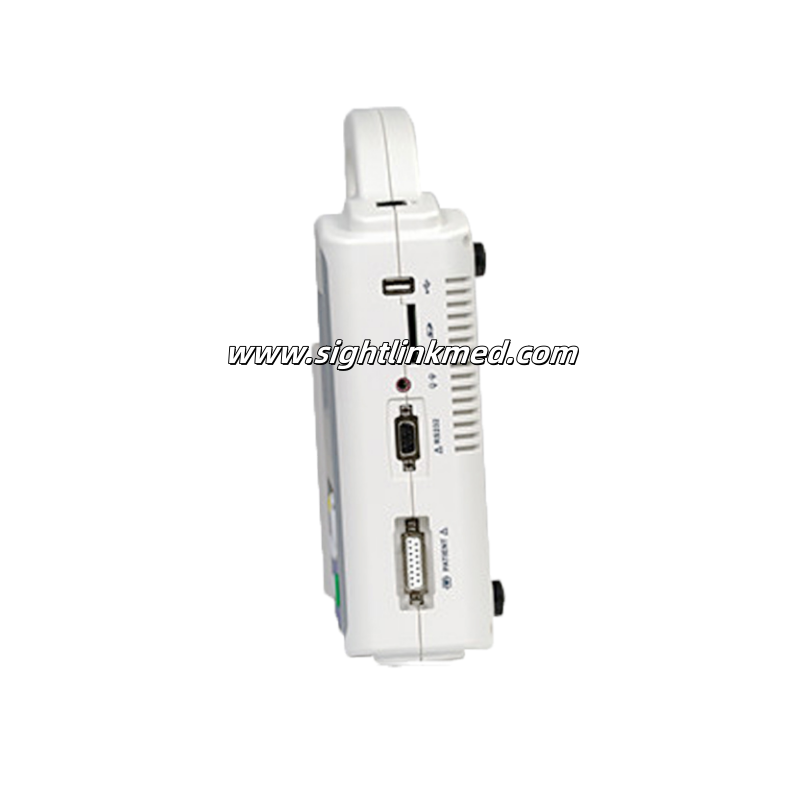

    ● Data storage & transmission -SD card , convenient for data exchange -USB printer interface , support character, symbols, waveform output -Support communicate with PC via RS232 and Ethernet
    Dispaly
    4.3” or 5.7″color screen
    Language
    Chinese、English
    Product weight
    1.4Kgs
    Operation temperature
    5°C-40°C

    Additional information

    Sensitivity

    2.5, 5,10,20mm/mV
    Noise level

    <15μVp-p
    Display

    4.3 inch TFT LCD with touch panel
    AC Flter

    50Hz / 60Hz
    ECG lead

    12 leads
    DC

    built-in rechargeable Lion battery
    Size

    310mm(L)*260mm(W)*85mm(H)
