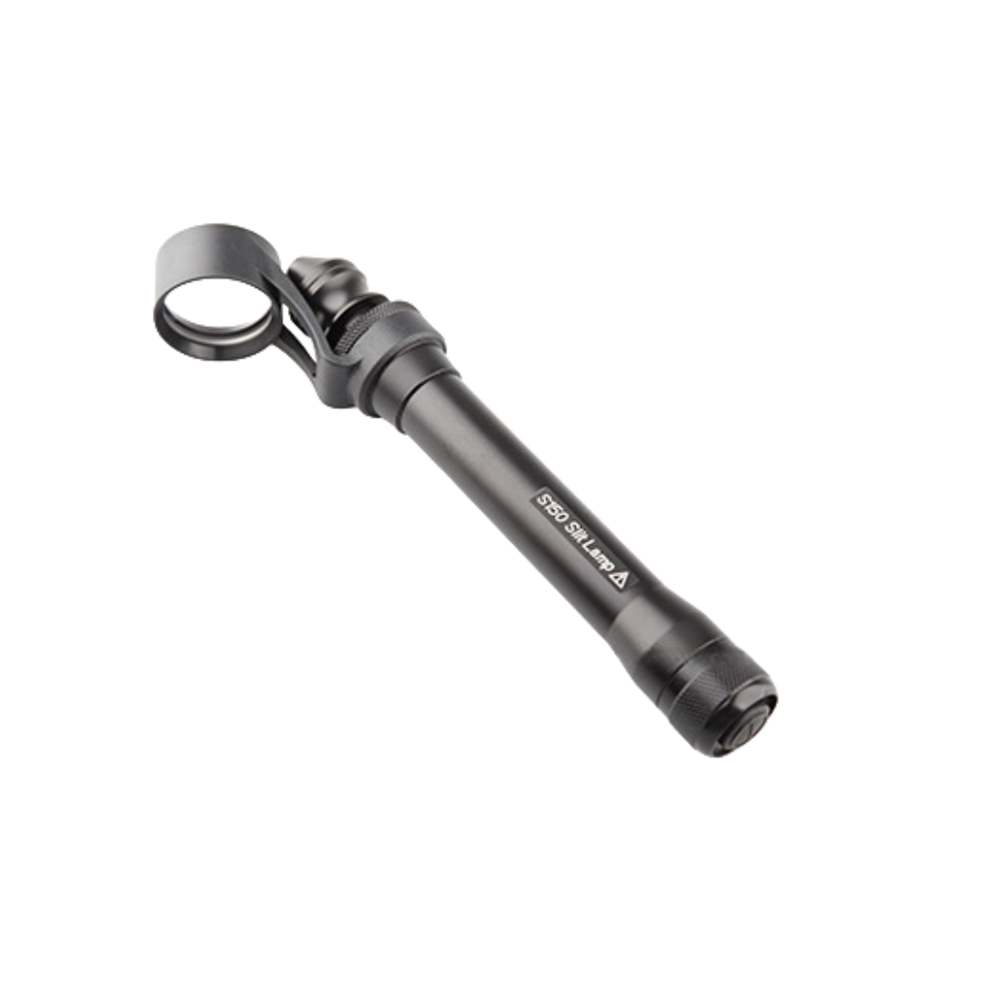

Portable Slit Lamp Mini Handheld Slit Lamp S150
Specifications:
Magnification:5x
Range of slit length:5mm~11mm
Minimum slit width:0.2mm
Working distance:12~32mm
Power supply:AA batteries x 2
Illumination:LED blub(3.3V/1W)
Battery life:More than 3h(AA alkaline butteries x 2)
Net weight:150g(without batteries)
Operation:
1. Press the Power Switch to turn the slit lamp on/off;
2. Loosen the Locking Screw;
3. Twist the Lamp Body while holding the Magnifier Bracket still till the slit is in the required angle;
4. Push or pull the Lamp Body while holding the Magnifier Bracket still to set the Magnifier into a position
comfortable for observation;
5. Fasten the Locking Screw;
6. Pull the Lamp Head back and forth for adjusting the width and the length of the slit, as well as the intensity of the light.
Quality assurance:
1. Vinner is equiped with world advanced computer driving production lines
2. Whole set of pure water processor line featured with RO anti-saturation and advanced testing devices
3. Manufactured in Class 100,000 Cleanroom
Description
Features:
1.Ultra-portable: the ultra-portable is an excellent diagnostic instrument for examination of anterior segment structures and
ocular abnormalities. Its easy-to-operate optical system produces a high-brightness,continuously adjustable slit image ideal for
prediatric and geriatric setting,emergency department screenings,ward rounds,beside exmination,post-op evaluations and mission
work;
2.LED illumination: the first and the only portable slit lamp in the world applying LED illumination system.The most prominent
advantage of our LED illumination system gives examiner the clearest image without glare;
3.Comfortable using experience: The low heat radiation from our LED lamp makes the most comfortable examine experience for the
patient;

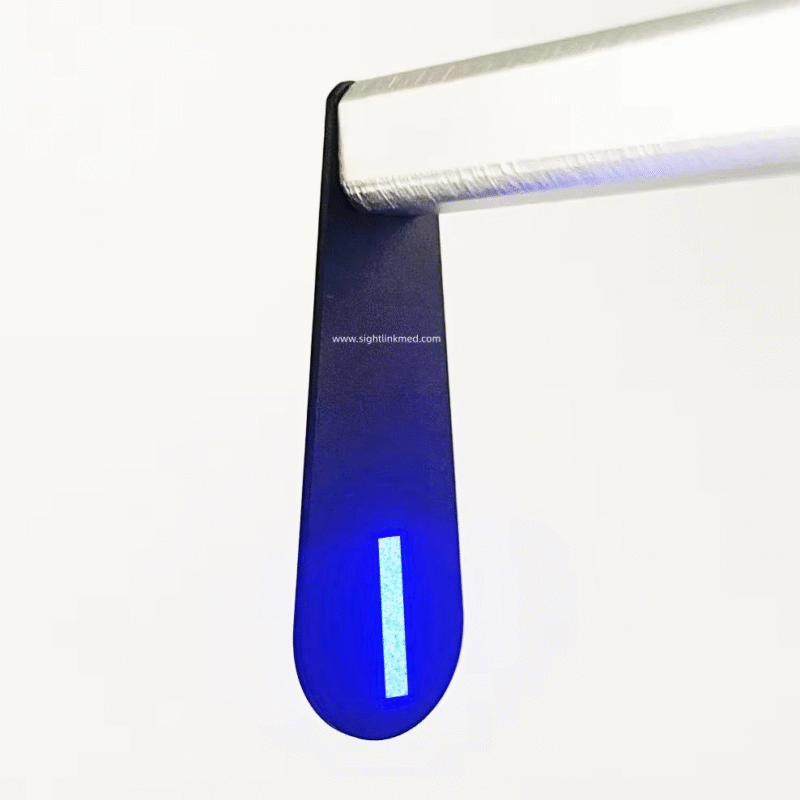

4.Sharpest Slit: With the blade imaging system S150 gives equally sharpest slit as the best classic slit lamp in the world;
5.No need to replace illumination lamp: The LED lamp used in S150 portable slit lamp is rated 20,000 hours at full power. Its life
time is almost 10 times longer than normal halogen lamp;
6.Power-saving: S150 can work for long hours without changing batteries.
