Optics Medical Equipment LED Microscope 2 Steps Digital Eye Exam Machine Portable Ophthalmic Slit Lamp
Imported Schott optics from Germany reduces optical distortion,increases clarity and depth of focus.
Description
Features:
*Converging stereoscope microscope provides the clear images.
*Imported Schott optics from Germany reduces optical distortion,increases clarity and depth of focus.
*All the optical lenses are moistureproof, mildewproof and anti-reflected treated.
*Two-step magnifications (10X, 16X) can be shifted by lever under ocular .
*All the joints can be connected by accessories with international standards.
| Microscope type | Converging stereoscope microscope |
| Objective Magnification | Two Steps Magnifications by shifting lever under ocular |
| Eyepiece | 10x |
| Magnifications (Field of View) | 10x（φ18mm）, 16x（φ14.5mm） |
| Pupil Distance | 55mm～82mm |
| Diopter adjustment | -5D~+6D |
| Slit image width | 0mm～9mm adjustable (Slit is round when the slit width is 9mm) |
| Slit image height | 1mm～8mm adjustable |
| Slit Inclination | 5°,10°,15°,20°,four steps adjustable |
| Slit Angle | 0°～180° adjustable |
| Light source | 12V/30W Halogen Bulb |
| Diameter of Light Spot | φ9mm, φ8mm, φ5mm, φ3mm, φ2mm, φ1mm, φ0.2mm |
| Filters | Heat Absorption, Grey, Redfree, Cobalt Blue |
| Input Voltage | AC 220V ±22 V, AC 110V±11 V |
| Electrical Safety Standard | Conform to Standard:IEC601-1,Class I,Type B |
| Packing Weight | 24Kg |
| Packing Size | 720mm x 495mm x 480mm |

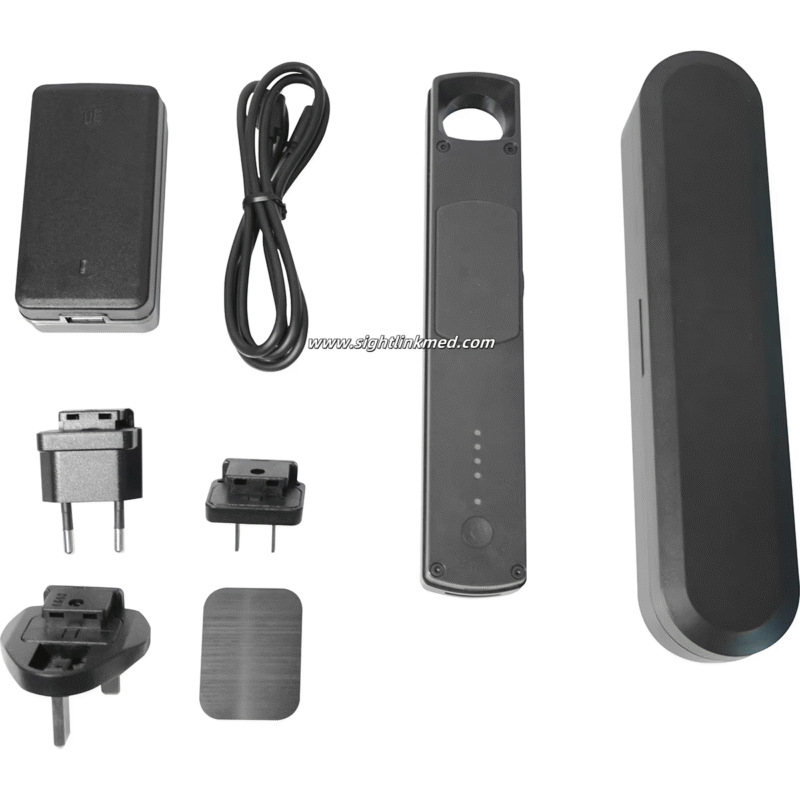

| Optional Accessories | Applanation Tonometer, Measuring Eye Piece ,Trihedron Lens, Gonioscope, Funduscope, Aspheric Lens, Retinal Lens, Teaching Tube, beamsplitter, smartphone photography adapter, eyepiece camera adapter |
