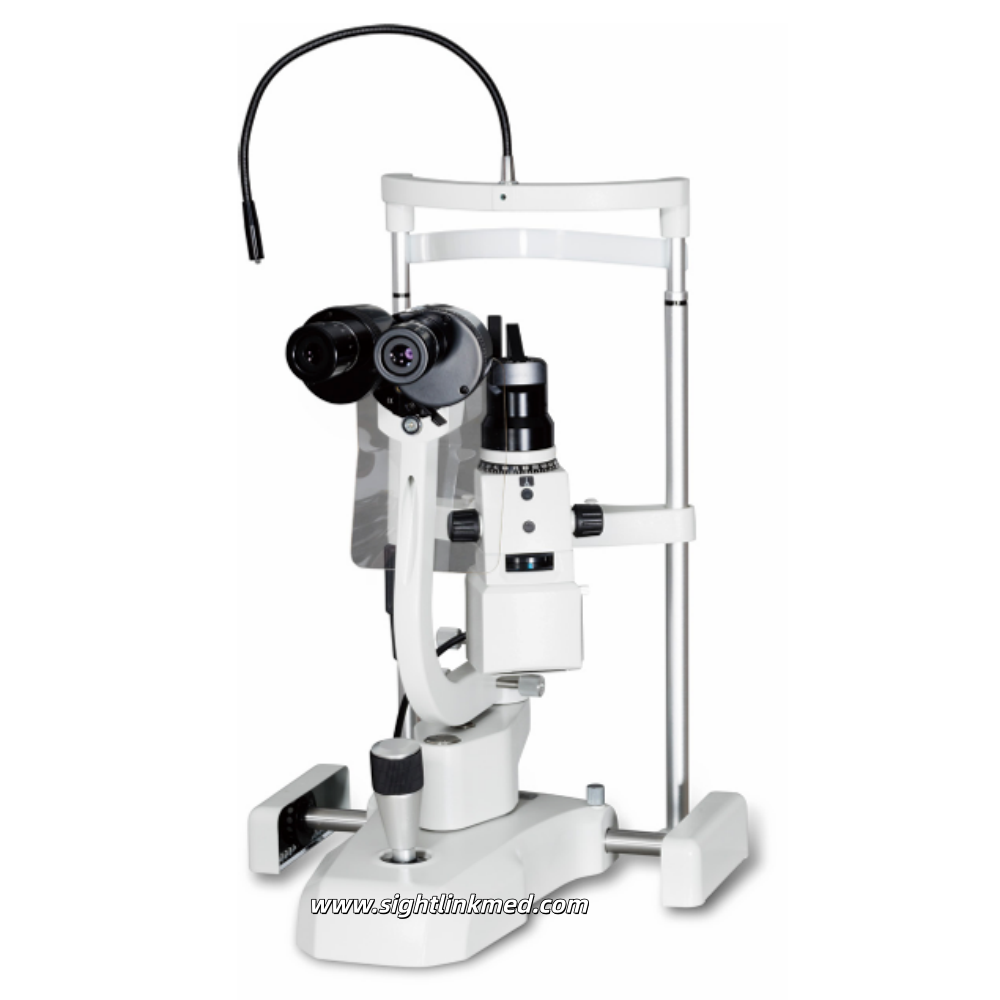

Ophthalmic Equipment Optical 2 Step Magnification Ophthalmology Digital Slit Lamp Microscope
Galilean stereoscopic microscope provides the practitioners unsurpassed clarity and sharpness, and avoid double images.
Description
Features:
*Galilean stereoscopic microscope provides the practitioners unsurpassed clarity and sharpness, and avoid double images.
*Five-step drum magnification.
*Optional accessories: Teaching Tube, CCD Camera and Tonometer.
*Advanced converging stereoscopic microscope.
*14mm aperture provides broader and clearer field of view.
*Compact and flexible structure ensures the convenient use.
| Microscope type | Galilean system |
| Magnification changer | Two Steps by shifting lever under ocular |
| Eyepiece | 10x |
| Magnification (Field of View) | 10x(φ22.5mm) 16x (φ14mm) |
| Pupil Distance | 55 mm~82 mm |
| Diopter adjustment | -6D~+6D |
| Slit image width | 0mm～14mm adjustable(slit is round when the slit width is 14mm) |
| Slit image length | 1mm～14mm adjustable |
| Slit Angle | 0°～180° adjustable |
| Diameter of Light Spot | φ14mm, φ9mm, φ5.5mm, φ0.3mm |
| Light source | 6V/20W Halogen Bulb |
| Input Voltage | AC220V±22 V；AC110V±11 V |
| Filters | Heat aborption, redfree(green), cobalt blue |
| Total Weight | 23Kg |
| Packing Size | 720mm*495mm*480mm |
