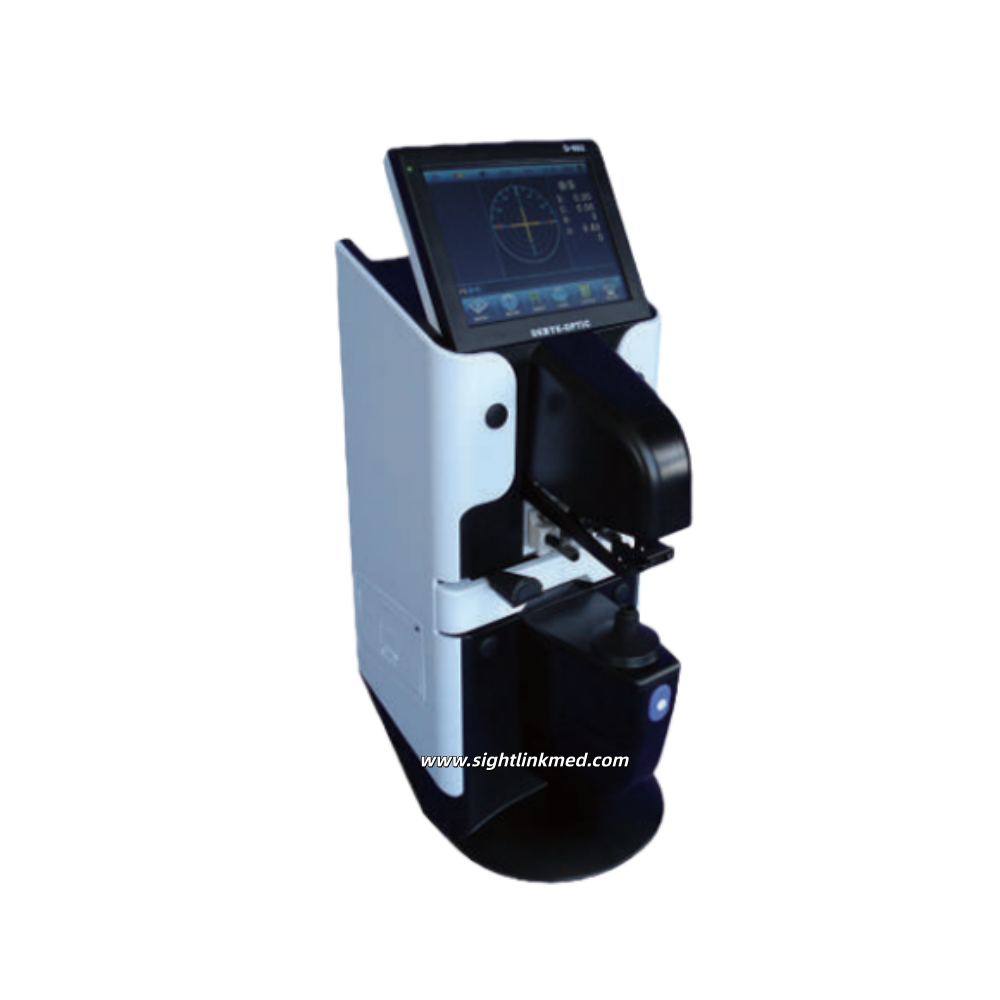

Multifunctional Automatic Optics China Smart Auto Opththalmic Optometry Equipment Digital Lens Meter Lensmeter
The new generation auto lensmeter is based on Hartmann Sensor technology. Advanced simultaneous measurement of 108 points provides a faster measurement with greater accuracy and reliability.
Description
Features :
• Compact and light
• Tilting TFT color LCD touch screen (AL-360: 5.6 inch, AL-360A: 7 inch) clear view, easy and convenient operation.
• Built-in thermal printer, and also can be connected to computer, and display the data on computer.
• Built-in UV tester
• PD measuring
• Automatic recognition of single and progressive lens
• Memory Function
|
Range of measurement
|
|
|
Sphere
|
0~+- 25D, 0.01/0.12/0.25D step;
|
|
Cylinder
|
0~ +-9.99 D 0.01/0.12/0.25D step.
|
|
Axis
|
0-180 ° (1 ° step)
|
|
Add.
|
0-9.99 D 0.01/0.12/0.25D step.
|
|
Prism degree
|
0-15 D 0.01/0.12/0.25D step.
|
|
Measurement mode
|
|
|
Cylinder
|
+, +/-, –
|
|
Prism
|
X-Y, P-B
|
|
Contact Lens
|
soft/hard;
|
|
Measuring mode
|
Single/progressive/automatic recognition
|
|
Specifications
|
|
|
Diameter of lens
|
20-108mm;
|
|
PD
|
40-90mm, 0.5mm step;
|
|
Speed of measurement
|
0.1s
|
|
Display
|
JD-2600B: 5.6” TFT LCD;
|
|
Printer
|
Thermal Printer
|
|
Weight
|
5.5kg
|
|
Power supply
|
100-240V, 50-60HZ
|
