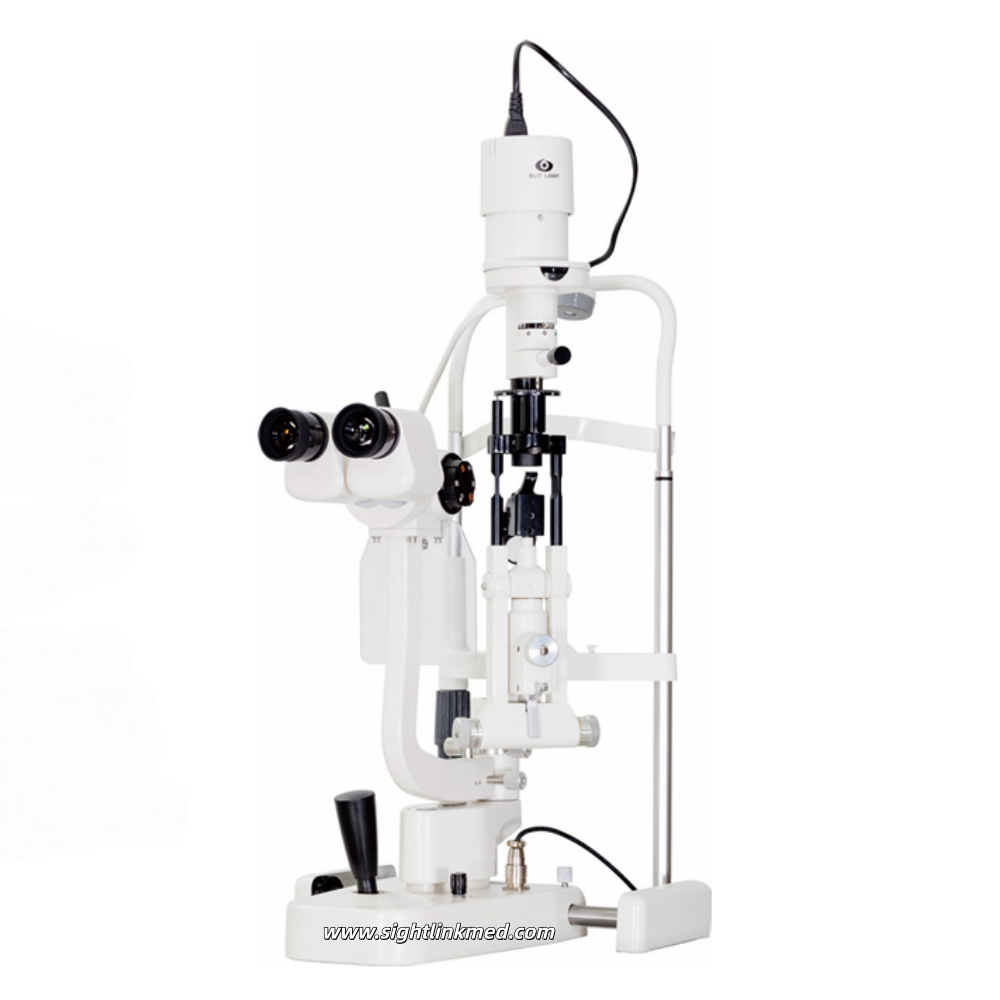

Medical Equipment Optics Microscope Digital Eye Exam Machine Portable Ophthalmic Slit Lamp
Imported Schott optics from Germany reduces optical distortion and enhance clarity and depth of focus
Description
Features:
*Classic Haag-Streit type slit lamp
*14mm aperture provides broader and clearer field of view
*Imported Schott optics from Germany reduces optical distortion and enhance clarity and depth of focus.
*All the Optical lenses are moistureproof, mildewproof and anti-reflective treated
*Excllent optical performances and long life span
| Microscope type | Galilean stereoscopic microscope |
| Objective Magnification | Five Steps by drum rotation |
| Eyepiece | 12.5x |
| Magnifications (Field of View) | 6x（φ33mm）, 10x（φ22.5mm）, 16x（φ14mm）, 25x（φ8.8mm）, 40x （φ5.5mm） |
| Pupil Distance | 55mm～75mm |
| Diopter adjustment | -5D~+3D |
| Slit image width | 0mm~14mm adjustable( slit is round when the slit width is 14mm) |
| Slit image height | 1mm~14mm adjustable |
| Slit Inclination | 5°, 10°, 15°, 20°,four steps adjustable |
| Slit Angle | 0°～180° adjustable |
| Diameter of Light Spot | φ14mm, φ10mm, φ5mm, φ2mm, φ1mm, φ0.2mm |
| Filters | Heat Absorption, Grey, Redfree, Cobalt Blue |
| Input Voltage | AC 220V ±22 V, AC 110V±11 V |
| Electrical Safety Standard | Conform to Standard:IEC601-1,Class I,Type B |
| Packing Weight | 24Kg |
| Packing Size | 720mm x 495mm x 480mm |
| Optional Accessories | Applanation Tonometer, Measuring Eye Piece ,Trihedron Lens, Gonioscope, Funduscope, Aspheric Lens, Retinal Lens, Teaching Tube, beamsplitter, camera adapter |
