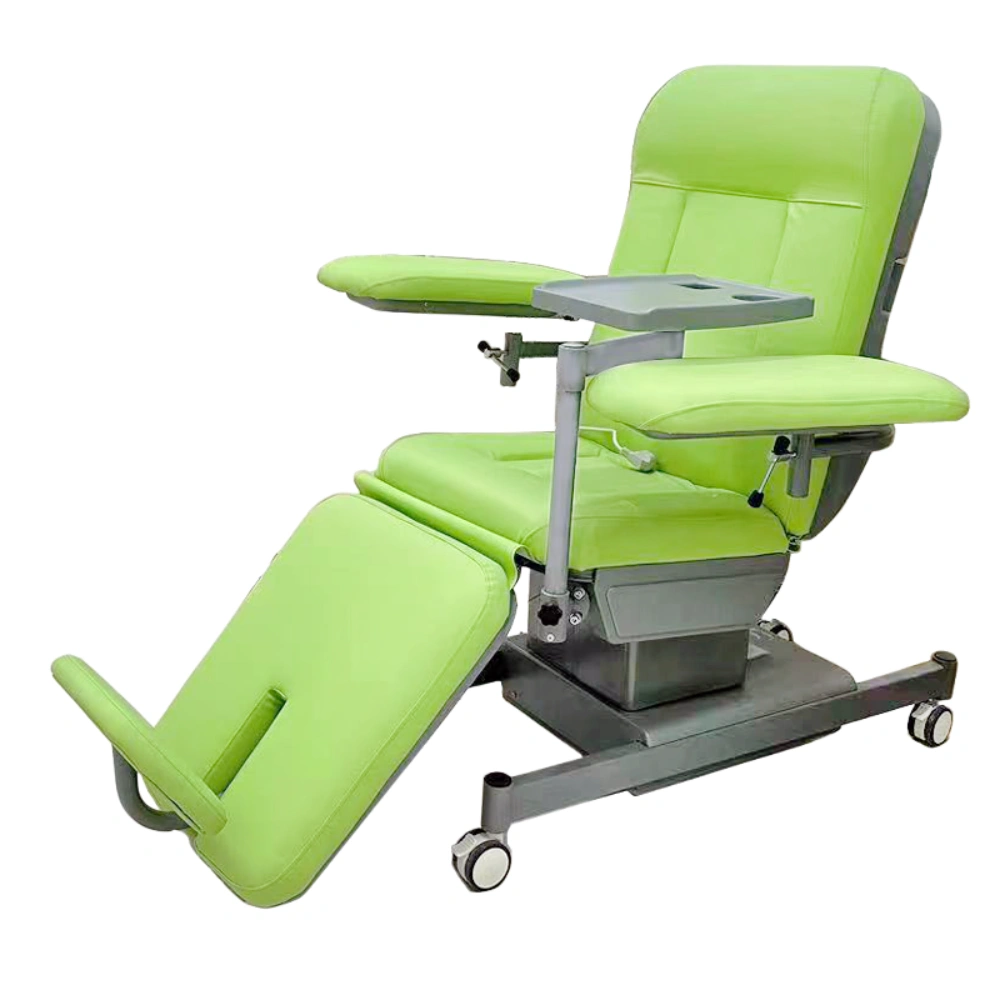

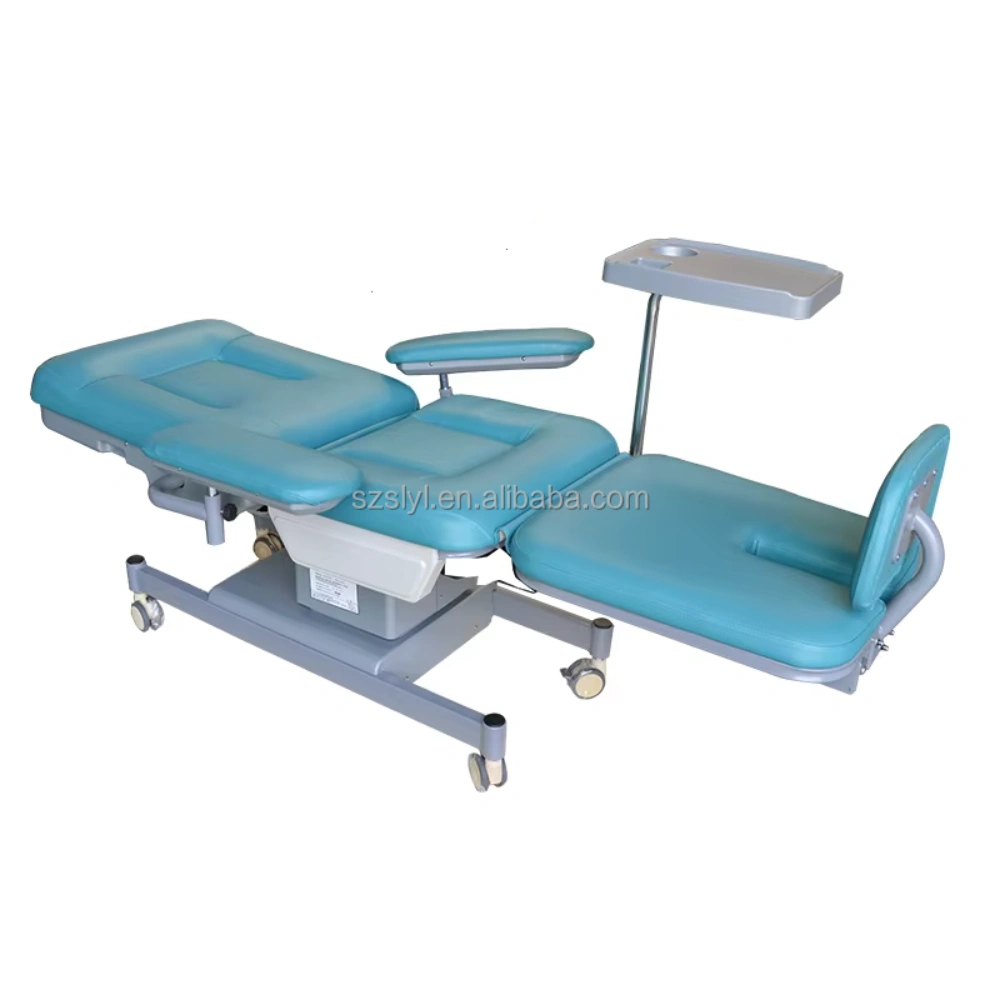

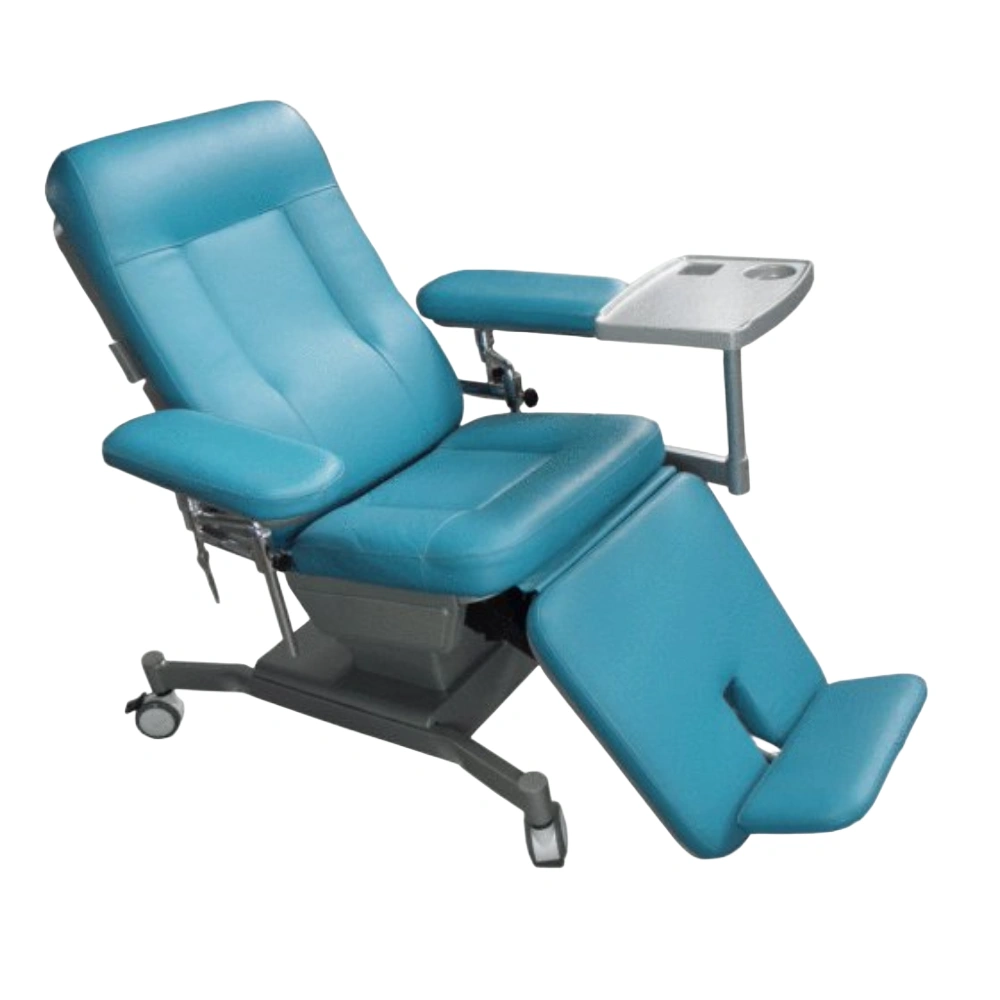

Medical Electric Adjustable Transfusion & Dialysis Chair

Description

Functions:

1. 3 Functions electric dialysis chair, backrest, legrest lifting and height adjustable
2. CPR- quick release back part
3. Back and leg can be adjustable,easy to choose chair position and bed position
4. 540mm ergonomics seat height
5. 150mm foot board adjustable distance
6. Upgraded armrest, can be right-left, front-back adjustable. Donor can control universal position

Technical Parameters:

1. Echnical Parameters
   Chair surface size (L/W): 1950mm * 580mm (including head pillow, leg backboard and pedal board);
   The height of the chair surface is 520 mm to 670 mm, and the angle of backward inclination in front of the chair is 8 ~15°.
   Back plate folding angle: 0 ~70°;
   seat plate folding angle: 8 ~25°;
   The folding angle of the leg relief plate is 20~75° and the lifting and moving distance of the pedal plate is 150 mm. Handrail
   lift: 100mm;
   Handrail board size (L/W): 500mm*180mm;
2. Handrail
   Upgraded armrest, can be right-left,front-back adjustable. Donor cancontrol universal position.Armrest is Rl20° concave curve,avoid donor’s arm sliding,ensurethe donor’ s safety andcomfortable.
   Electric system
   American motor, with UL/ROHS/EN standard. Noise under 50dB, with lifetime 20.000 times movement.
   motor maximum load: 80N;
   Motor input voltage: 24V;
   motor lift speed: 0.8/min;
3. Rotational table
   Small table size (L/W): 380mm * 280mm;
   Adjustable ABS tray table, withantiskid convex edge, tank forcup and cellphone. USB/5val optional.
   Very convenient for donor.
4. Footrest

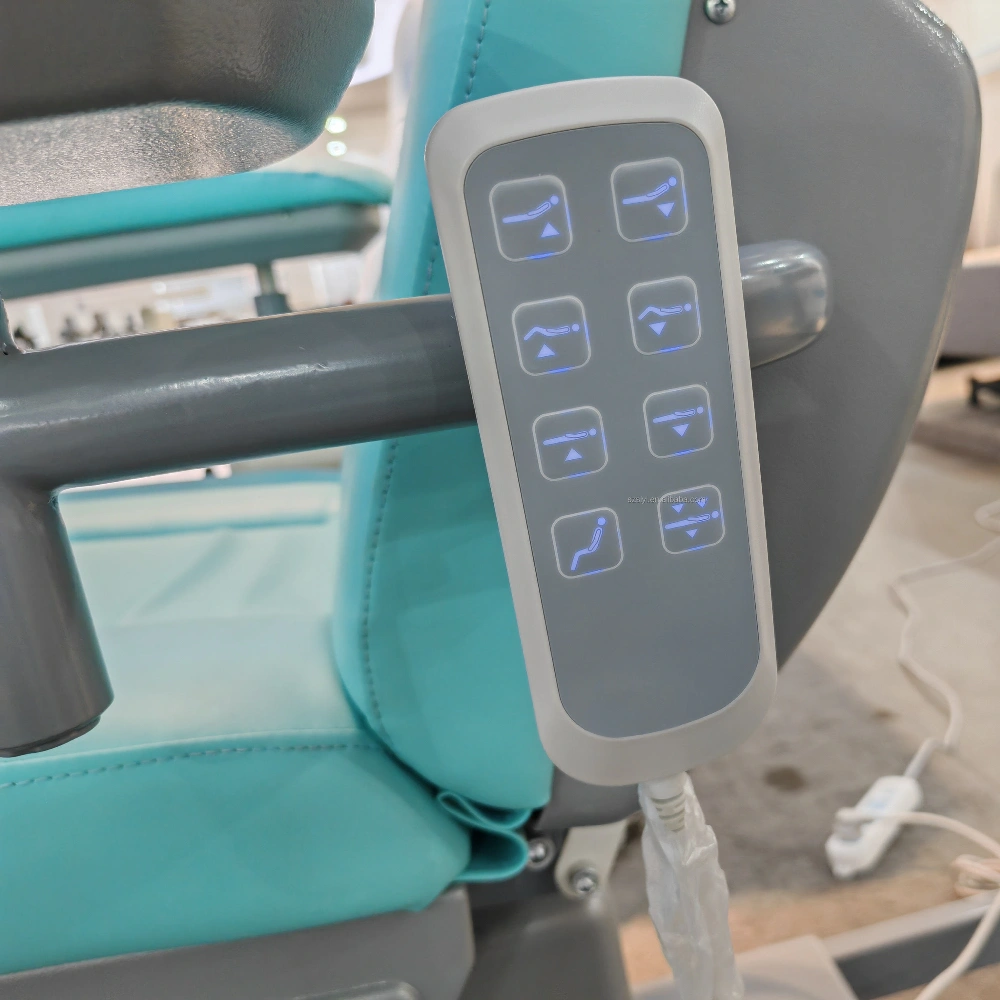

   Foot board can be adjustable by electric controller.

Accessories

* Optional genuine leather or supebric cover,with artisanal making,comfortable hand feeling.
* Armrest is R120° concave curve, avoid donor’s arm sliding,ensure the donor’s safety and comfort.
* Adjustable ABS tray table,with antiskid convex edge,tank for cup and cellphone.USB/5V optional.Very convenient for donors.
* Full SS IV pole, bearing 15kg

Specification
