Manufacturer Eye Exam Ophthalmology Instrument Portable Optical Oct Optical Coherence Tomography
This optical coherence tomography configured with state-of-the-art SLO-OCT imaging systems and the SLO-based eye tracker, is a powerful diagnostic tool for a variety of ocular diseases.
Description
Features:

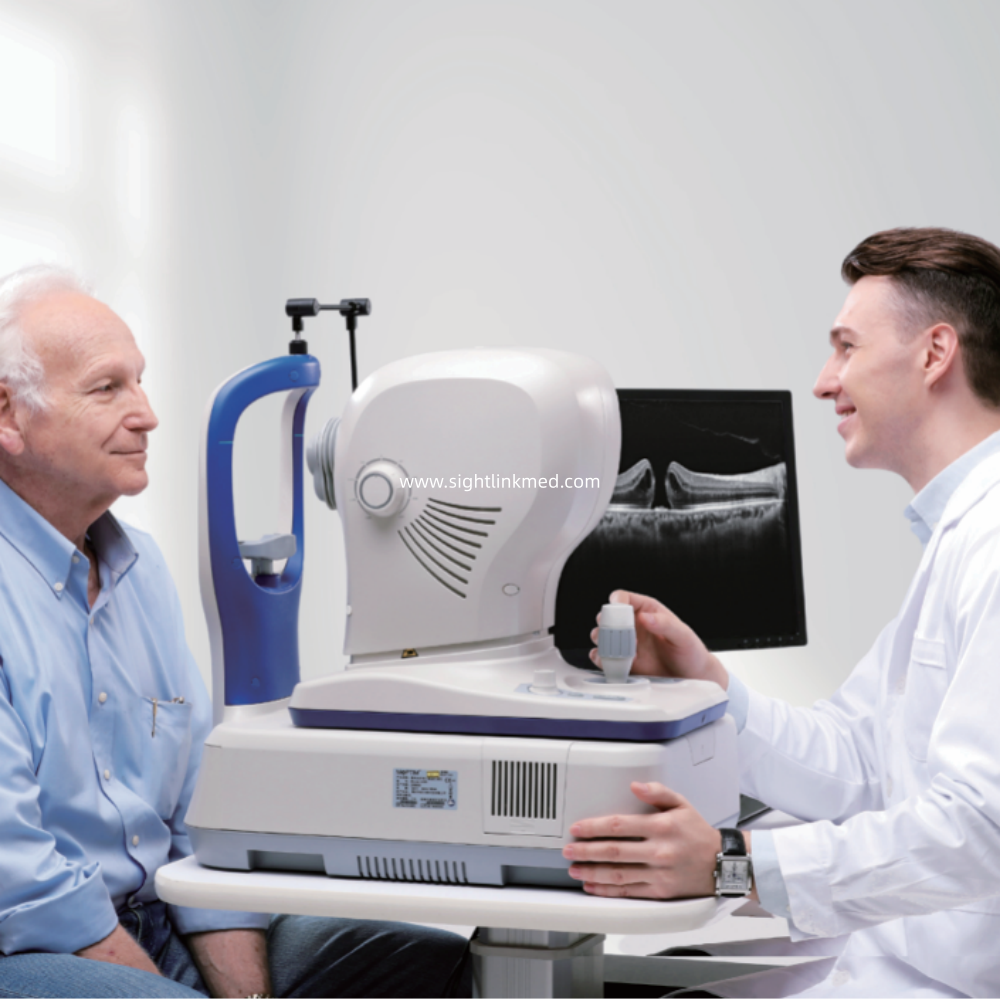

*Mocean 3000, configured with state-of-the-art SLO-OCT imaging systems and the SLO-based eye tracker, is a powerful diagnostic tool for a variety of ocular diseases.
*The key advantage of Mocean 3000 is the simultaneous acquisition of cross-sectional OCT imaging and 45 degrees fundus imaging based on Scanning Laser Ophthalmoscope (SLO).
*It gives you an overview of the retina so you can easily locate the lesion area before acquisition.
*Moreover, the eye tracker based on SLO can minimize the artifacts caused by eye drift and micro saccades, which gives you more confidence in practice.
| OCT IMAGING | |
| Methodology | Spectral domain OCT |
| Optical source | Super luminescent diode (SLD), 840 nm |
| Axial resolution (optical) | 5 microns (optical), 3.6 microns (digital) |
| Transverse resolution | 15 microns (optical), 3 microns (digital) |
| A-scan depth | 3 mm |
| Diopter range | – 20 to + 20 diopters |
| Scan patterns | Macular: HD line scan (6 / 12 mm), 3D scan (6 mm x 6 mm), 6-line radial scan,
Multi (X-Y: 5 x 5); Disc: 3D scan (6 mm x 6 mm)
Anterior: HD line scan (6 / 16mm), 6-line radial scan
|
| FUNDUS IMAGING | |
| Methodology | Line scanning laser ophthalmoscopy (LSLO) |
| Minimum pupil diameter | 3.0 mm |
| Field of view | 45±1 degrees |
| ELECTRICAL AND PHYSICAL | |
| Weight | 30.5 kg |
| Dimension | 532 mm (L) x 360 mm (W) x 540 mm (H) |
| Source voltage | AC 100 – 240 V, 50 Hz – 60 Hz |
| Power input | 90 VA |
