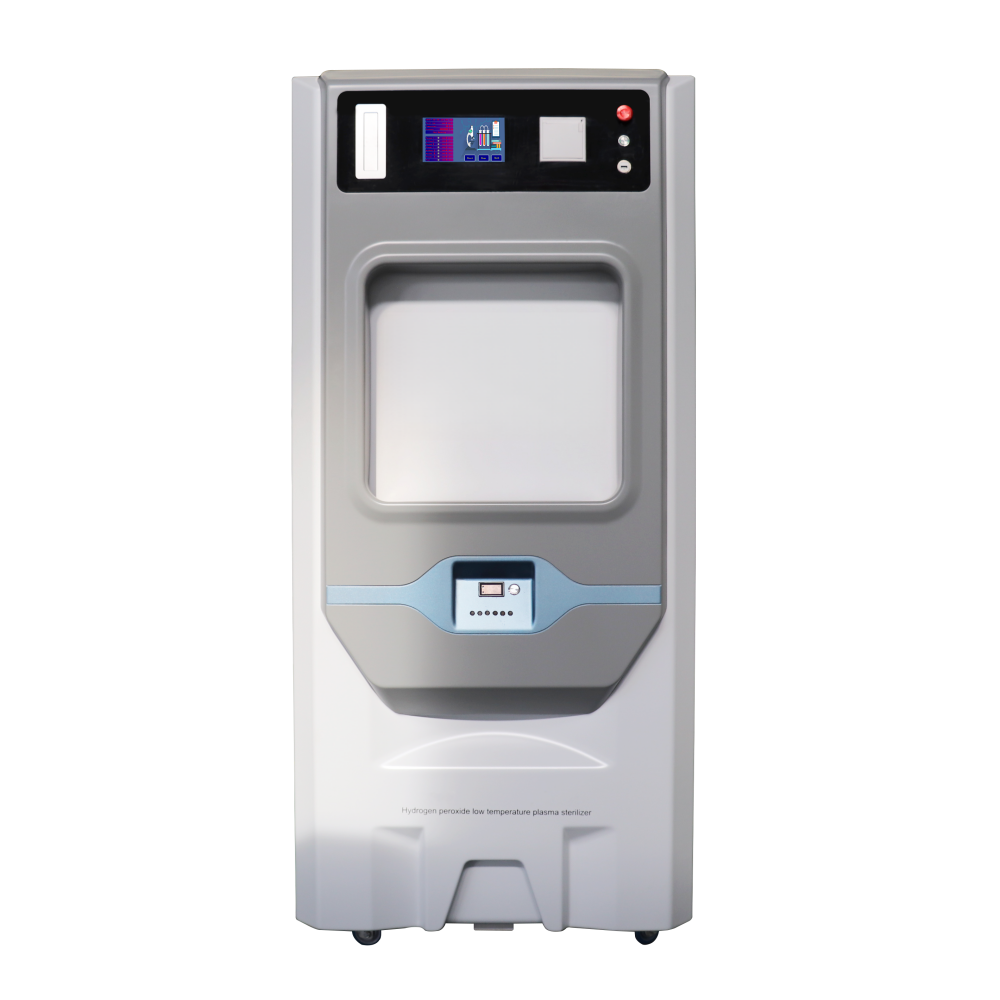

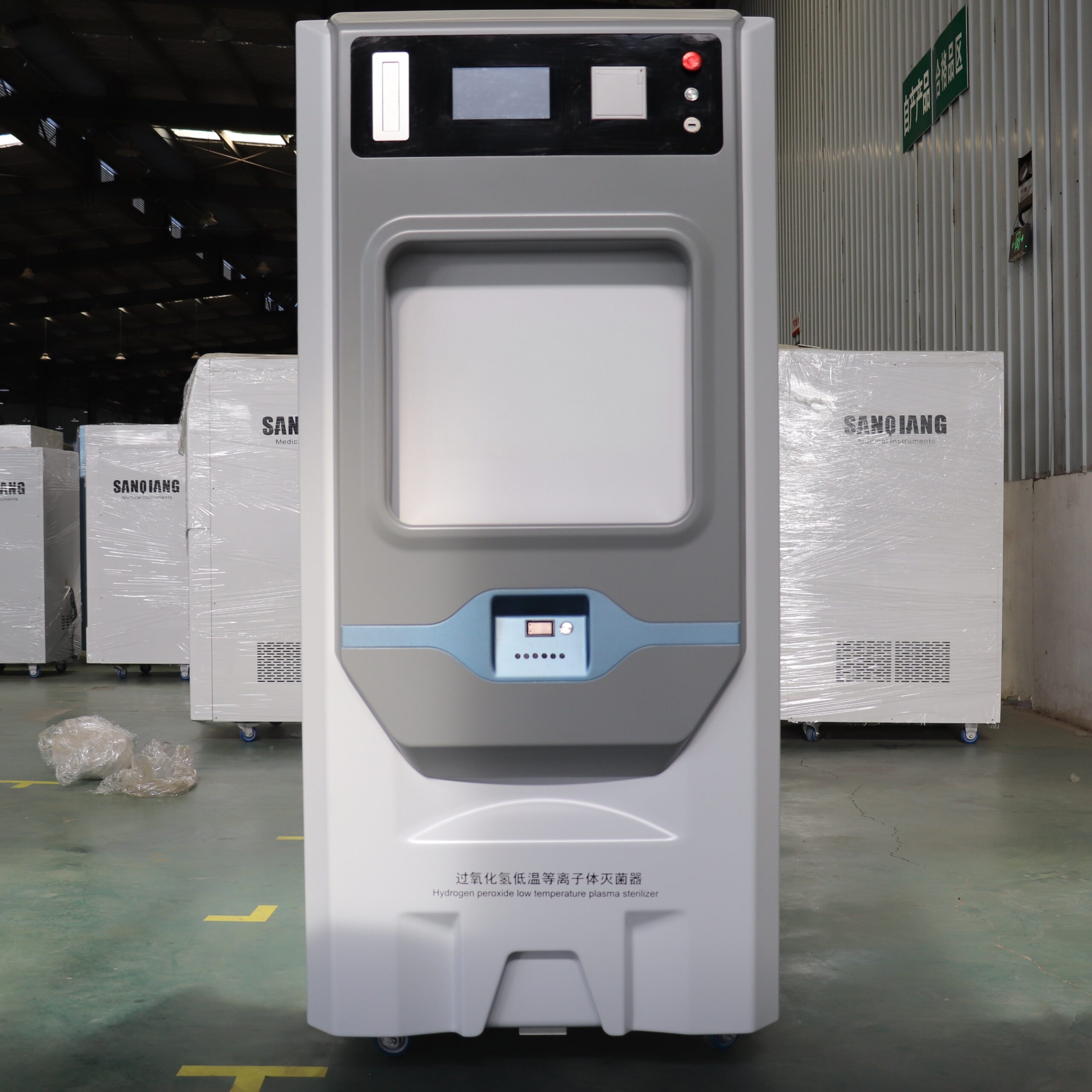

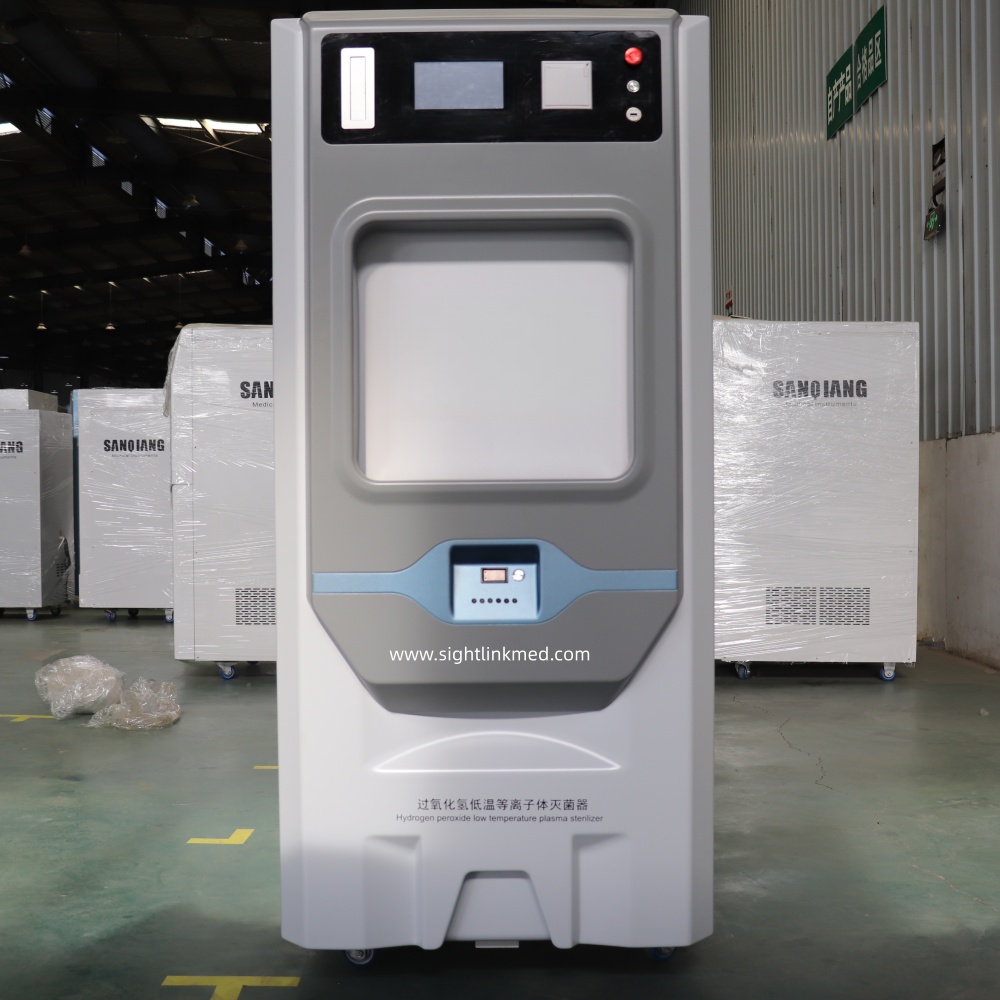

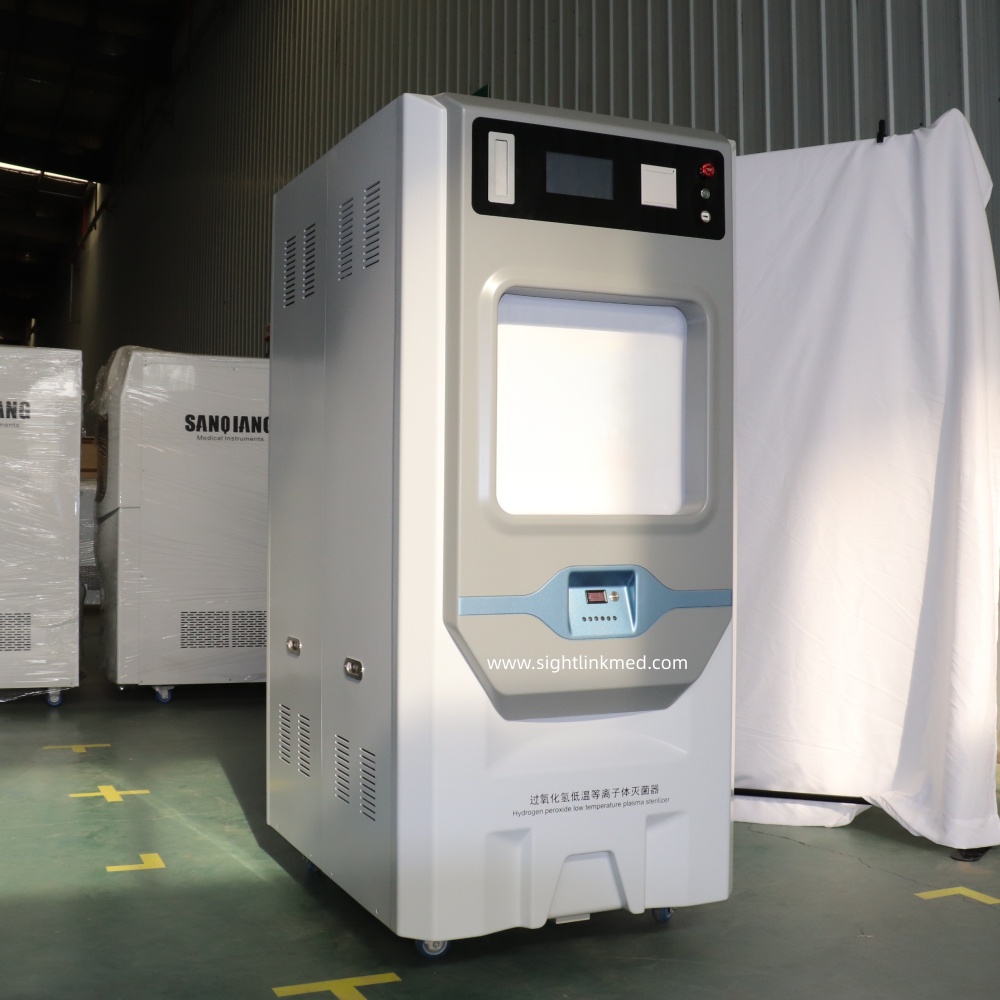

Hospital Instruments Medical Equipment Touch Screen H2o2 Low Temperature Plasma Sterilizers
The Low Temperature Plasma Sterilizer is used for the rapid sterilization of surgical instruments, fear of heat, fear of moisture, orthopedic electricdrill, electric knife, high seed material, ethylene thin material, soft and hard endoscope.
Description
1. Use
The product is used for the rapid sterilization of surgical instruments, fear of heat, fear of moisture, orthopedic electric
drill, electric knife, high seed material, ethylene thin material, soft and hard endoscope.
2. Material
* Chamber material: Using high quality 5052 aluminum, and using the advanced antioxidant treatment process, in the superior thermal conductivity and strengthen the corrosion resistance of the inner cavity.
* Cabinet material: Made of ABS material, high strength, heat-resistant and flame-retardant, the product is safer.
* Door panel material: Made of 5052 aluminum alloy material and subjected to anti-oxidation treatment; its thickness is ≥10mm. Greatly improves ultimate pressure resistance.
* Pipe material: Made of SUS304 stainless steel, sanitary pipes and clamp connections, relevant certification materials can be provided.
* Insulation Materials: ≥20mm thermal insulation cotton, with low thermal conductivity, good fire resistance and anti-aging ability strong, non-toxic, environmentally friendly, high-grade appearance and soft texture to ensure uniform temperature performance.
* Chamber material: Using high quality 5052 aluminum, and using the advanced antioxidant treatment process, in the superior thermal conductivity and strengthen the corrosion resistance of the inner cavity.
* Cabinet material: Made of ABS material, high strength, heat-resistant and flame-retardant, the product is safer.
* Door panel material: Made of 5052 aluminum alloy material and subjected to anti-oxidation treatment; its thickness is ≥10mm. Greatly improves ultimate pressure resistance.
* Pipe material: Made of SUS304 stainless steel, sanitary pipes and clamp connections, relevant certification materials can be provided.
* Insulation Materials: ≥20mm thermal insulation cotton, with low thermal conductivity, good fire resistance and anti-aging ability strong, non-toxic, environmentally friendly, high-grade appearance and soft texture to ensure uniform temperature performance.
| Overall dimensions | (length × width × height) 1105 × 790 × 1765mm |

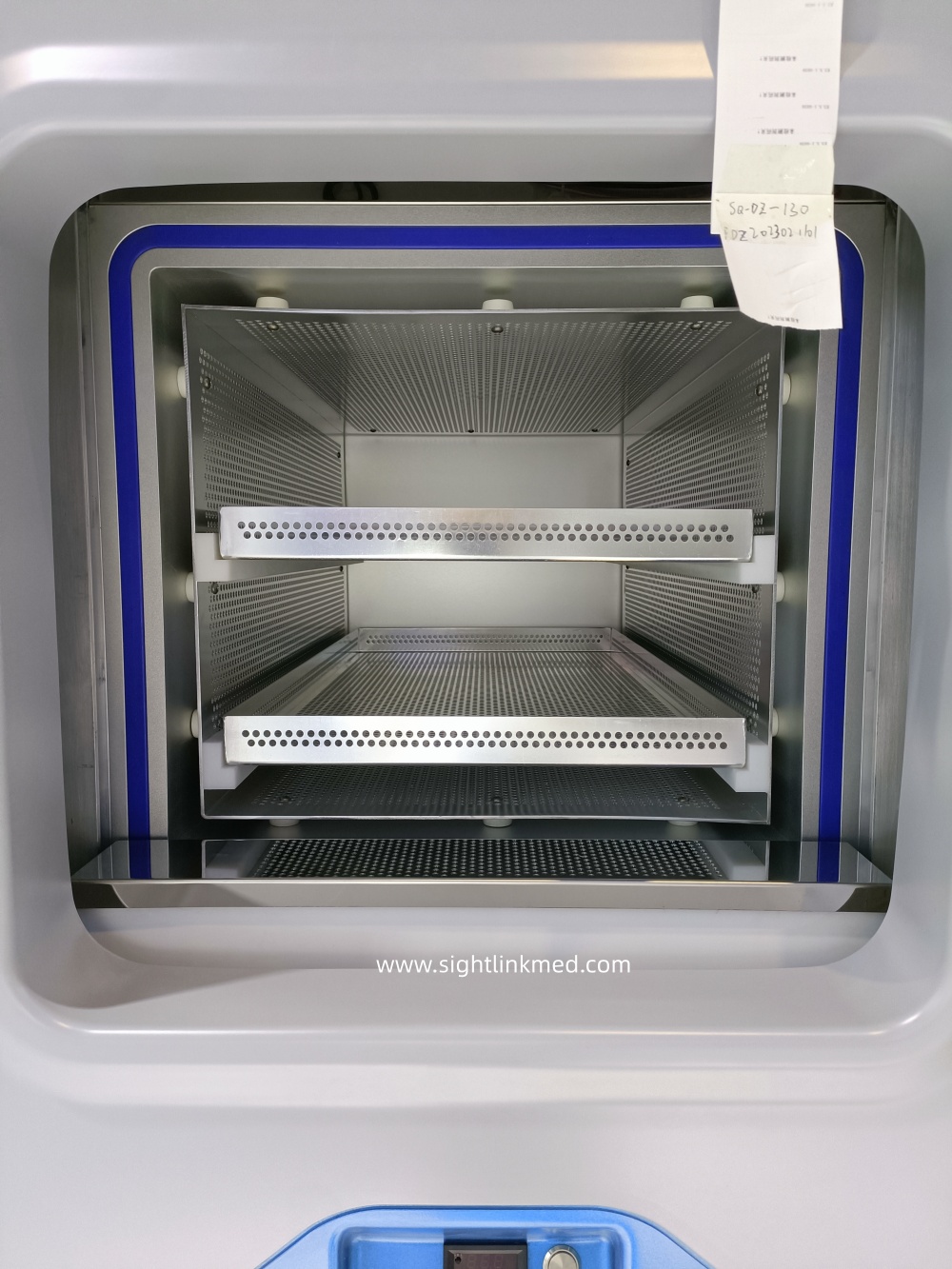

| Sterilization chamber size | (length × width × height) 700×430×360mm |
| Total volume | not less than 100L |
| Effective volume | not less than 80L |
| Working temperature | 45℃~60℃ |
| Power | 3.5KVA |
| Weight | 265kg |
