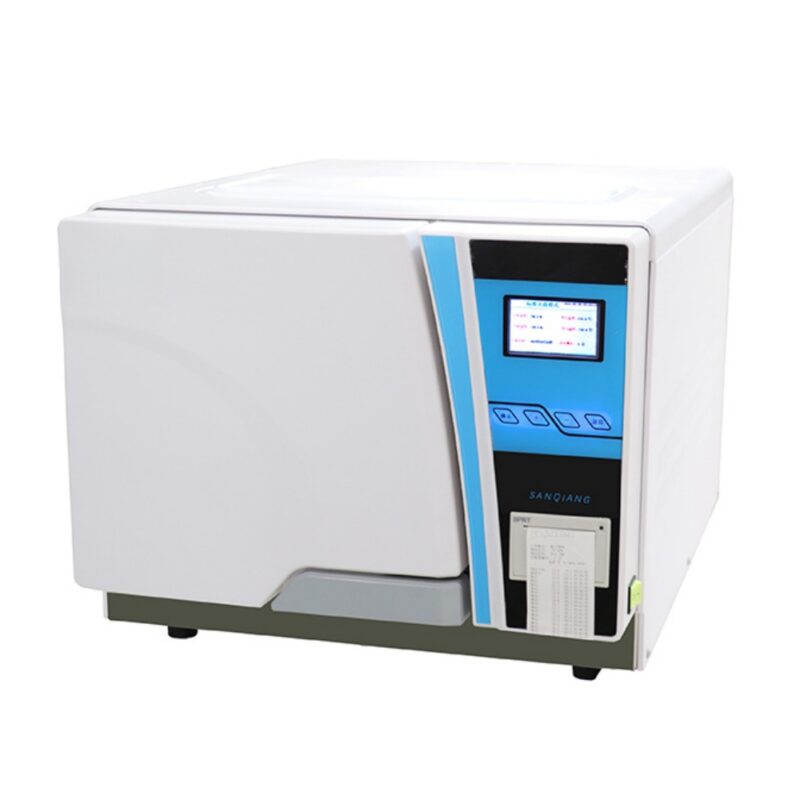

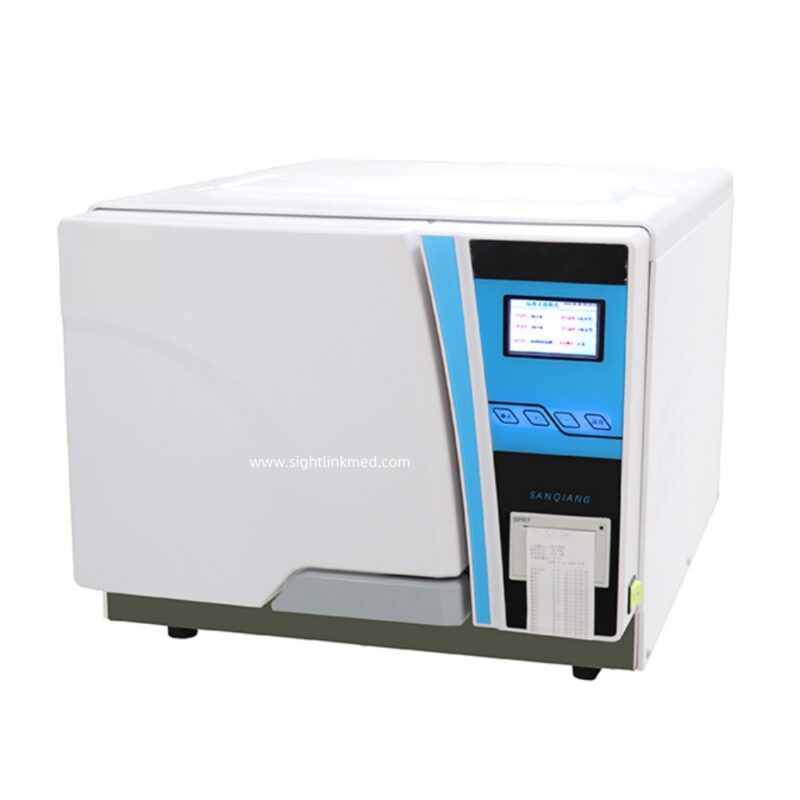

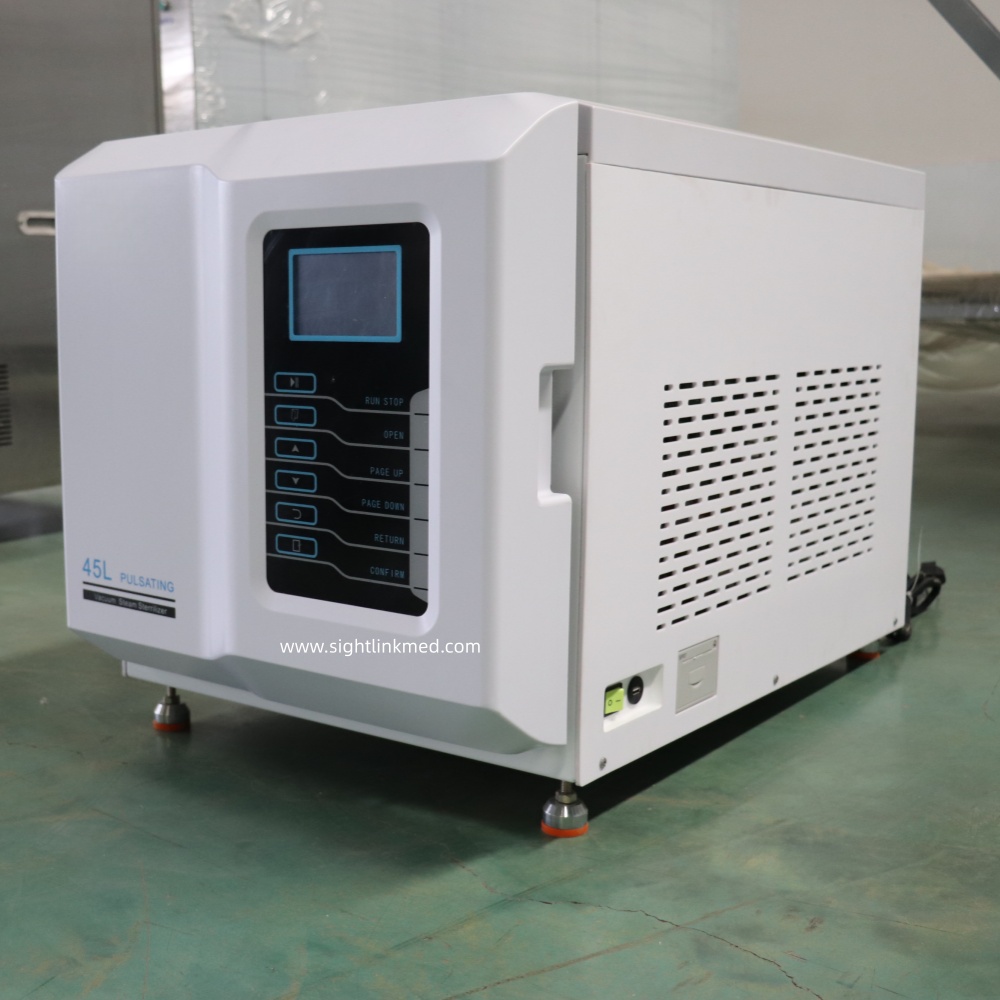

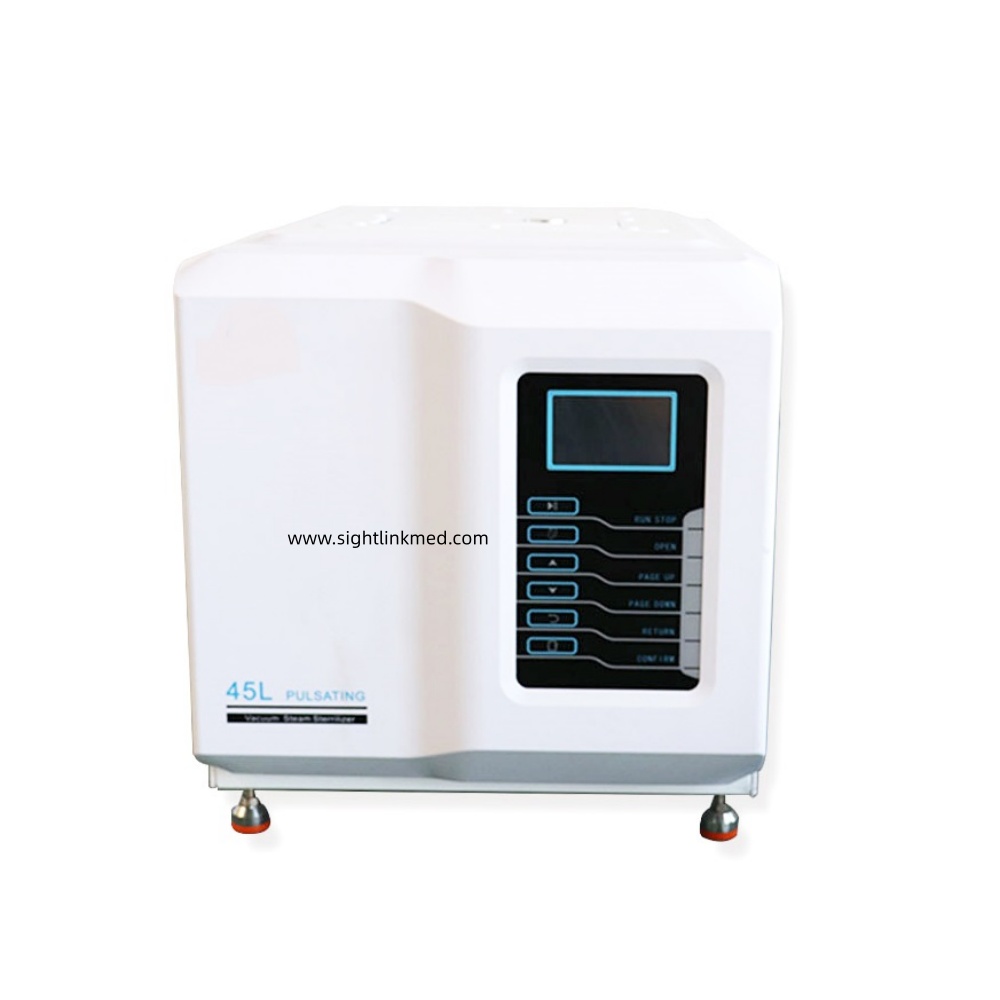

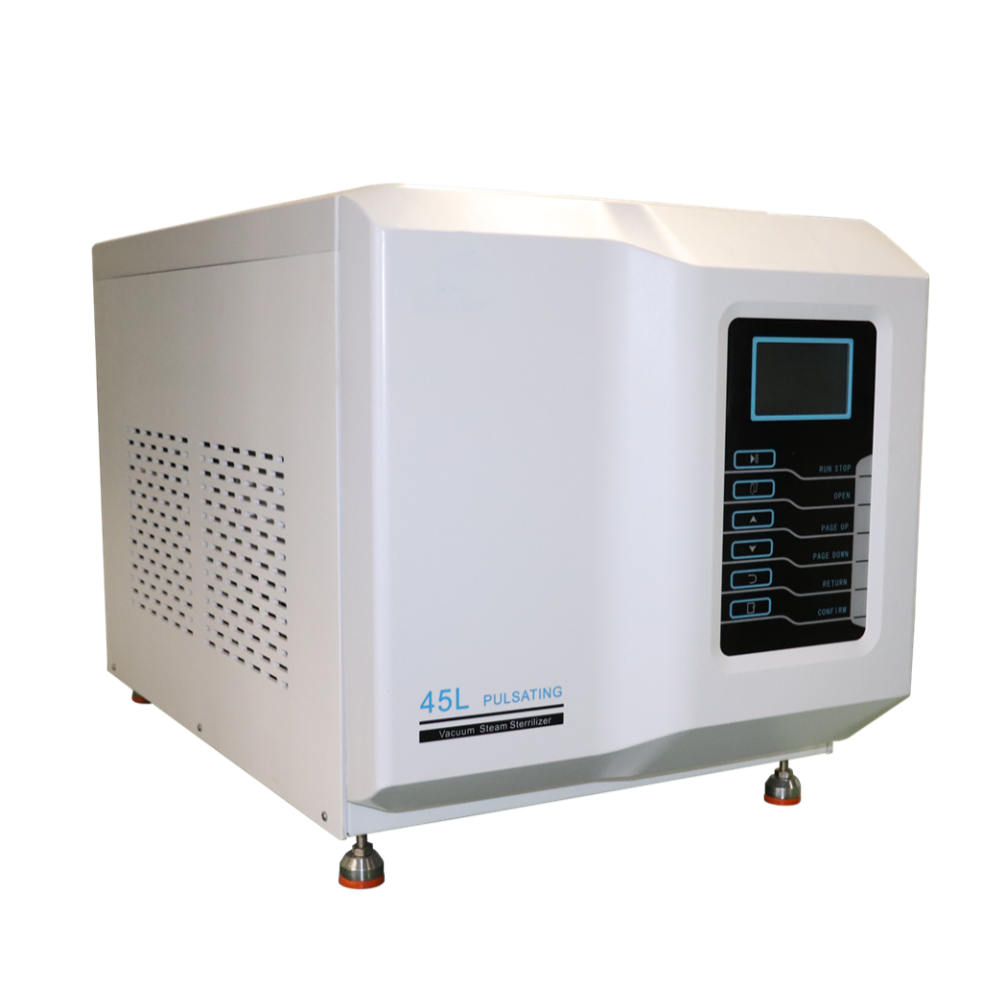

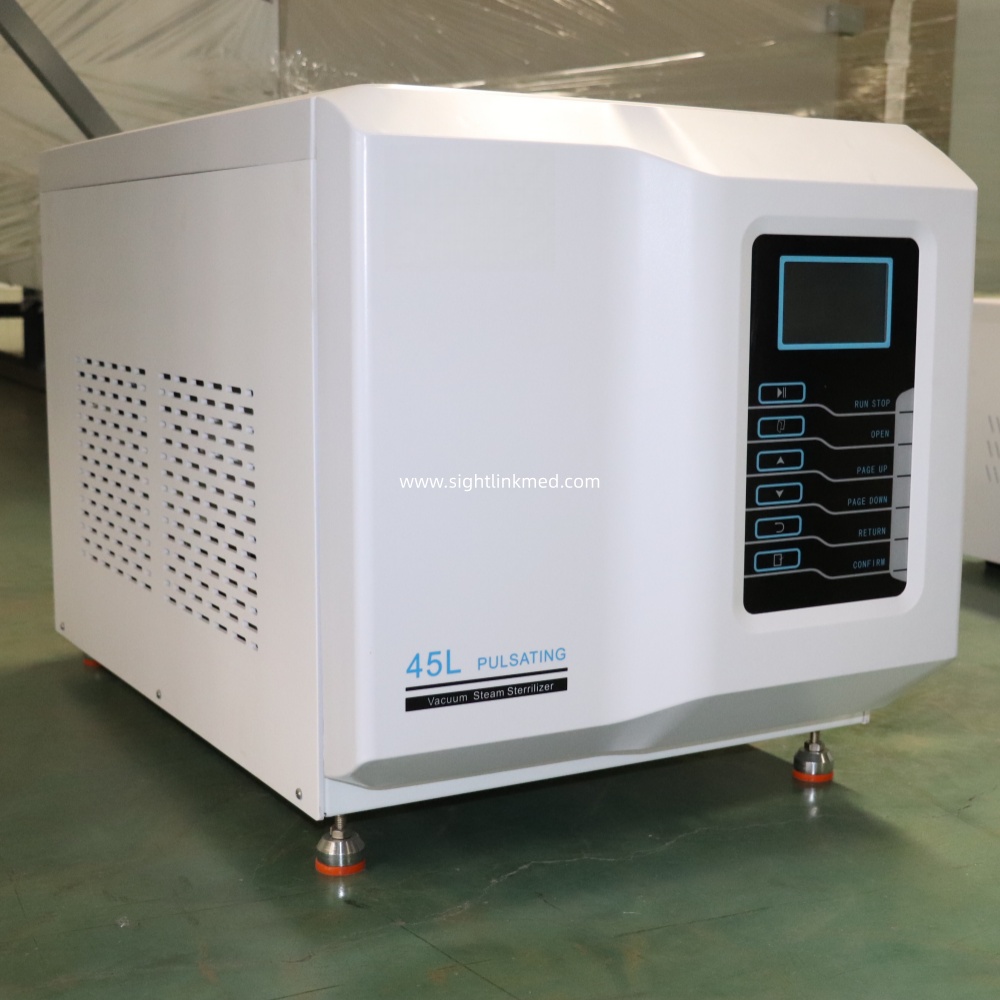

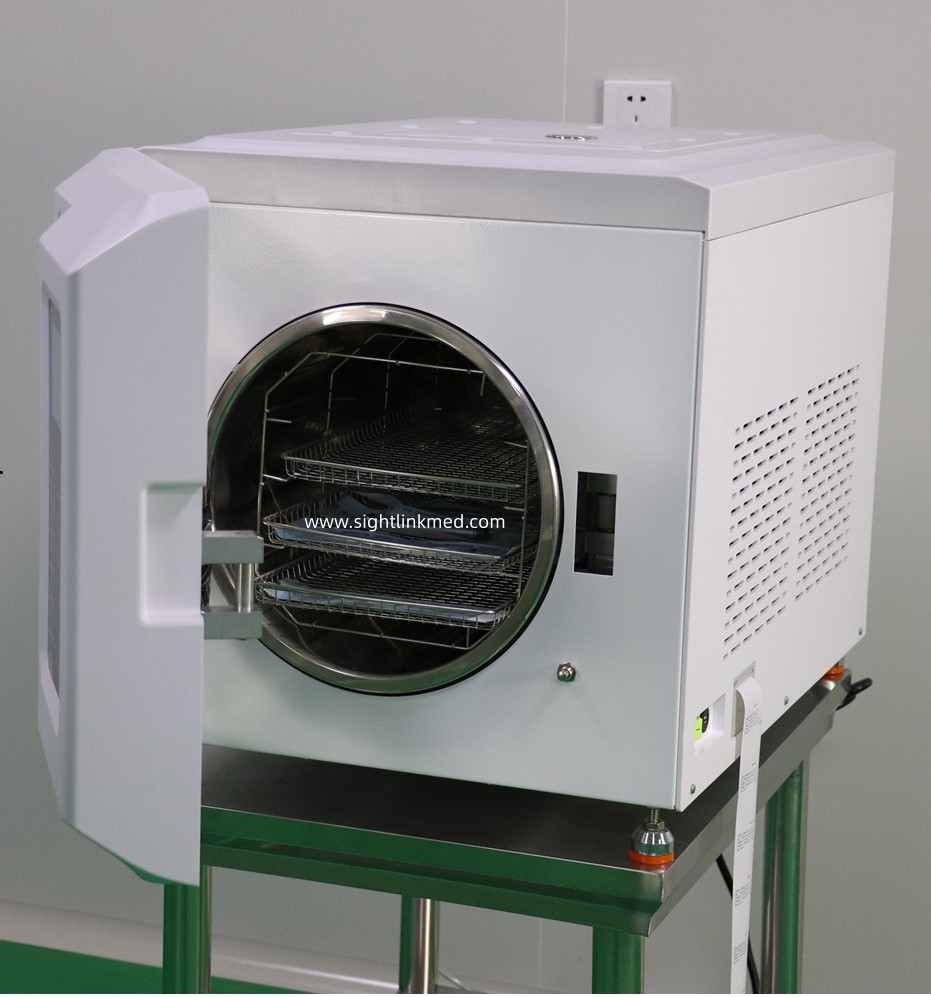

High-quality Portable and Automatic 45L Capacity Tabletop Stainless Steel Pre-vacuum Pressure Steam Sterilizer
The sterilizer uses microprocessor intelligent control, automatic door lock, man-machine interface, easy operation, safe and reliable.
Description
【Temperature display】 LCD display
【Microcomputer control technology】 The sterilizer uses microprocessor intelligent control, automatic door lock, man-machine interface, easy operation, safe and reliable.
【Pulsation mode】Microcomputer control automatically selects the number of pulsations according to the site conditions to ensure the coordination of temperature and pressure.
【Vacuum mode】 Three pre-vacuums to ensure faster heating and more complete sterilization.
【Safety valve】 When the pressure of the sterilizer reaches 240kPa ± 5kPa, the safety valve will automatically open to relieve the pressure.
【Overpressure protection program】 When the pressure in the sterilization chamber reaches 230 ± 5kPakPa, there is a prompt sound and the pressure can be automatically released.
【Air Leakage】 When the sterilizer is tested in various stages, the pressure increase rate should not be greater than 0.13kPa /min.
【Water Quality Monitoring】 With automatic water quality monitoring function.
【Dynamic pressure in sterilization chamber】 The pressure change in any 2s interval during the sterilizer cycle should not exceed 1000kPa / min.
【Vacuum pump】 Using a leather double-head oil-free vacuum pump;
【Pressure Sensor】 The built-in pressure sensor automatically detects the pressure in the cavity to ensure the accuracy of the pressure in the cavity.
【Temperature Sensor】 The built-in temperature sensor automatically detects the temperature in the cavity.
【Printer】 A micro-printer is used to print out the data every minute during the entire sterilization process, which can be
permanently saved.
【Sterilization mode】 respectively exposed equipment, packaged equipment, hollow fabric, rubber products, BD test, vacuum test.
【Automatic drying】 Powerful vacuum drying, suitable for different items drying needs; the remaining humidity of the equipment is<0.2%.
【Microcomputer control technology】 The sterilizer uses microprocessor intelligent control, automatic door lock, man-machine interface, easy operation, safe and reliable.
【Pulsation mode】Microcomputer control automatically selects the number of pulsations according to the site conditions to ensure the coordination of temperature and pressure.
【Vacuum mode】 Three pre-vacuums to ensure faster heating and more complete sterilization.
【Safety valve】 When the pressure of the sterilizer reaches 240kPa ± 5kPa, the safety valve will automatically open to relieve the pressure.
【Overpressure protection program】 When the pressure in the sterilization chamber reaches 230 ± 5kPakPa, there is a prompt sound and the pressure can be automatically released.
【Air Leakage】 When the sterilizer is tested in various stages, the pressure increase rate should not be greater than 0.13kPa /min.
【Water Quality Monitoring】 With automatic water quality monitoring function.
【Dynamic pressure in sterilization chamber】 The pressure change in any 2s interval during the sterilizer cycle should not exceed 1000kPa / min.
【Vacuum pump】 Using a leather double-head oil-free vacuum pump;
【Pressure Sensor】 The built-in pressure sensor automatically detects the pressure in the cavity to ensure the accuracy of the pressure in the cavity.
【Temperature Sensor】 The built-in temperature sensor automatically detects the temperature in the cavity.
【Printer】 A micro-printer is used to print out the data every minute during the entire sterilization process, which can be
permanently saved.
【Sterilization mode】 respectively exposed equipment, packaged equipment, hollow fabric, rubber products, BD test, vacuum test.
【Automatic drying】 Powerful vacuum drying, suitable for different items drying needs; the remaining humidity of the equipment is<0.2%.
Technical Parameters:
| Dimensions | (Length × Width × Height): 900 × 565 × 625mm |
| Liner size | (Diameter × Depth): 320× 620mm |
| Effective Volume | 45L |
| Outer box material | ABS material |
| Working temperature | 5℃～40℃ |
| Power | 3.5KVA |
| Weight | 108kg |
