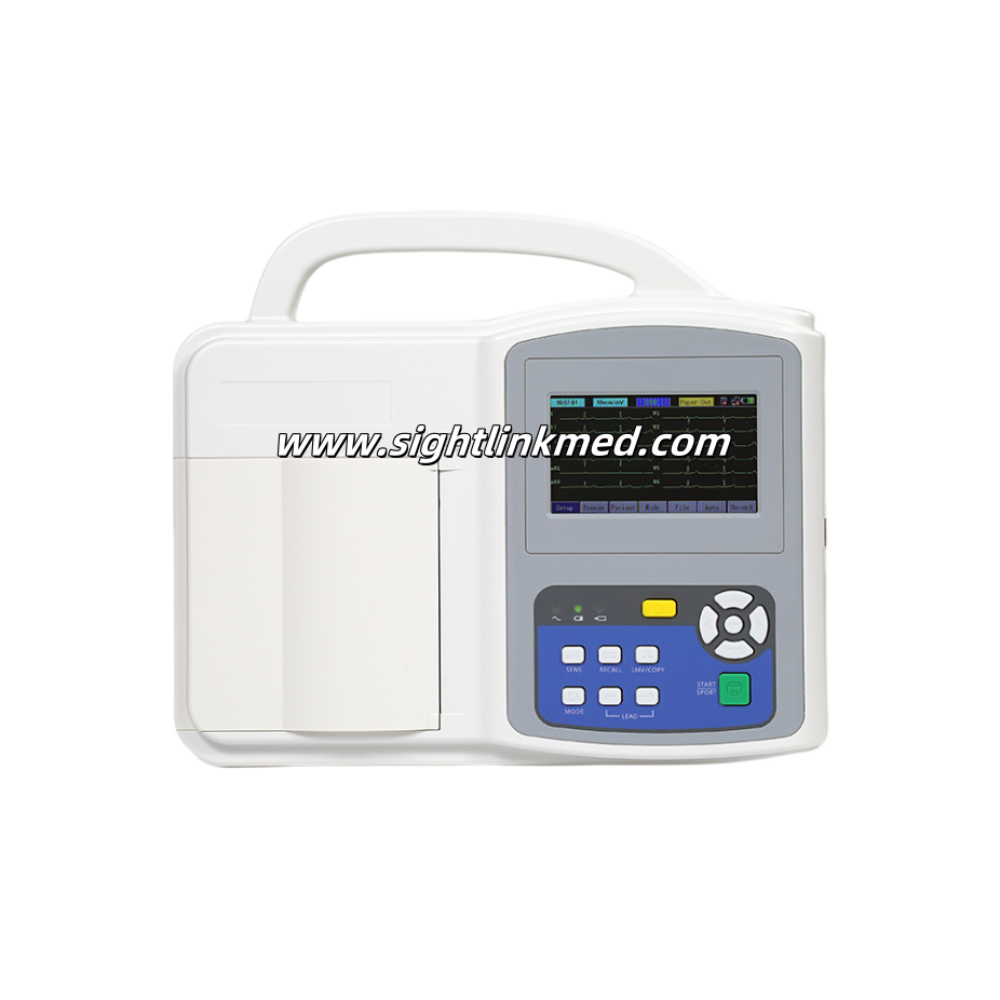

High Quality Medical Touch Screen 6 Channel Portable Ecg Machine

This Portable Ecg Machine Simultaneously 12 Leads Acquisition, Synchronous Record Details of 3 ECG Waveforms automatically waveform analysisreport out fully.

Description
Additional information

Description

Features:

●Complete digital design, High Resolution Thermal Printer

● Simultaneously 12 Leads Acquisition, Synchronous Record Details of 3 ECG Waveforms automatically waveform analysis report out fully.

● Full digital filter, High Resolution Thermal Printer, perfect ECG wave

● Both auto and manual mode are available.

● Match high-resolution color screen and user-friendly menu, touch-screen for option.

● AC.EMG interference avoiding baseline drift,

●AC/DC power supply built-in rechargeable Lion battery,support Uninterrupted Working Up to 3Hours without ACpower

● Slight key, support touch-screen input , single button operation

● Standard output/input interface,flexible output printpattern : six channel ,six channel + any rhythm lead+Support continuous 60 seconds of waveform in selectedlead, automatically analyze and revive the waveform, usefulto diagnose arrhythmia.

● Support lead-fail detector

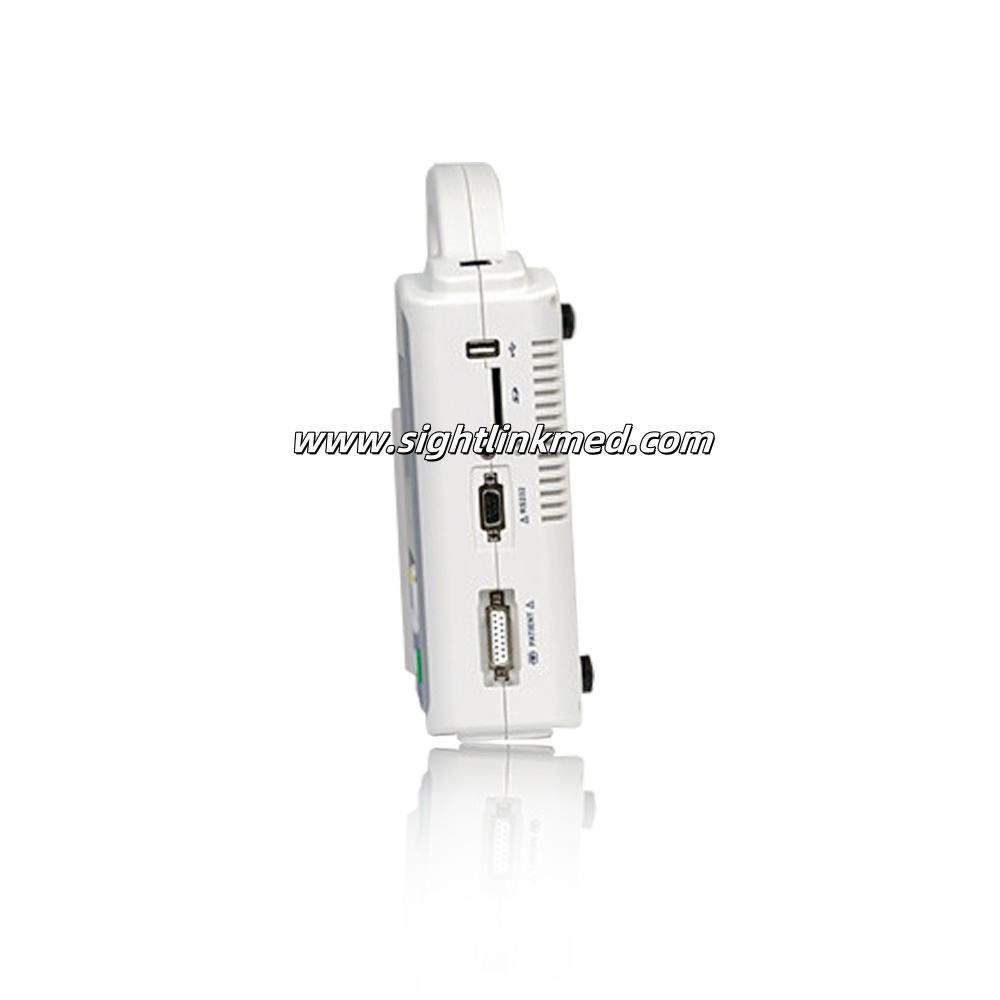

● Data storage & transmission -SD card , convenient for data exchange -USB printer interface , support character, symbols, waveform output -Support communicate with PC via RS232 and Ethernet

Dispaly	4.3” or 5.7″color screen
Language	Chinese、English
Product weight	1.4Kgs
Operation temperature	5°C-40°C

Additional information

Sensitivity	2.5, 5,10,20mm/mV
Noise level	<15μVp-p
Display	4.3 inch TFT LCD with touch panel
ECG lead	12 leads
DC	built-in rechargeable Lion battery
Color	Whtie
Size	310mm(L)260mm(W)85mm(H)
