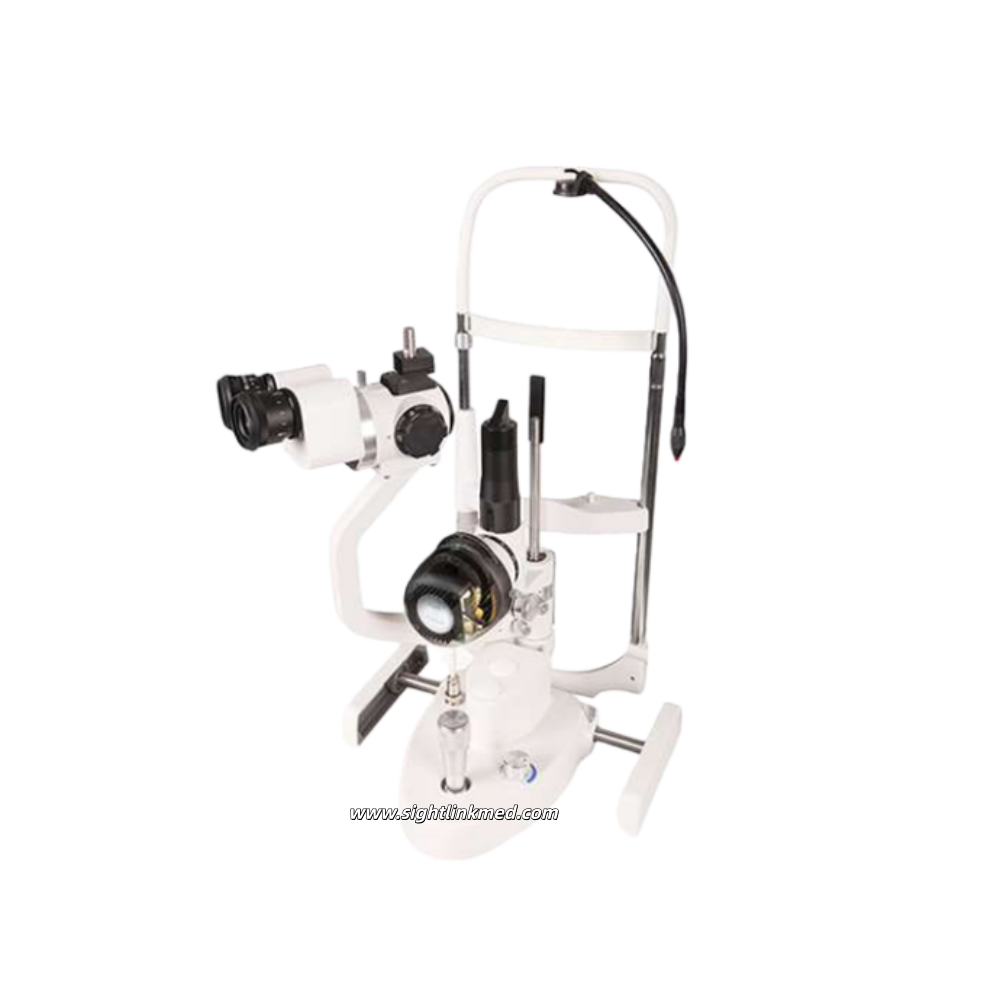

High Quality Medical Optical Ophthalmology Digital Slit Lamp Microscope with 5 Steps LED Bulb

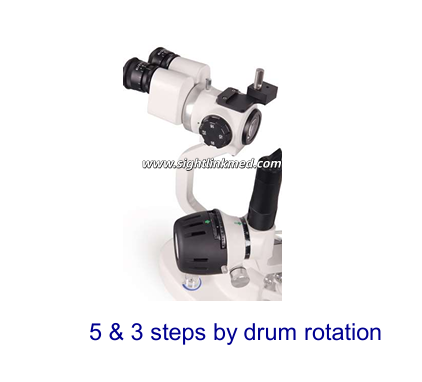

The Slit lamp Microscope has 5 & 3 steps by drum rotation.
Description
Features:
*Magnifications change by drum rotation
*Lightweight, Single hand operated
*Imported Schott optics from Germany
Accessories:
*Applanation Tonometer
*Measuring Eye Piece
*Trihedron Lens
*Gonioscope
*Funduscope
*Aspheric Lens
*Retinal Lens
*Teaching Tube
*Beamsplitter
*Camera adapter
*CCD adapter
| Microscope type | Galilean system |
| Magnification changer | Revolving drum (5 steps) |
| Total magnification | 6X, 10X, 16X, 25X, 40X (or 10x, 16x, 25x) |
| Ocular magnification | 12.5 X |
| Ocular field | φ18mm |
| Inter pupillary distance | 52mm~78mm |
| Diopter adjustment | -6D~+6D |
| Object image field φ in mm | 34.7(6X), 22(10X), 13.5(16X), 8.5(25X), 5.5(40X) |
| Slit image width | 0~14mm continuous |
| Slit image length | 1~14mm continuous |
| Light source | 12V / 10W LED light bulb |
| Slit image radial range | 0~180° |
| Filters | Heat aborption, redfree(green), cobalt blue |
| Illumination fields (φ in mm:) | φ in mm: 0.5/ 3.5/ 8/ 14/ 1~14mm continuous |
| Illumination intensity | ≥50KLX |
