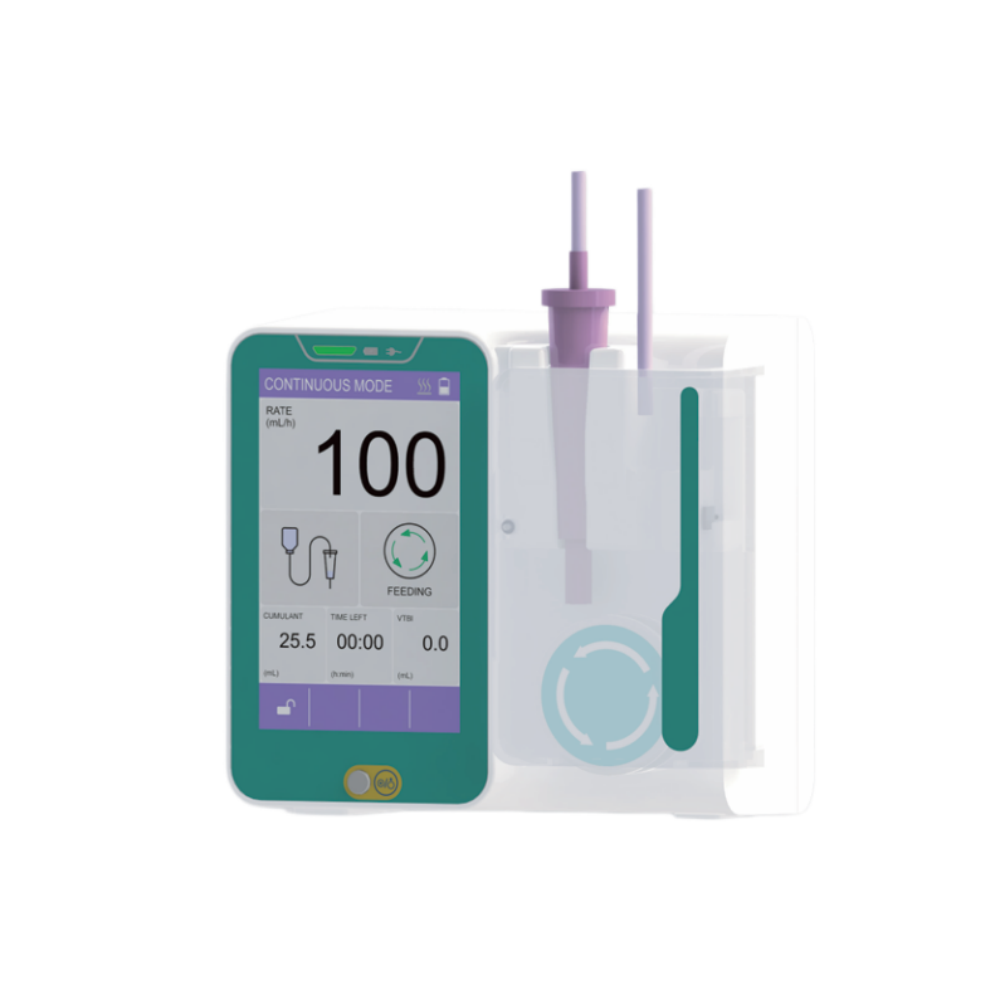

Handheld Medical Instrument Hospital Clinic Nutrition Equipment Enteral Feeding Pump
Touch screen, smart and light wide application ,Interface friendly operation easily to increase efficiency
Description
- Touch screen, smart and light wide application ,Interface friendly operation easily to increase efficiency
- Portable & International design with only 0.9KG
- Continuous Mode, Intermittent Mode, Program Control Mode
- Most parameters like night mode, LCD brightnees(9level),Alarm sound (9 level ),Occlusion, level, flushrate, bolus data etc. all can be modified according to clinical use in real time
- DPS, monitoring the pressure changes in real time for automatic water flush to prevent occlusion of feeding set
- 8 hours battery back up
- More than 14 groups of nutrition solution already programmed into the pump, and can be chosen accord-ing to clinical use
| Parameter Model |
EPC110 | EPC112 | EPC120 | EPC122 |
| Used for | Single Bag Enteral Feeding | Double Bag Enteral Feeding | ||
| Stackable | NO | 40±5°C | NO | 40±5°C |
| Set Compatibility | Open System | Close System | ||
| Feeding Accuracy | 5% after calibration | 5% | ||
| Range of Flow Rate | 1-800mh/h, step by 1ml/h | |||
| Range of VTBI | 0-9999ml, step by 1ml | |||
| Total Volume Infused | 0-9999ml,<100ml, step by 0.1ml ;≥100ml, step by 1ml | |||
| Event Log | YES | |||
| Feeding Time Preset | 00:01-999:59 (Hour: Minute) | |||
| Feeding Mode | Continous Feeding, Intermitant Feeding, Program Control Feeding | |||
| Intermitant Feeding Interval | 00:01-24:00 (Hour:Minute) | |||
| Intermitant Feeding Times | 2-99 can be adjusted, step by 1 | |||
| Prime/Bolus Rate | 1-800mh/h, step by 1ml/h, defaulted rate 800ml/h | |||
| Flush Rate | / | / | 1-800mh/h, step by 1ml/h | |
| Flush Rate | / | / | 10-50ml, step by 1ml | |
| Reverse Rate | 1-800mh/h, step by 1ml/h, defaulted rate 200ml/h | |||
| Water Interval | / | / | 00:01-24:00 (Hour:Minute) | |
| Occlusion Level | / | / | 1-11 level (20-120KPa) | |
| Auto-Flush Pressure Level | / | / | 1-9 level (20-100Kpa) | |
| Noise | ≤ 50dB (A),working on wooden surface and 1m distance | |||
| Visible & Audible Alarms | Occlusion (EPC120/122),Air in line(EPC120/122)，Completion , NearEnd , Feeding Mal-function ,Pause overtime, Warmer (EPC112/122)Low Battery , Battery Exausted , Motor Mal-function , AC Powerdisconnection ,AC Power connection Indication, Battery ChargingIndication, Battery Charging Full Indication | |||
| Dimension & Weight | 13cm*7cm*13cm,0.9Kg( Not including fixing lock) | |||
| Power Supply | AC: 100-240V,50Hz/60Hz; Class ll,type CF,IPX4 | |||
| Classification | Continous Feeding, Intermitant Feeding, Program Control Feeding | |||
