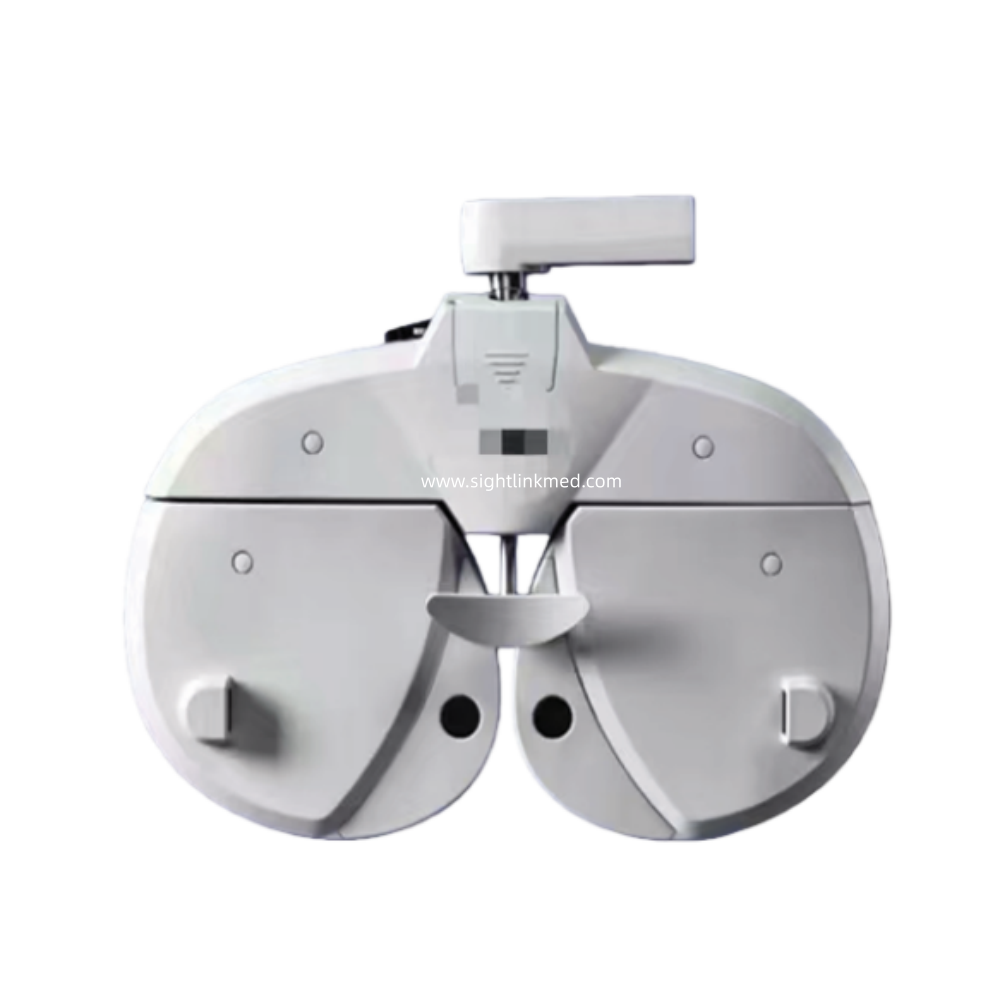

Factory Price Top Quality Medical Inspection Optical Equipment Auto Handheld Digital Vision Tester
Designed for professional clinical use, the product offers precise and stable performance.
Description
Features:
1.International design concept of combination offashionand personality.
2.Flexible, easy to operate, high precision, stable performance, durable.
3.All patient-contact areas are made of high-grade ABS material for easy cleaning and long-term hygiene.
4.Designed for professional clinical use, the product offers precise and stable performance.

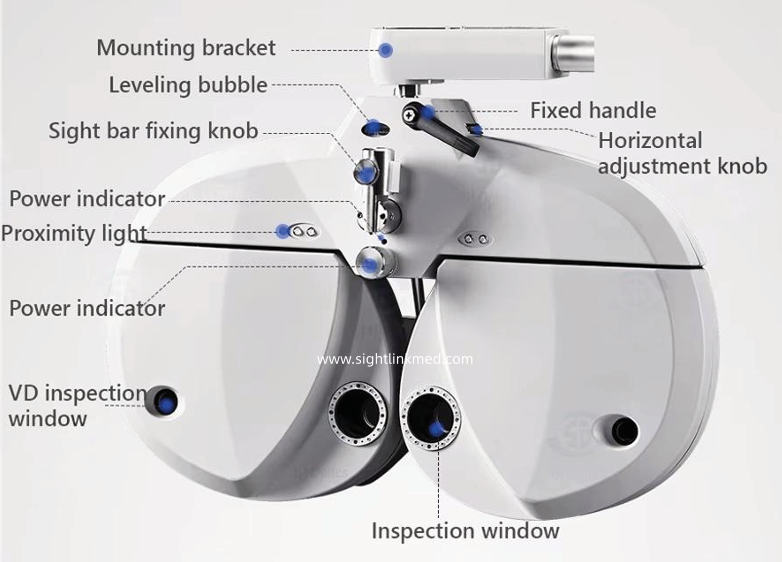

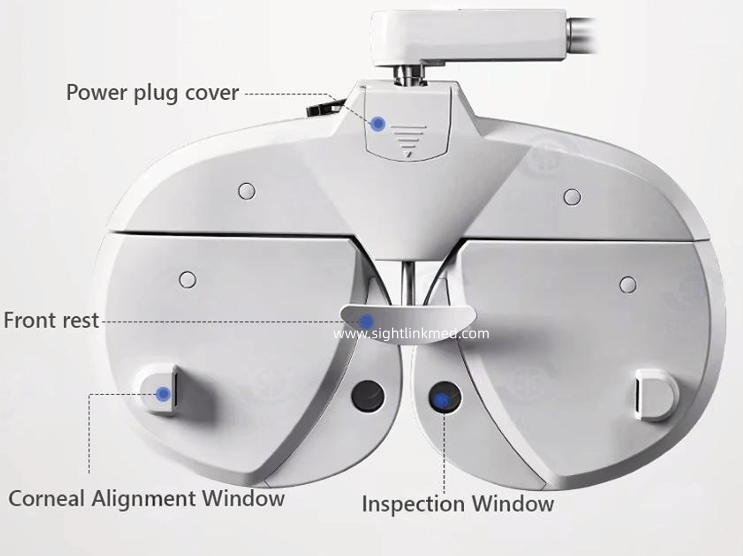

5.Equipped with a horizontal bubble level, adjustable headrest, and ergonomic patient support frame, it ensures accurate alignment and comfortable refraction testing.
Specification
I.Basic technical parameters 1.Spherical lens:-29.00~+26.75D(Step:0.12D/0.25D/0.5D/1D/2D/3D)
2.Cylindrical lens:-8.75~8.75D(Step:0.25D/0.5D/1D/2D/3D)
3.Cylinder Axis:0~180°(Step: 1/5/15/30/45°)
4.Pupil Distance Far: 48-75 mm(Step: 0.5/1.0mm)
5.Rotary Prism:0~20 A(Step:0.1 Δ/0.5 Δ/1 Δ/2 Δ/3 Δ)
6.Crossed Cylinder: Crossed Cylinder 0.25D/0.50D
7. Double cross cylinder (separating prism)
8.Prism base:0-360° 1°、5°(Prism base can be optionally labell edhorizontally or verticaly)
ll. Auxiliary lenses
1. Pinhole lens φ 1mm
2. Markov lever Right eye (horizontal Markov lever), left eye (vertical Markov lever)
3.Red-green flter right eye(red), left eye(green)
3.Red-green flter right eye(red), left eye(green)
4. Polarizing flter right eye(135 °, 45 °), left eye(45 °, 135 °)
5. Separation prism right eye (6 Δ BU), left eye (10 Δ B)
6.Fixed Cross Cylinder Jackson Cross Cylinder 0.50D, Axis fxation 90 °
7.Vision 32
| Spherical lens | -29.00~+26.75D(Step:0.12D/0.25D/0.5D/1D/2D/3D) |
| Cylindrical lens | -8.75~8.75D(Step:0.25D/0.5D/1D/2D/3D) |
| Cylinder Axis | 0~180°(Step: 1/5/15/30/45°) |
| Pupil Distance Far | 48-75 mm(Step: 0.5 /1.0mm) |
| Rotary Prism | 0~20 A(Step:0.1 Δ/0.5 Δ/1 Δ/2 Δ/3 Δ) |
| Crossed Cylinder | Crossed Cylinder 0.25D/0.50D |
| Prism base | 0-360° |
| Host size | 390x110x310mm |
| Flat size | 247x179x4.68mm |
| Tablet resolution | 2860 1600 |
| Flat screen | 9 inches |
| Voltage | AC 100-240V 50/60Hz |
| Power | 90W |
| Weight | 14kg |
| Packing size | 600x450x450mm |
| Packaging material | Carton box |
