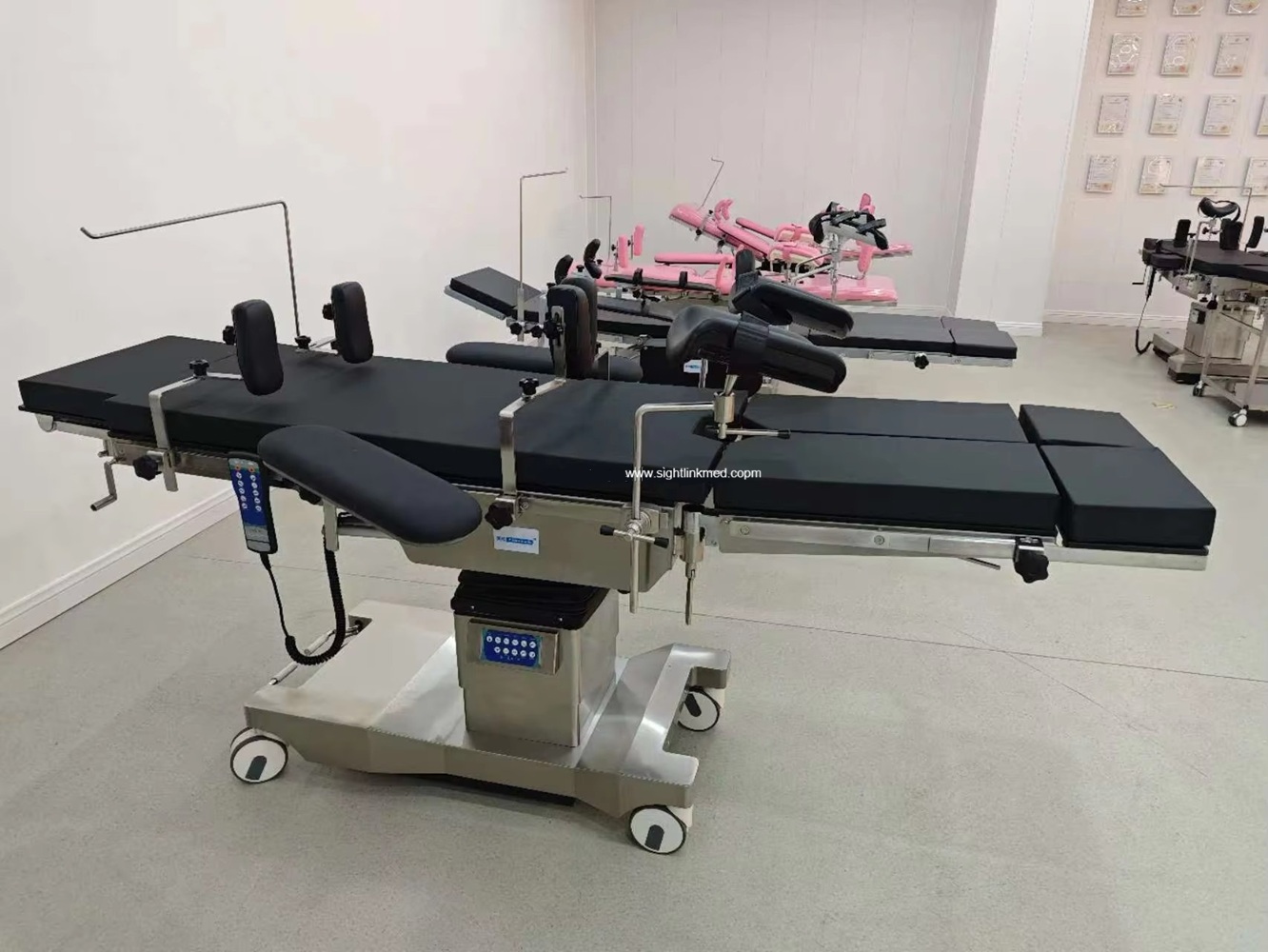

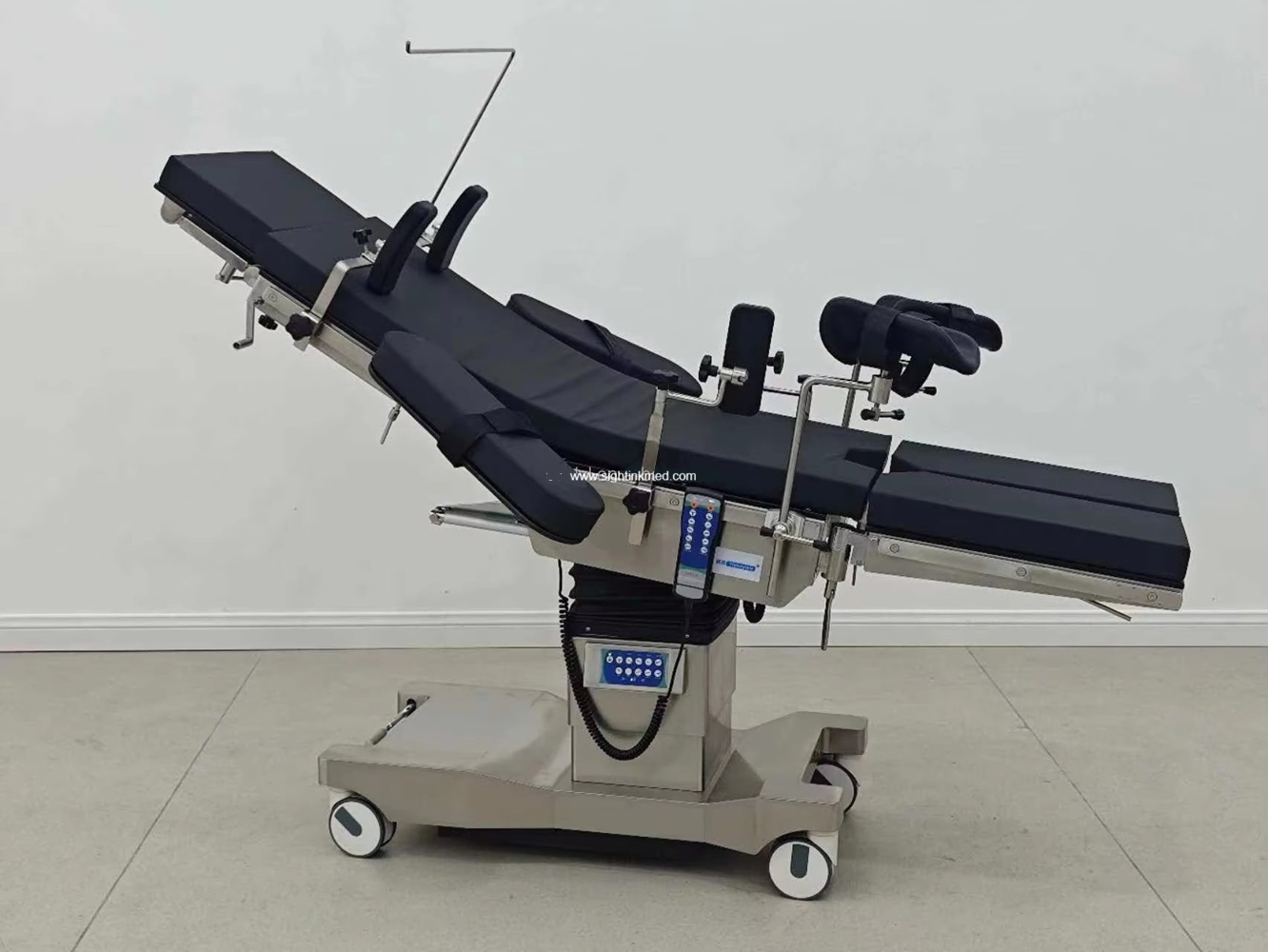

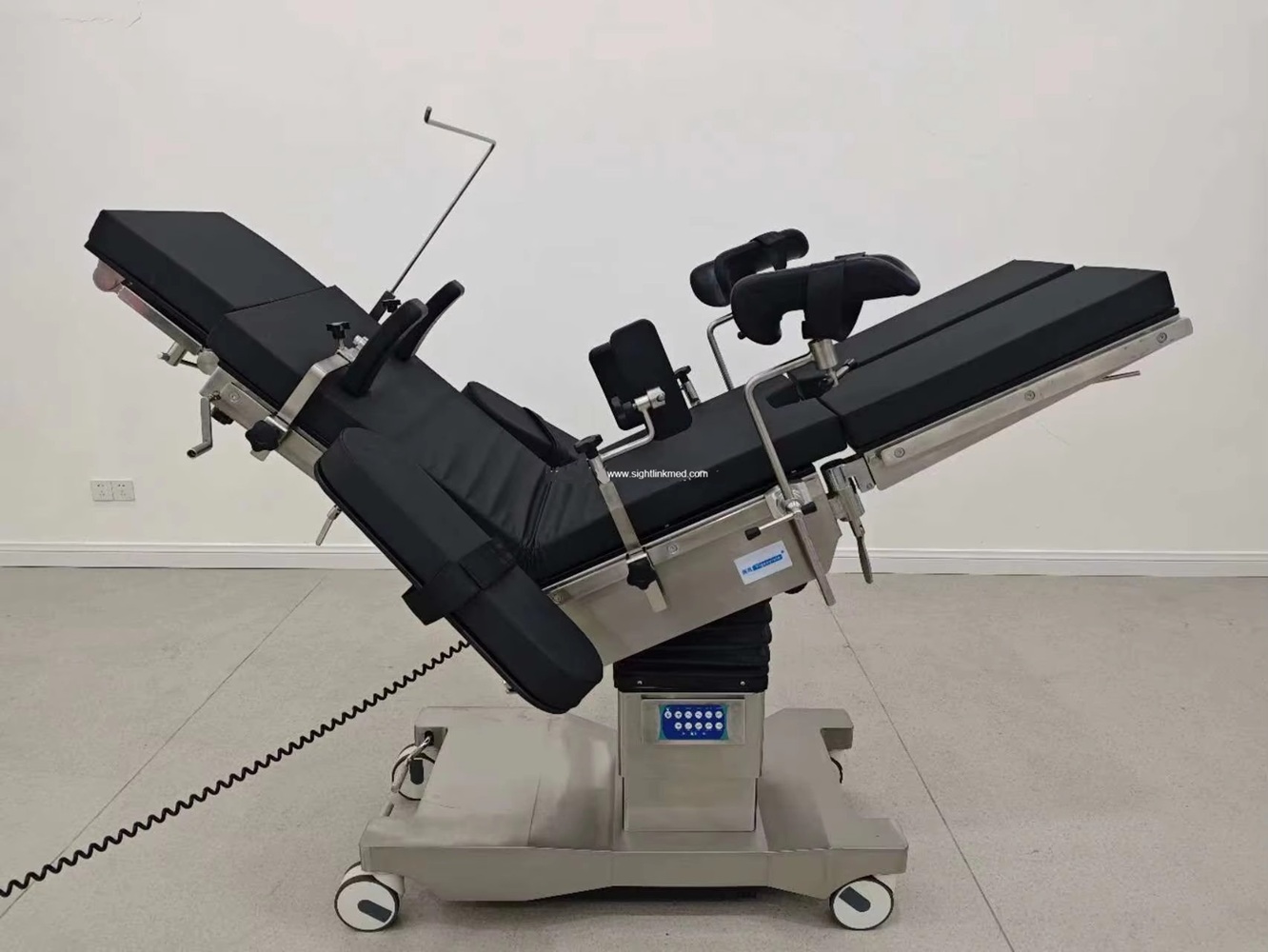

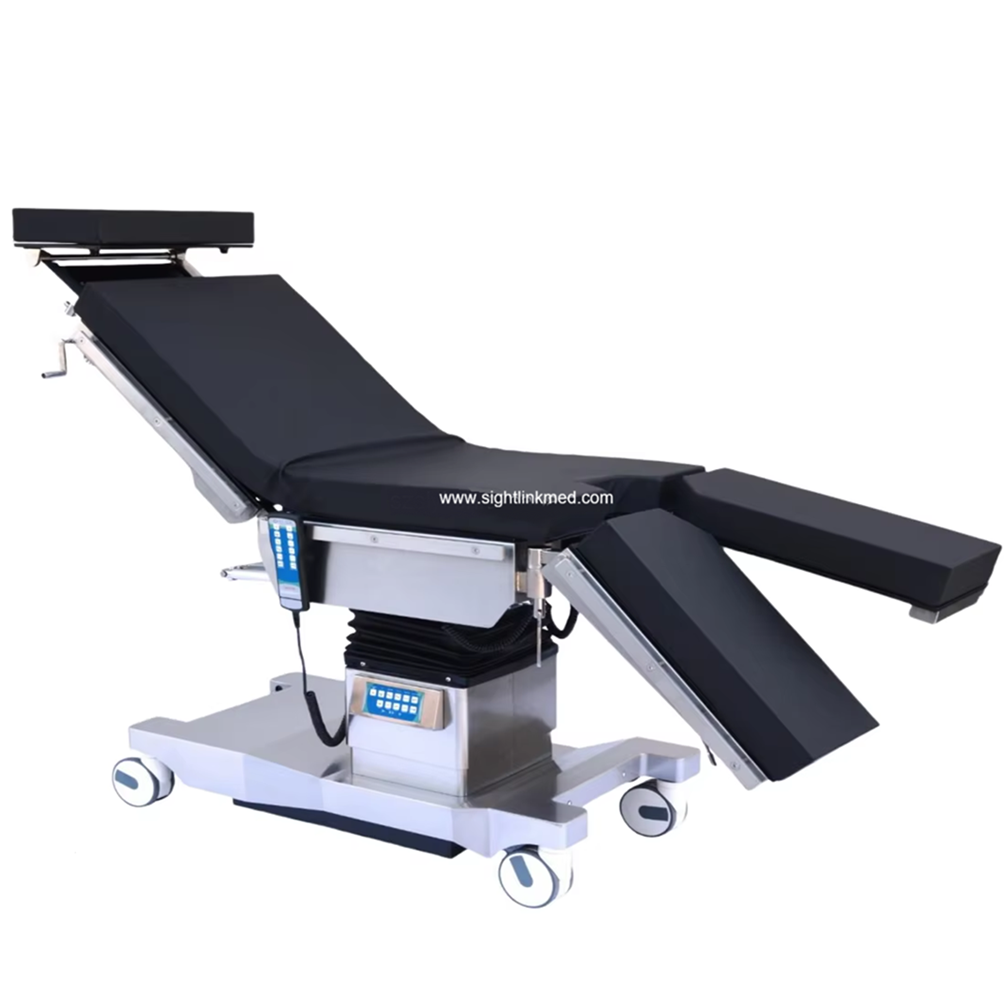

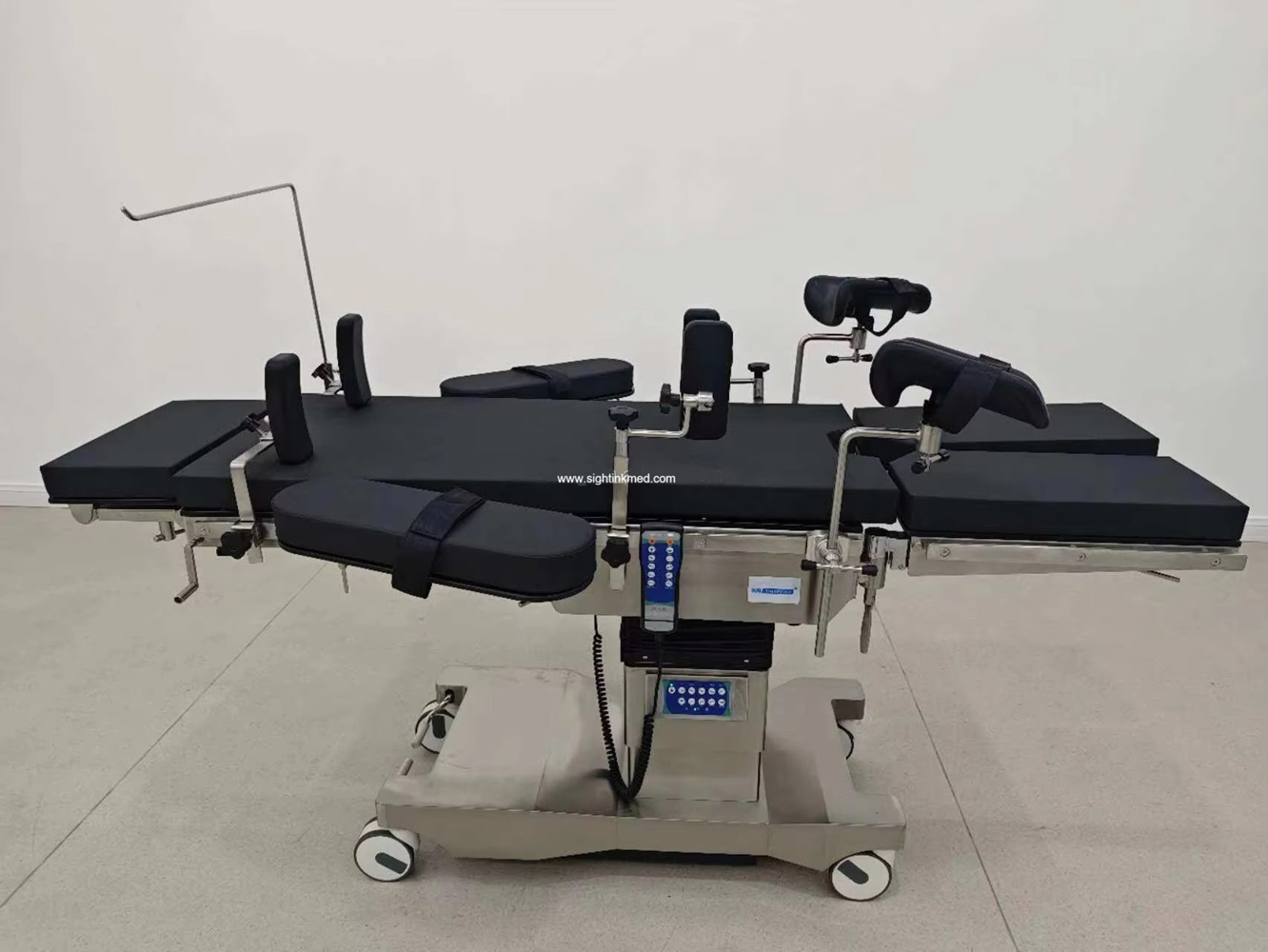

Electric Five Function Hospital Multifunctional Operating Theater Table Electric Surgery Operating Table
Hospital Equipment Multifunctional Operating Theater Bed Electric Surgery Operation Table
This surgical bed is used for the surgeries of head, neck, chest, abdomen, perineum, limbs, obstetrics, ophthalmology, otolaryngology and orthopedics, etc.
All posture adjustment,including the table height adjustment, forward and backward, left and right titling back board folding and tabletop vertical translation are all controlled by keys operation and fueled by the electro-push rod device.
Description
Performance description：
1. The product is suitable for surgery, gynecology, urology, otolaryngology, and orthopedics.
2. The table frame, side rail, base cover and column cover are all made of SUS304 stainless steel.
3. The table is divided into four sections: head ,back (including waist bridge), hip and leg section; The tabletop is made of high-strength composite material with X-ray transmission; It can be cooperated with a C-arm to take photos.
4. The table lifting, backward and forward tilt, left and right tilt, folding up and down of the back plate, and translation are all controlled by the electric push rod.
5. The product has double control systems: hand-held l controller and column fixed controller, when one fails, the other can be enabled .
6. The head board adopts double-joint structure, and it can be adjusted to make the head board and table surface horizontally parallel.
7. The leg plate is folded up and down with gas spring control.
8.The handle shakes make the built-in waist bridge lift up and down.
9. German TENTE central control silent casters.
10.The mattress is made of high-grade memory sponge pad, with a thickness of ≥6cm, which is antibacterial, easy to clean and corrosion-resistant; It has antistatic and decompressive effects, it can also prevent the patient from having bedsores during long time surgery..
11. The battery can support 10 times of full-cycle position adjustments without AC power supply.
12. The static load of the whole machine is 200kg.

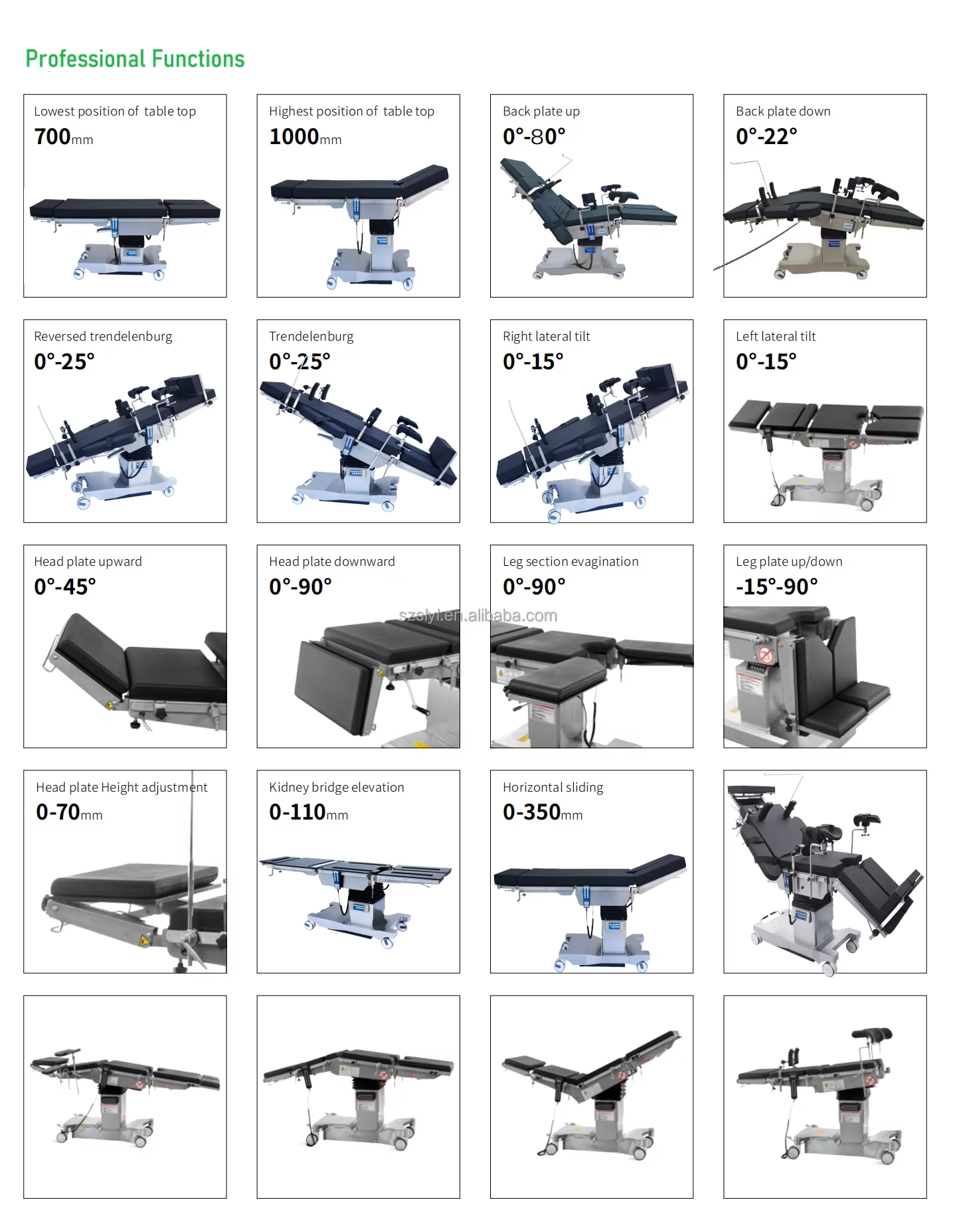

Specification:
| Table length | 2100mm |
| table width | 550mm |
| lifting | 700-1000mm |
| Forward tilt | ≥30° |
| Backward tilt | ≥25° |
| Left and right tilt | ≥15° |
| Back board (up/down): | 80°/17° |
| Head board (up/down) | 45°/90° |
| Waist board lifting adjustment range | ≥120mm |
| Leg board downwards | ≥90° |
| outreached | ≥90° |
| Longitudinal translation | ≥350mm |
| Configuration list | 1. main bed; |
| 2. anesthesia protective screen; | |
| 3. a pair of shoulder support; | |
| 4. a pair of armrest; | |
| 5. a pair of body support ; | |
| 6. a pair of leg support; | |
| 7. a pair of oot plate ; | |
| 8. a set of mattress; | |
| 9. hand-held controller. |
We have various mdoels of hospital Operation tables. Please contact us for details.
