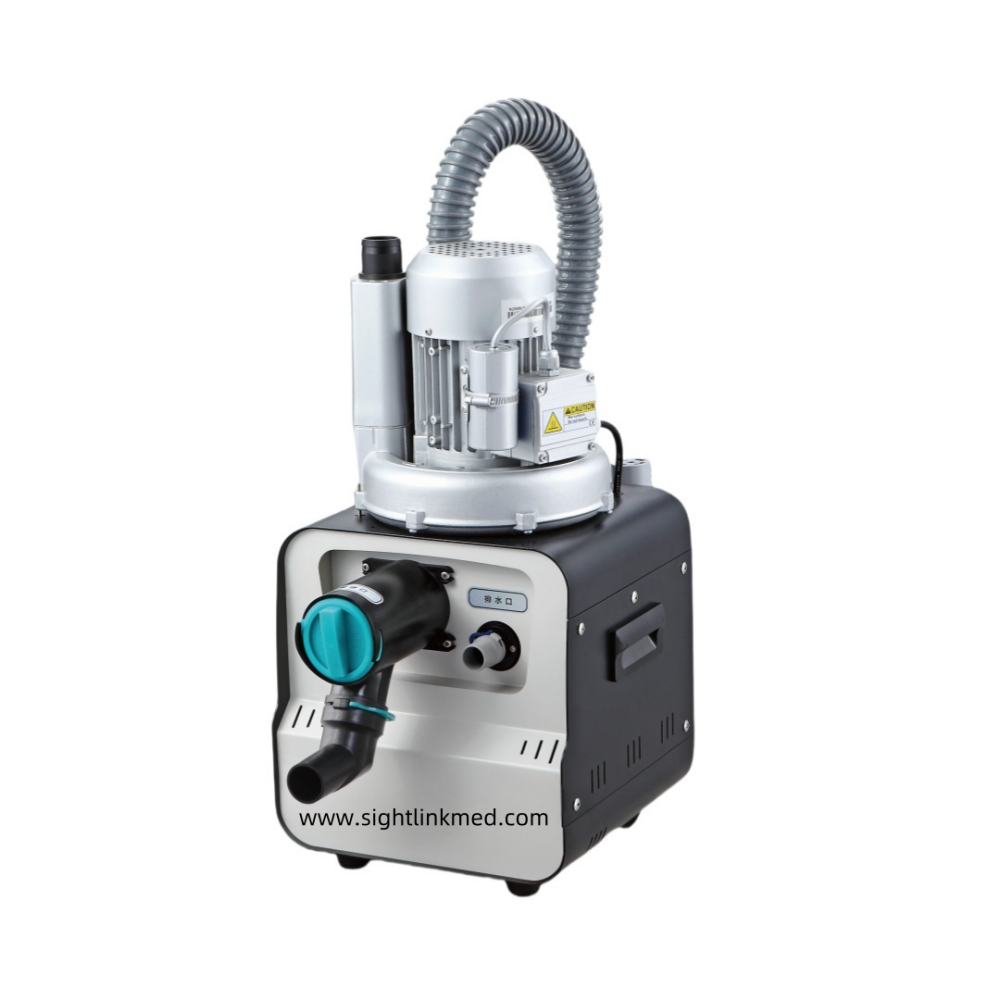

Dental Chair Vacuum Pump Dental Suction Dental Vacuum Pump 750W Dental Suction Machine Vacuum System Support

Adopt width voltage and double frequence, motor with protection leveI P55(insulation grade F) as drive, accomplish turbine circulation suction power, lower noise, higher pressure,larger flowing.

Offer the constant suction power for treatment.



    Description

    Future:

    1. Eficient separation,Compact structure,Low use-cost
    Let air and liquid separate in the small room.Separation system and vacuum pump is connected in the same central driving sharft,don’t need install separation system in the dental unit,don’t need any other traditional system’s working cost—as water pump.

    2. Strong power
    Adopt width voltage and double frequence, motor with protection leveI P55(insulation grade F) as drive, accomplish turbine circulation suction power, lower noise, higher pressure,larger flowing.Offer the constant suction power for treatment.

    3. Regulation and colling
    Built-in auxiliary air valve, not only regulate suction power of system,but also ensure inside cooling of pump.

    4.Corrosionr esistance
    Separation system adopt high grade engineering plastics,corrosion resistance, long use-life time.

    5. Two stage sepatation system
    Innovative two stage separation system, have higher foam tolerance,ensure out-air without any water,avoid pump damage.

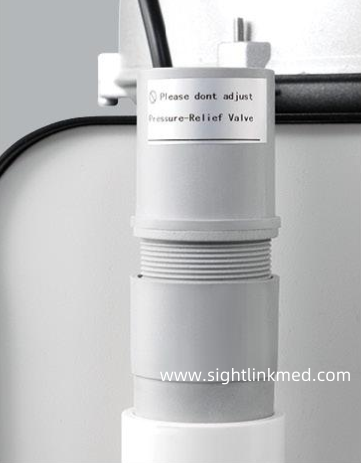

    6.Smooth suction power,small vibration Built-in auxiliary airvalve(Pressure-Relief Valve), not only ensure soomth suction power,but also ensure inside cooling of pump.
    Model
    Sightlink-750L
    Power supply
    AC 220V
    Frequency
    50Hz
    Current
    4.1A
    Rotate speed
    2800r/min
    Noise
    67dB
    Max vacuum
    -12Kpa

    Additional information

    Voltage

    220V

    Pump Power

    750W

    Dimensions

    49*31*66cm

    Net Weight

    26kg

    Rotate speed

    2800r/min

    Noise

    67dB

    Max vacuum

    -12Kpa

    Current

    4.1A

    Frequency

    50Hz
