China Made Operation Microscope Ophthalmology for Ophthalmic Surgery Ophthalmic Operation Microscope YZ20P5
| Specifications: | |
| Eyepiece Magnification | 12.5× |
| Objective Lens | f=200 |
| Working Distance | 190mm |
| Magnifications for Main Microscope | 5.3x, 8x, 12x |
| Diameter of Field | φ37mm, φ25mm, φ16.7mm |
| Diopter Adjustment | ±7D |
| Pupil Distance | 50mm～80mm |
| Maximal Resolution | 100LP/mm |
| Illumination Source | 12V/100W, medical cold reflection halogen lamp |
| Illumination Type | 6°+0°Coaxial cold light source illumination |
| Coaxial Illumination | ≥30000lx |
| Reaching Radius of Arm | 870mm |
| Adjustable Vertical Range | 700mm～1100mm |
| Fine Focusing Range | 30mm |
| Input Voltage | AC220V±22 V / 50Hz±1Hz, AC110V±11V /60Hz±1Hz |
| Power | 120VA |
| Fuse | AC250V T1.25A , AC125V T2.5A |
| Electrical Safety Standard | Executive Standard: GB9706.1-2007, type I |
| Packing Volume | 0.2m3, 1carton |
| Total Weight | 41kg |
Description

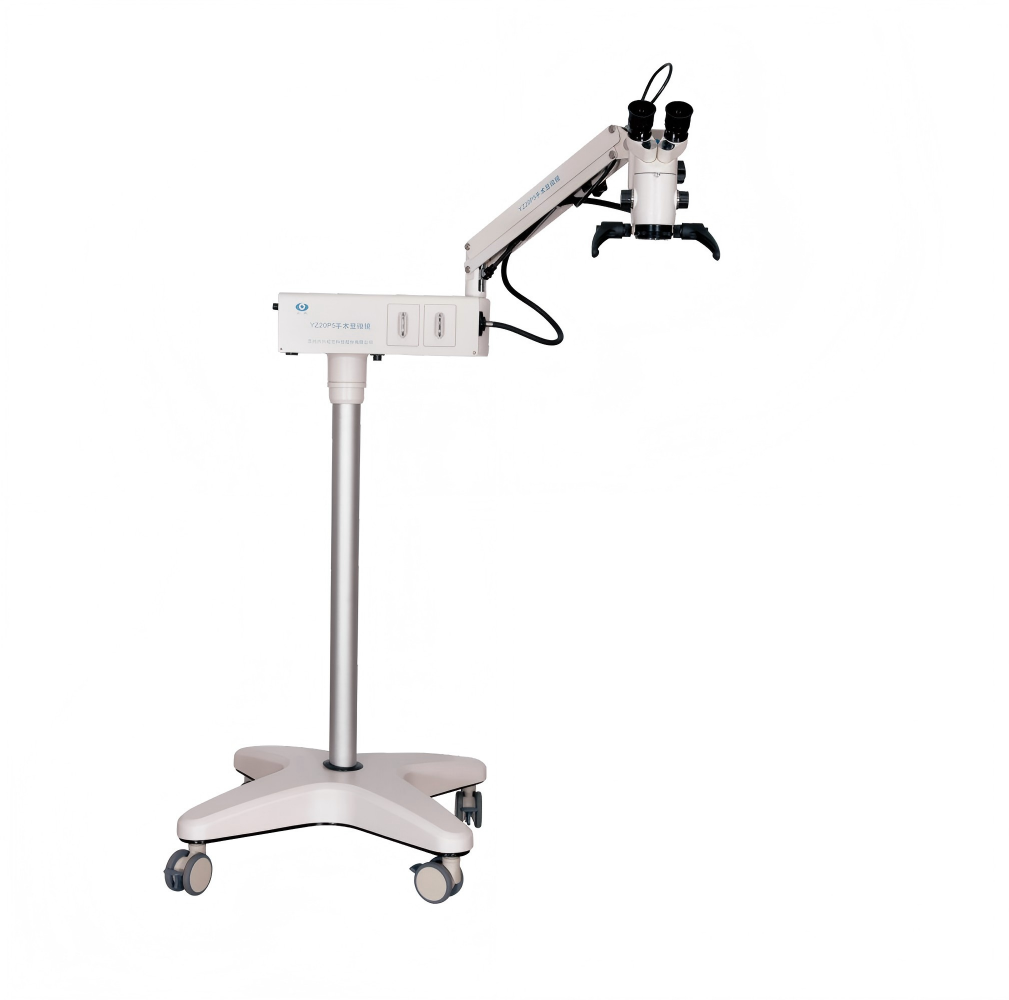

| Operation Microscope Ophthalmology | |
| Model: YZ20P5 | |
| Portable Style | |
| The product is a simple coaxial illumination operation microscope for one surgeon. It is portable, compact and can meet the requirements of general ohthalmology operations, usually applied in mobile hospital. | |
| Characteristics: | |
| · All the lenses are multi-coated, transmissivity enhanced, mildewproof and anti-reflective. | |
| · The microscope can focusing by foot-control, it has three steps magnification (or five steps) and has a good field depth and bino-combination. It can cater the requirements for cataract operation. | |
| · Optional objectives: f250/f300/f350f/f400. | |
| · Column stand can be reflitted to holding stand.It can also be customized according to various operation requirements. | |
