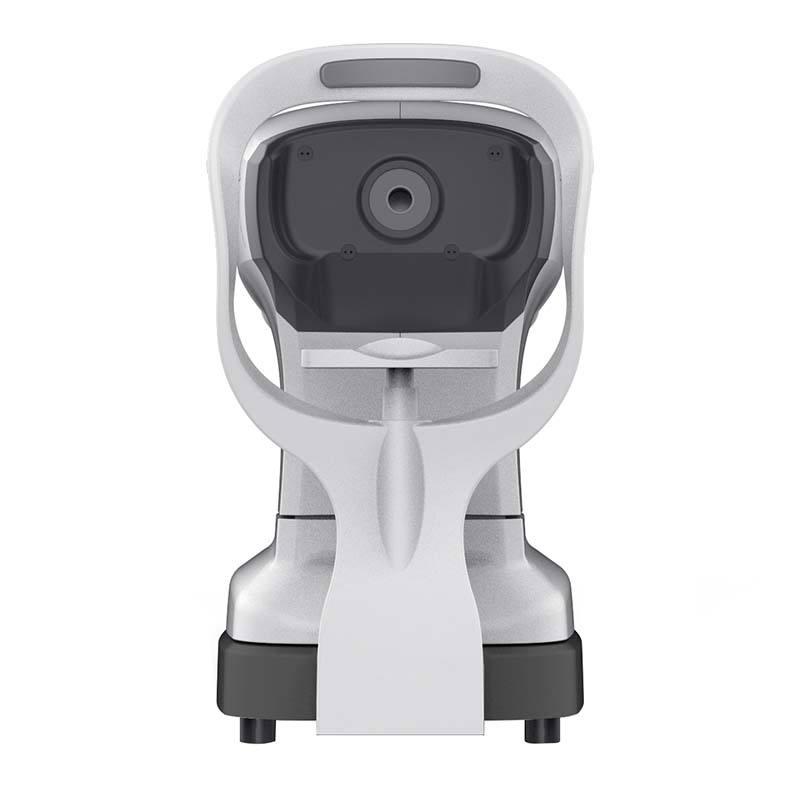

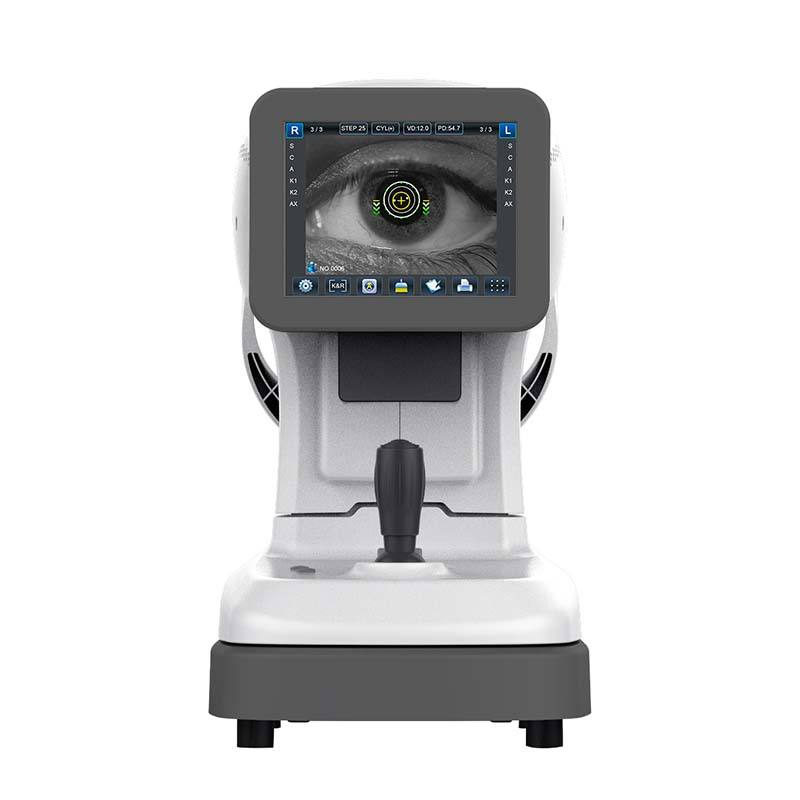

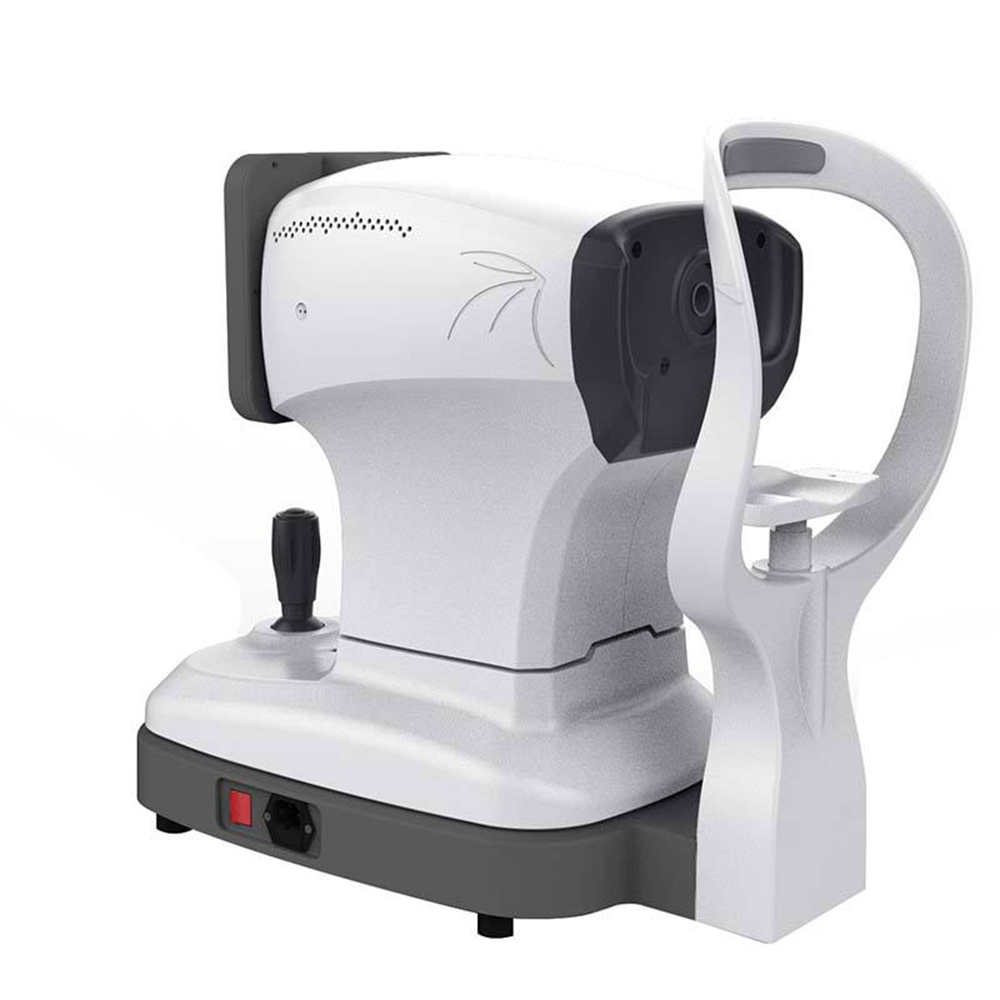

ARK-4000 Automatic Measurement Autorefractometer Optical Optometry Auto Refractometer and Keratometer
The world’s most advanced Hartmann principle auto refractor keratometer
The measurement accuracy error is between 25 degrees
Description
|
Range of measurement |
Sphere
|
-20~+20D(VD=12) 0.12D/25D step
|
|
Cylinder
|
-10~+10D 0.12D/25D step
|
|
|
Axis
|
0°~180° (1°step)
|
|
|
PD
|
10-85mm,1mm step
|
|
|
VD
|
0mm,12mm,13.75mm
|
|
|
Min Pupil Size
|
2.0mm
|
|
|

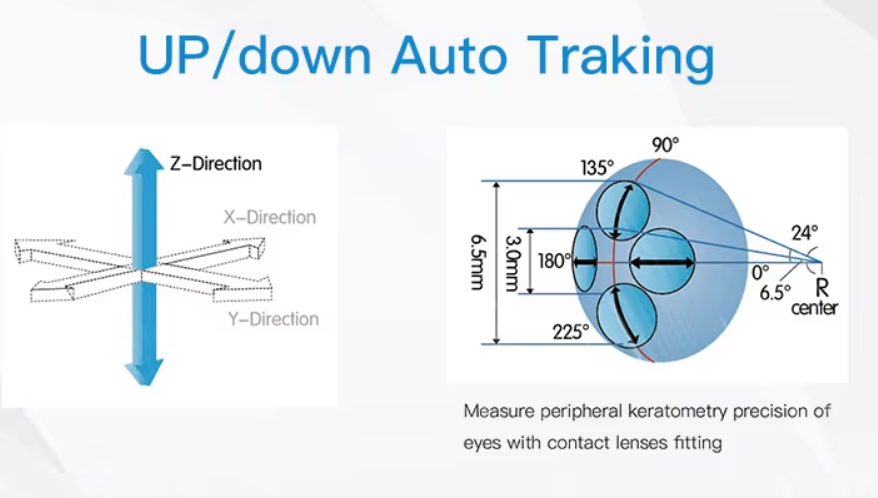

Keratometry |
Corneal apex distance
|
0.0, 12.0, 13.75, 15.0
|
|
Spherical mirror degree
|
-20.00D ~ + 20.00D (VD = 12mm, 0.01,
0.06, 0.12, 0.25 units) |
|
|
Axis position
|
10 ~ 180 ° (1 ° unit)
|
|
|
Cornea diopter
|
33.00D ~ 67.0D (when the corneal equivalent
diopter is 1.3375) |
|
|
Cornea curvature radius
|
5.0 ~ 10.0mm (0.01mm accuracy)
|
|
|
Measure light energy
|
<30uw (ensure measurement safety)
|
|
|
Others
|

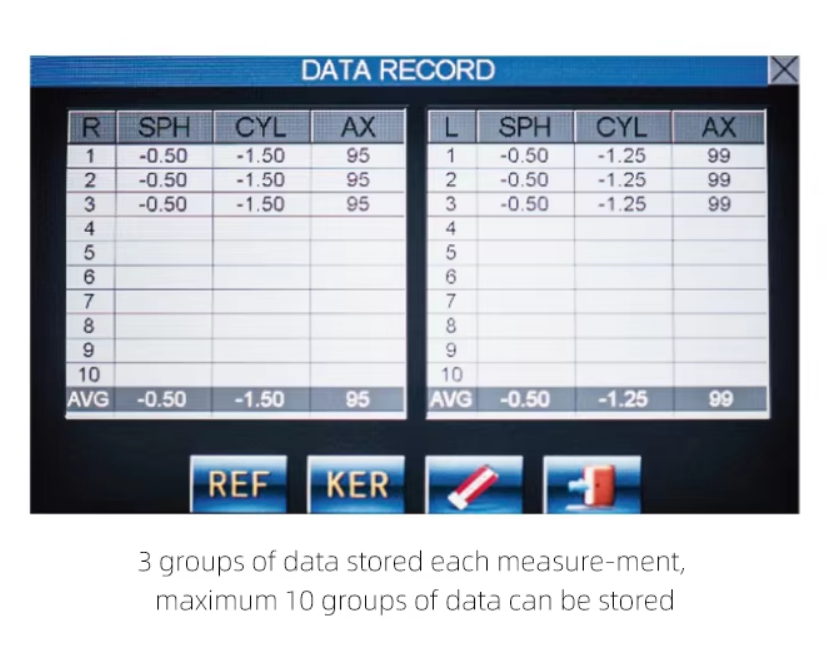

Stored data
|
10 measurements each
|
|

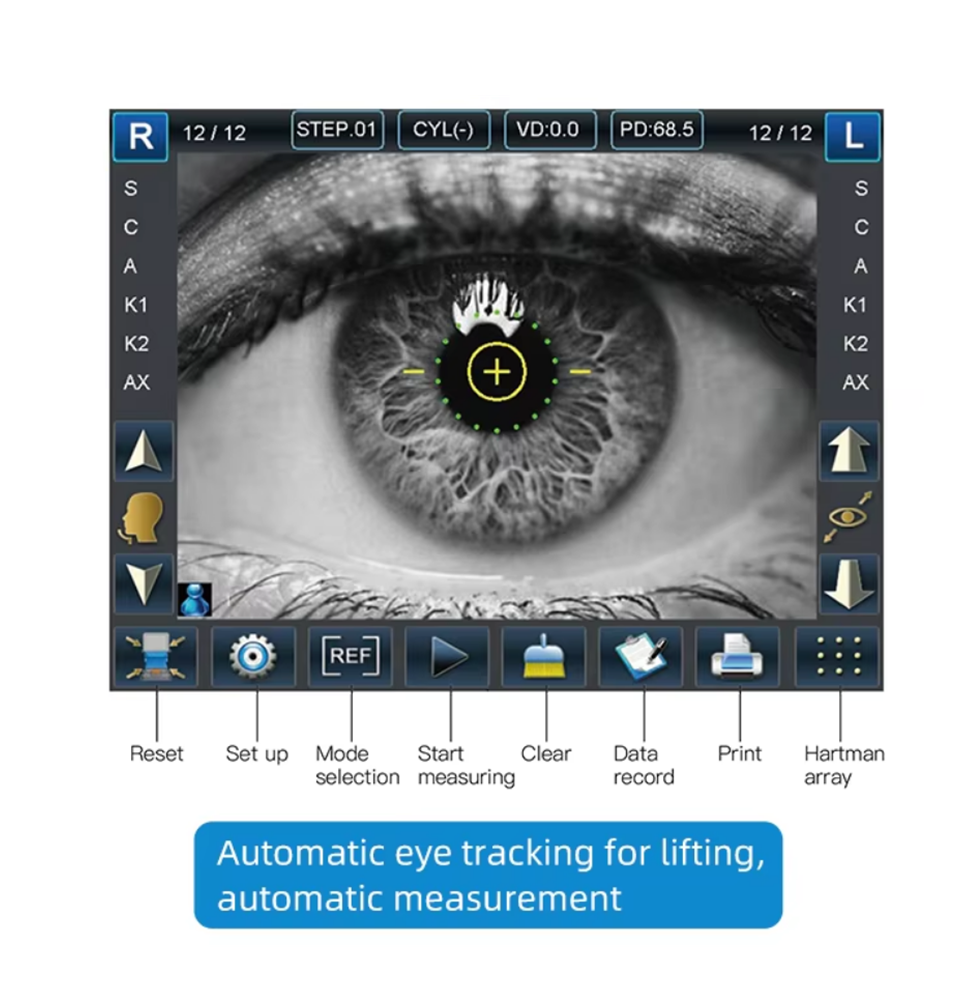

Display
|

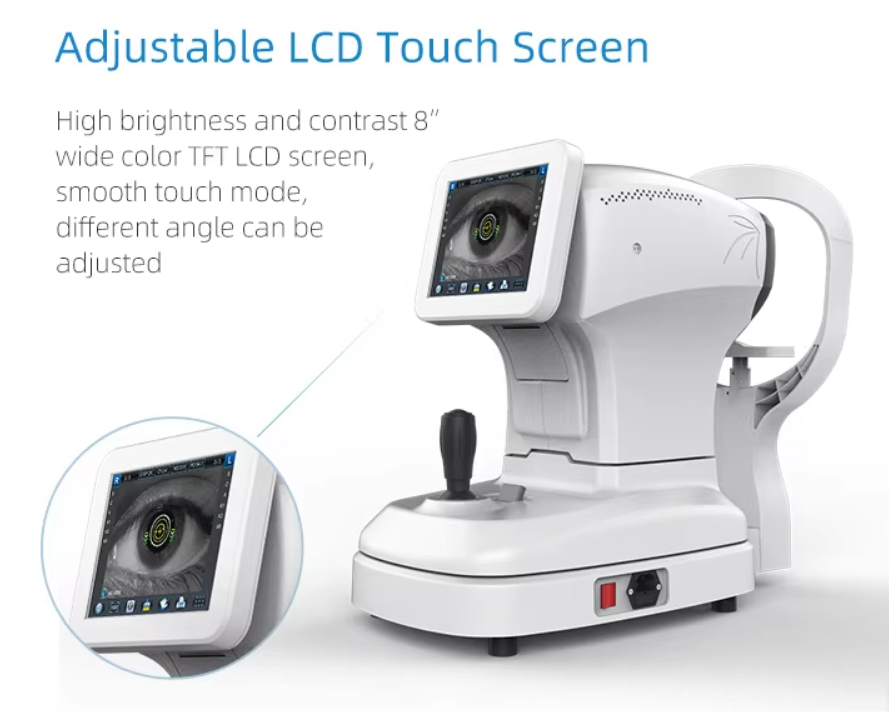

8-inch TFT touch screen (adjustable viewing angle)
|
|
|

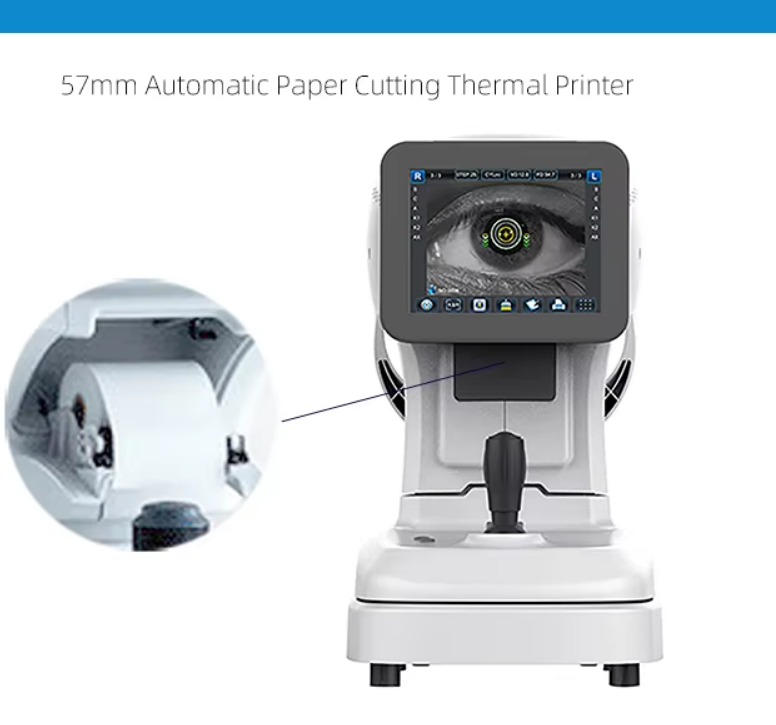

Print
|
57mm thermal printer
|
|
|
Power supply
|
AC 100 ~ 250V, 50 / 60Hz, wide power supply
|
|
|
Dimension
|
680mm x (width) 400mm x (height) 640mm
|
|
|
Gross weight
|
~26KG
|
