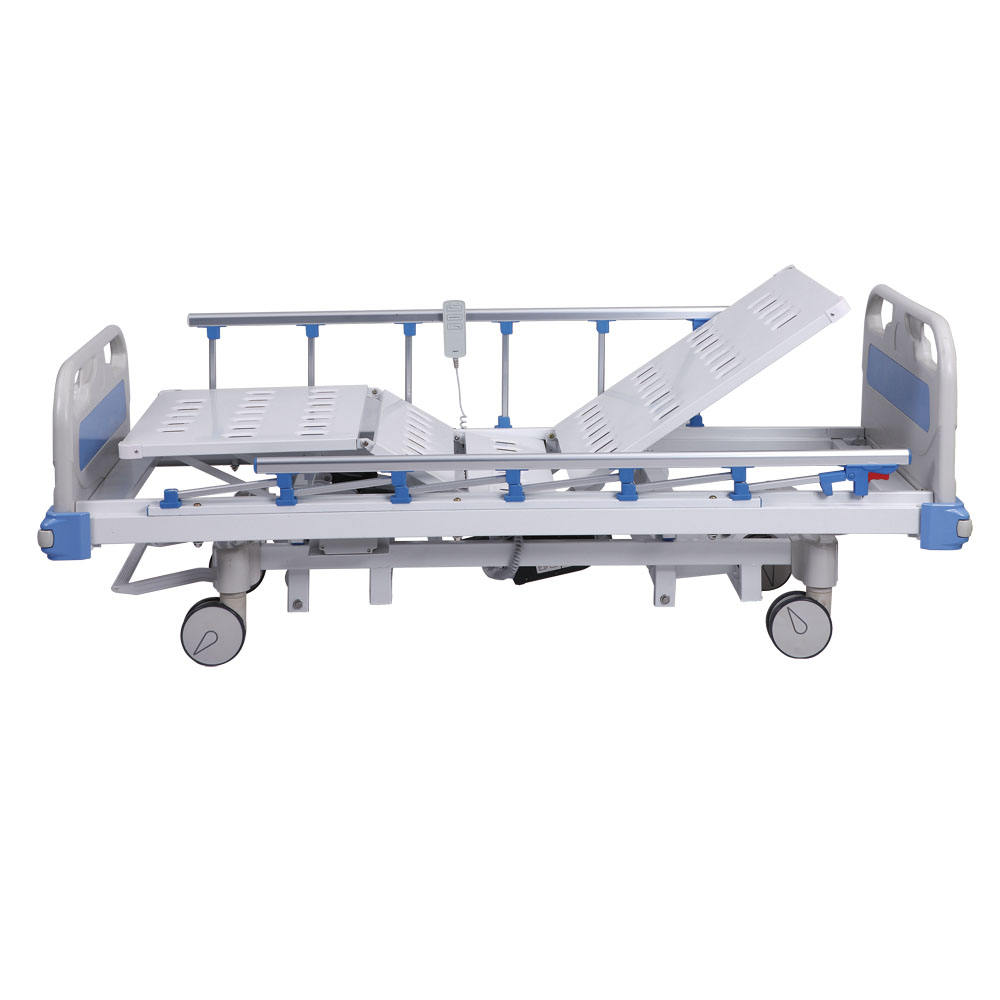

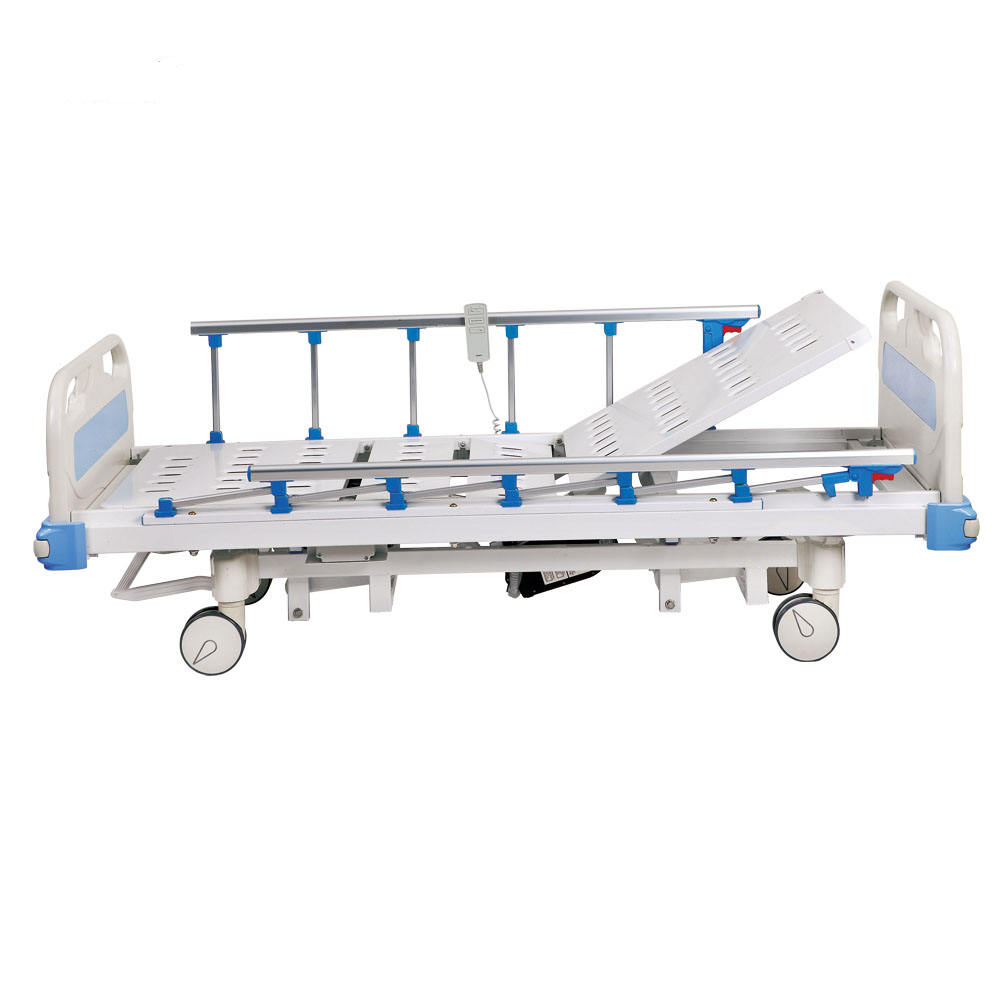

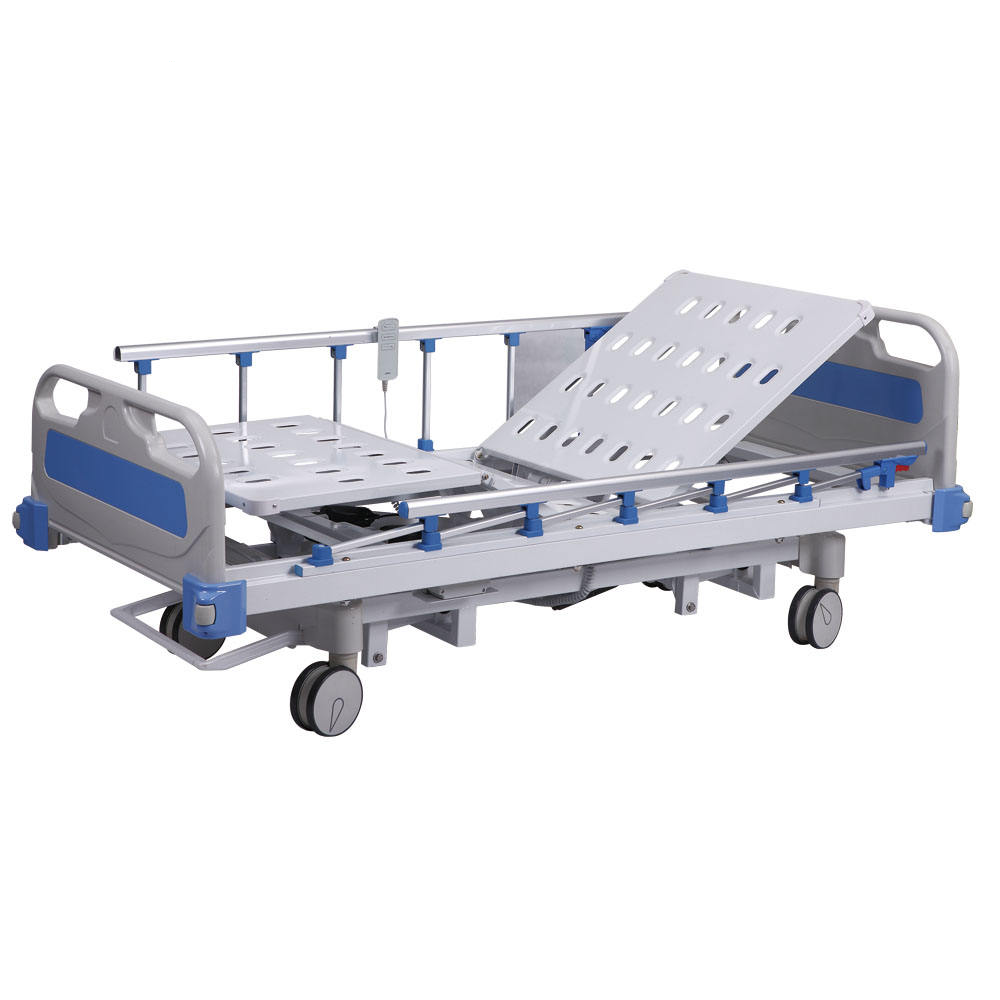

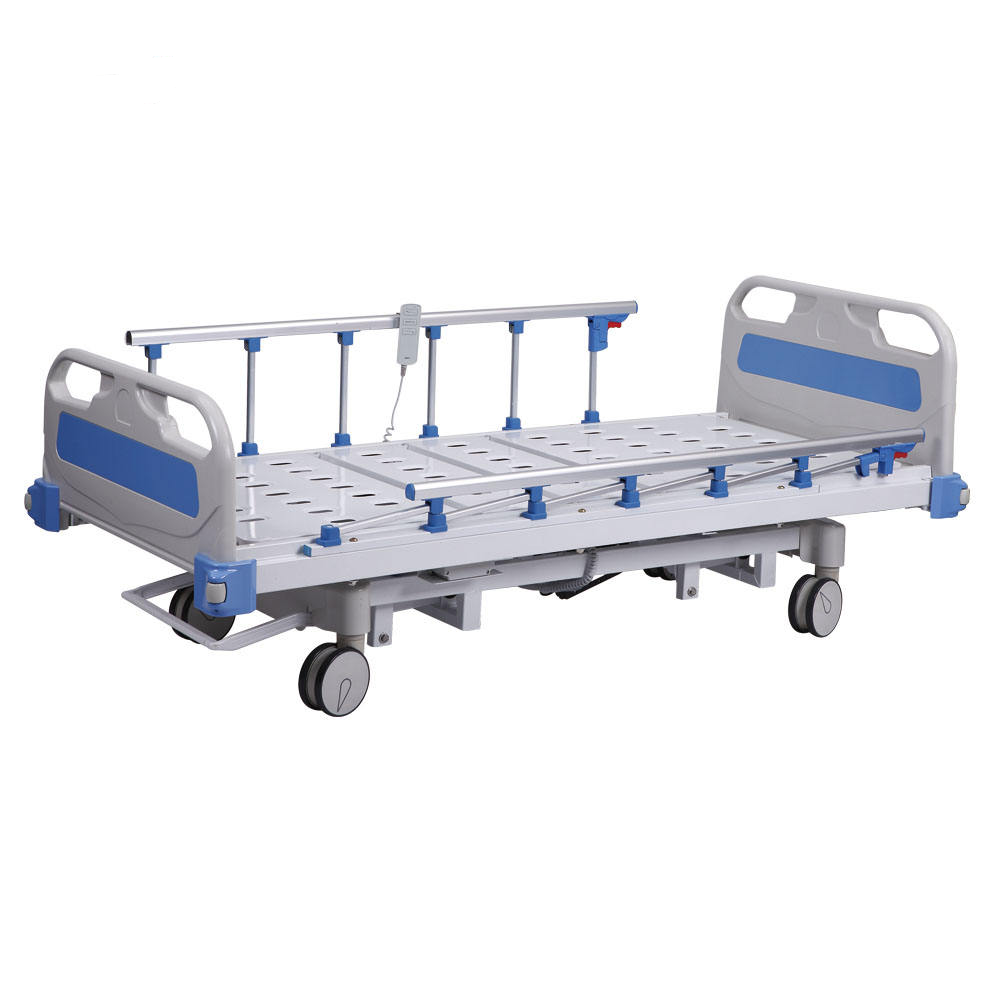

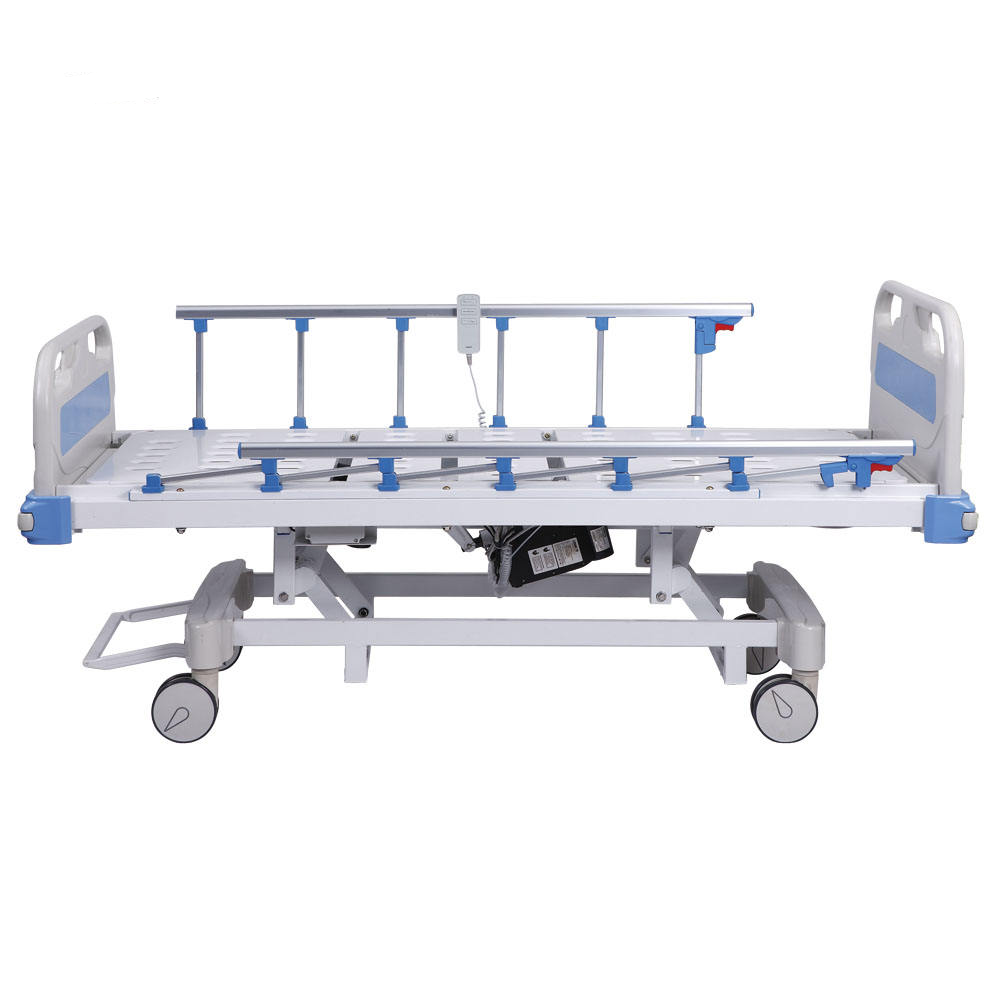

3 Function Folding Clinic Medical Furniture With Casters Stainless Steel Adjust Electric Patient Nursing Hospital Bed
1.Three functions controlled by remote control
2.Powder coated cold-rolled punching panel,with ventilation holes
3.Central locking castors controlled by brake pedal.
4.Top class PP&ABS plastic, with corner bumper
5.Collapsible 6 columns Aluminum alloy protective railing
Description
Technical Parameters:
|
Material:
|
Steel Framework, Top Class ABS&PP Plastic
|
|
Overall dimension
|
2150mm(L)*985mm(W)*500-710mm(H)
|
|
Bed board
|
1875mm(L)*770mm(W)
|
|
Hi–low
|
710-500mm
|
|
Back-rest
|
0 -70º±5º
|
|
Leg-rest
|
0 -40º±5º
|
|
Sitting part sinking
|
0 -10º±5º
|
|
Castor
|
Ф150mm universal (Central rake),
|
|
Package
|
Wooden case: 2270mm X 970mm X 495mm
|
|
N.W./ G.W.
|
117 / 126kgs
|

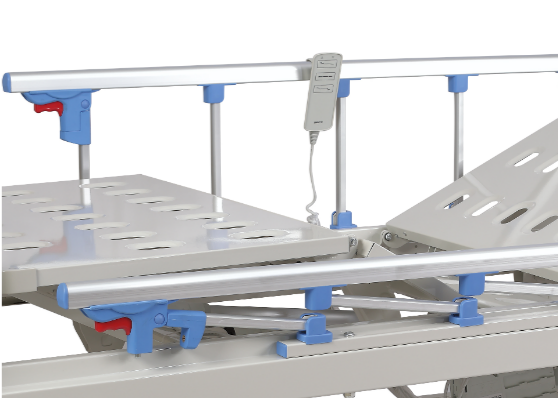

Guardrail
Collapsible 6 columns Aluminum alloy protective railing

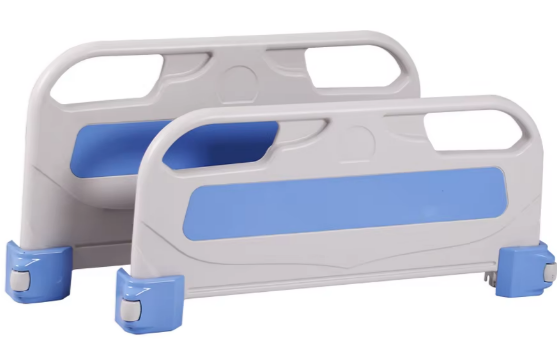

Head&Foot Board
Detachable PP material head&footboard, with corner bumpers at eachside to well protect the bed avoiddamage. Head board size:985*530mmFoot board size:985*440mm

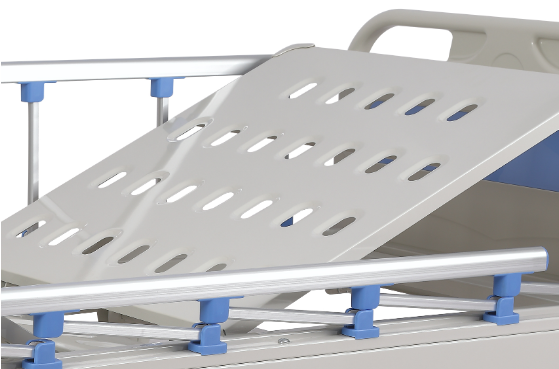

Bed Board
Powder coated cold-rolled punchingbed boards with ventilation holes
Castor
Central brake castor, dia: 150mm

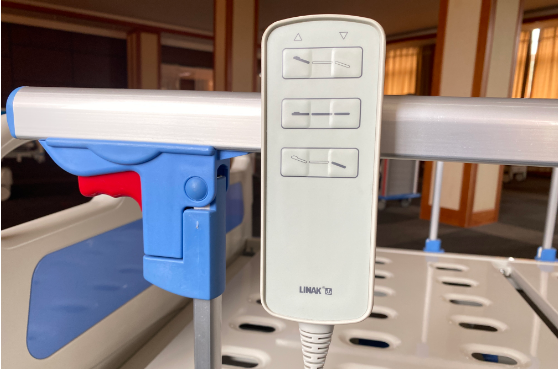

Linak Motors
Three functions adjusted by the remote controller from Linak motors
