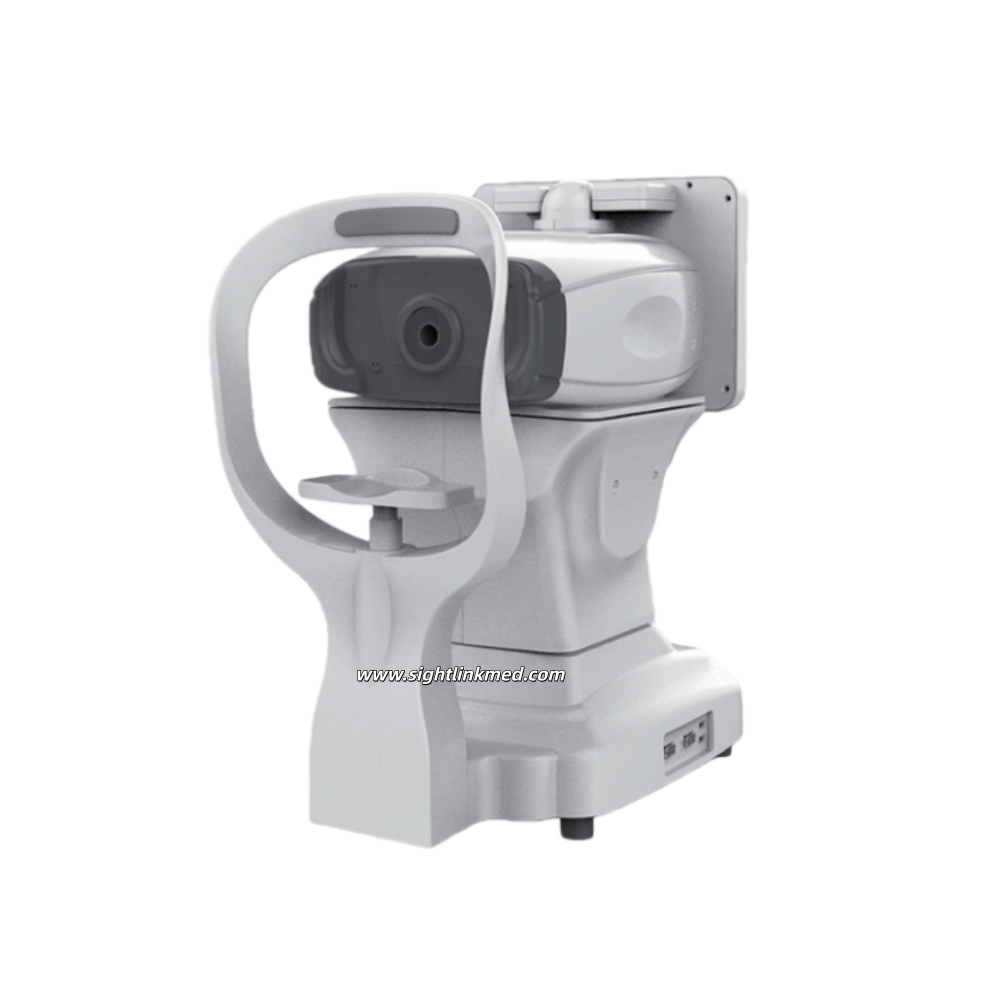

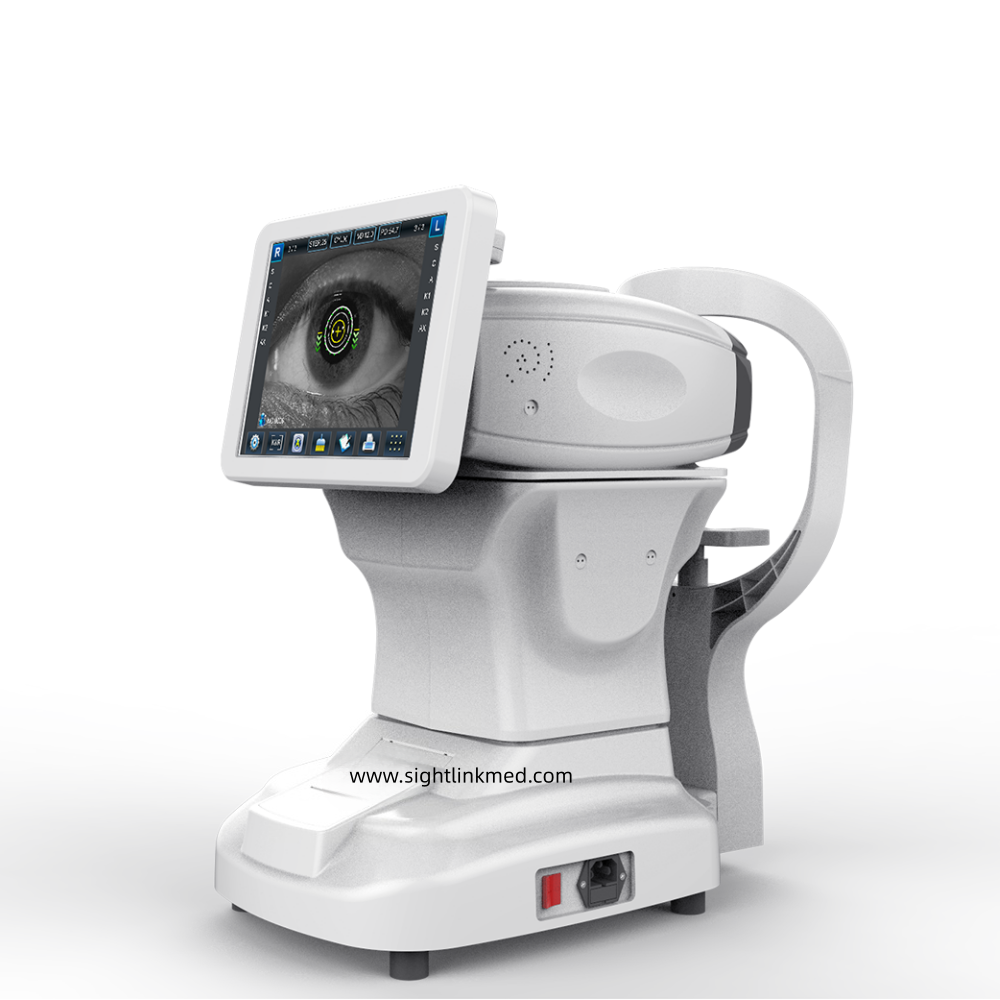

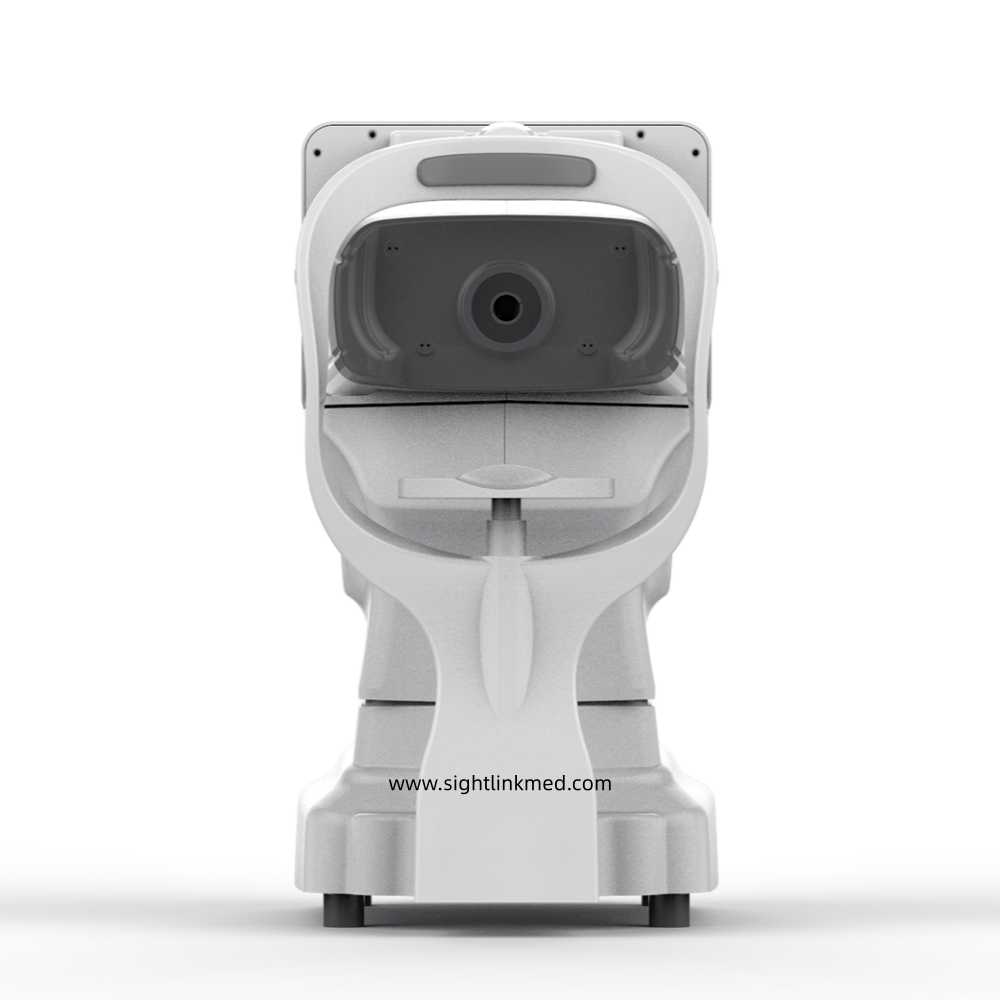

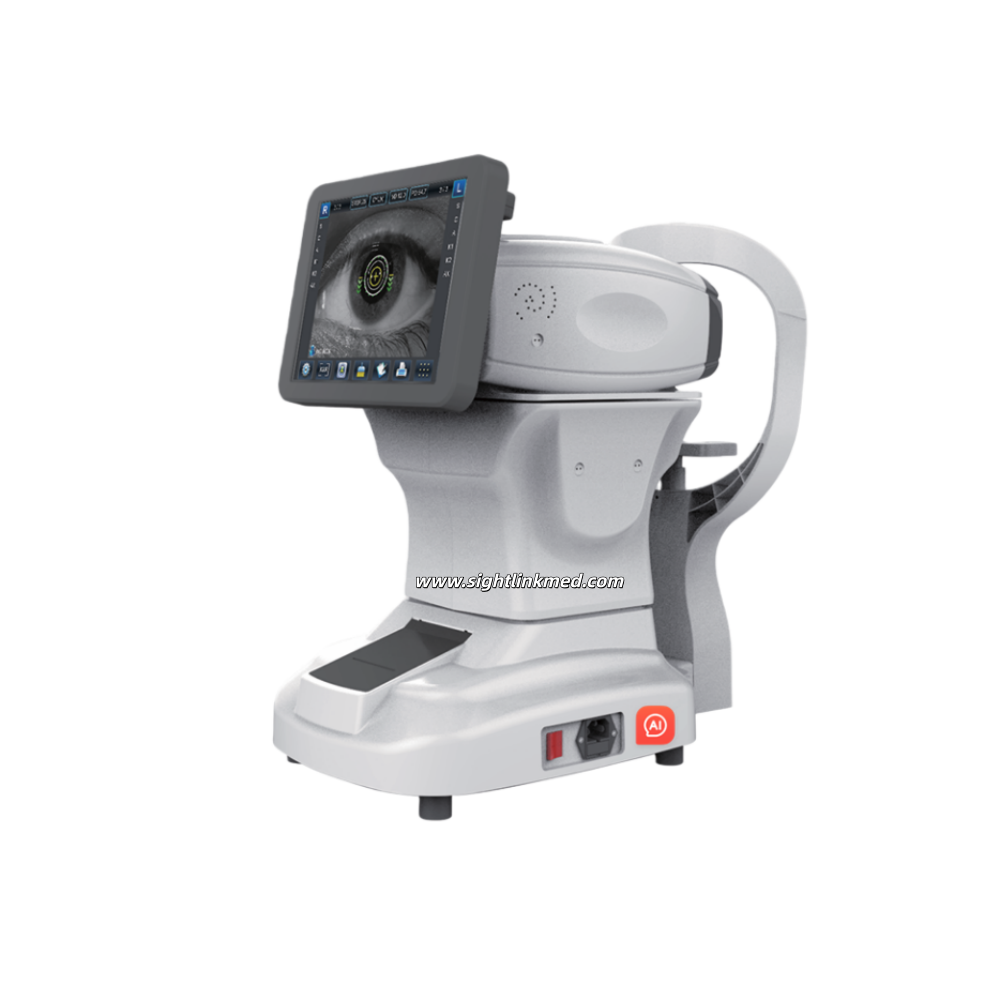

Accurate Device Smart Eye Examination Machine Intelligent Auto Refractometer Keratometer
High-speed image acquisition system, advanced image processing and analysis.
Description
Features:
◆Humanized detail design
◆Comfortable operation and smooth measurement
◆Adjustable LCD screen for convenient measurement
◆Hartmann’s Principle
◆New light path design, clear human eye imaging effect
◆High-speed image acquisition system, advanced image processing and analysis
◆The screen can be rotated freely up and down
◆Automatic eye tracking for lifting, automatic measurement
◆Electric lifting amount tow
| Vertex distance | 0.0.12.0,13.75, 15.0 |
| Sphere | -20.00~+20.00D (0.01/0.06/0.12/0.25D step)(VD=12mm) |
| Axis | 1°~180°(1° step) |
| Cylinder form | -, +, ± |
| Pupil distance | 10-86mm |
| Min. pupil diameter measurable | ￠2.0mm |
| Measuring light Energy | <30uw(Insure measuring safety) |
| Radius of curvature | 5.0-10.0mm(0.01mm unit) |
| Corneal Power | 33.00D-67.00D (In case that the corneal equivalent refractive power is 1.3375) |
| Corneal Astigmatism | 0.00-15.00d(0.06D/0.12D/0.25D Unit) |
| Data Storing | Each 10 measured values of left eyes and right eyes |
| Axis | 1-180 degree |
| Monitor | SHARP10.4″ TFT LCD touch screen(Angle of view adjustable) |
| Built-in printer | 57mm thermal printer, auto paper-cutting |
| Electrical | AC 100-250V,50/60HZ |
| N.W | 22kgs |
| G.W | 26.5kgs |
| Packing size | (length) 600mm x (width) 400mm x (height) 600mm |
