266, 355, 532nm Laser Safety Filter for Zeiss Microscope Ophthalmic Operation Microscope Safety Lazer Filter
266, 355, 532nm Laser Safety Filter
Application: Excimer, UV, harmonic Nd:YAG (266nm + 355nm + 532nm), Argon, KTP
Material: mineral glass laminated
Filter colour: orange
Filter thickness: appr. 5,8 mm VLT: appr. 40 %
Diameter: 18,10 mm Tolerance: ± 0,4 mm
Certified protection levels according to DIN EN 207: 180-315 D LB10 + IR LB5
>315-532 D LB7 + IR LB8 + M LB8Y
PF CE
These are the complete specifications for the Laser filter 266, 355, 532nm
| D AB5+ IR AB3 (OD 10+) 180-315 |
| D AB6 + IR AB7 + M AB6 (OD 9+) 315 – 532 |
| DIRM AB4 ( OD 4+) >532-540 |
| DIRM AB2 (OD 2+) >540-548 |
| DIRM AB1 (OD 1+) >548-553 |
Description

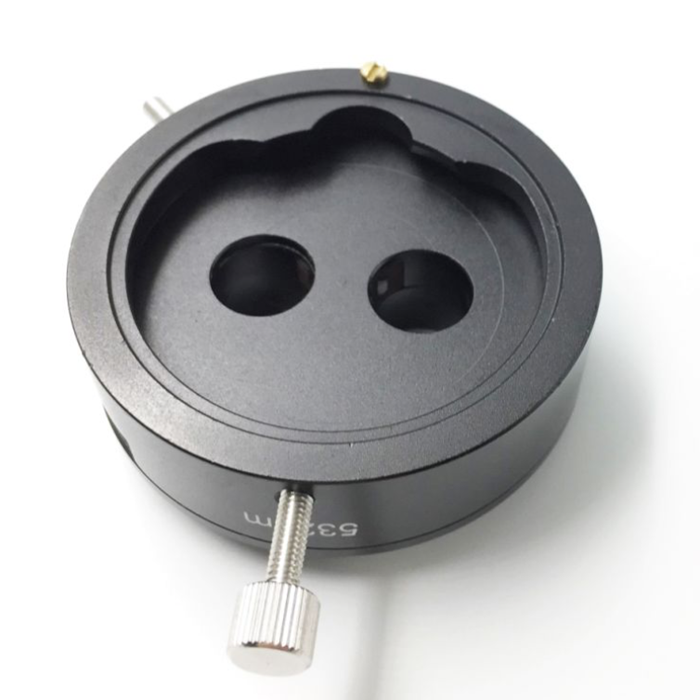

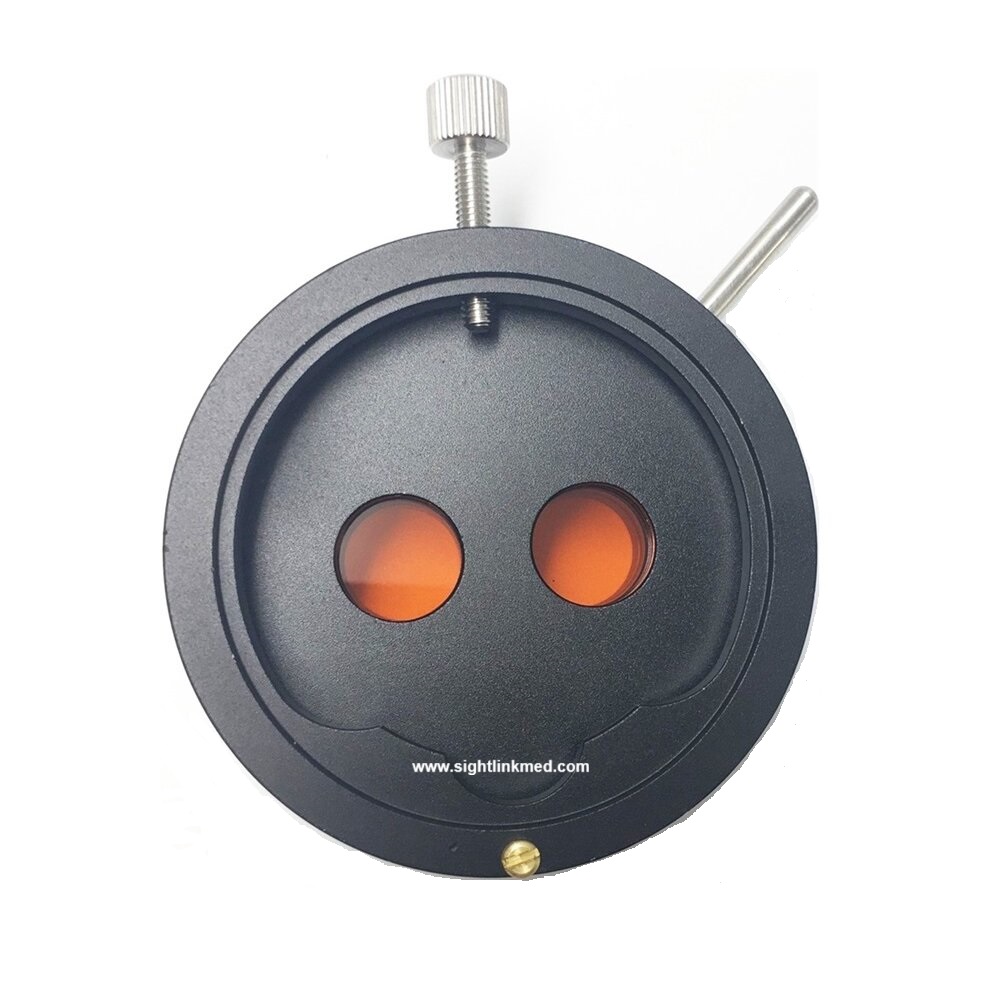

266, 355, 532nm Laser Safety Filter for Zeiss
Model: NV-LF-532Z
Laser filter is designed for filtrating harmful waves so as to protect doctor’s eyes when doing Laser surgery.
The filter lens can be shift to “off” position when laser surgery finished, and turn on when during surgery.
266, 355, 532nm Laser Safety Filter
Application: Excimer, UV, harmonic Nd:YAG (266nm + 355nm + 532nm), Argon, KTP
Material: mineral glass laminated
Filter colour: orange
Filter thickness: appr. 5,8 mm VLT: appr. 40 %
Diameter: 18,10 mm Tolerance: ± 0,4 mm
Certified protection levels according to DIN EN 207: 180-315 D LB10 + IR LB5
>315-532 D LB7 + IR LB8 + M LB8Y
PF CE
