266, 355, 532, 1064nm Laser Safety Filter for Leica Microscope Ophthalmology Instruments Ophthamic Laser Filter
These are the complete specifications for the Laser filter 266, 355, 532nm
| D AB5 + IR AB3 (OD 10+) 180-315 |
| D AB5 + IR AB7 + M AB8 (OD 9+) >315-532 |
| DIRM AB4 (OD 4+) >532 – 541 |
| DIRM AB3 (OD 3+) >541-544 |
| DIRM AB2 (OD 2+) > 544-549 |
| DIRM AB1 (OD 1+) >549-555 |
| DIRM AB1 (OD 1+) >690-722 |
| DIRM AB2 (OD 2+) >722-745 |
| DIRM AB3 (OD 3+) >745-765 |
| DIRM AB4 (OD 4+) >765-780 |
| DIRM AB5 (OD 5+) >780-800 |
| DIRM AB6 (OD 6+) >800-815 |
| D AB6 + IRM AB7 (OD 7+) >815-830 |
| D AB6+ IR AB7 + M AB8 ( OD 8+) >830-847 |
| D AB6 + IR AB7 + M AB9 (OD 9+) >847-862 |
| D AB6 + IR AB7 + M AB9 (OD 10+) >862-1065 |
| D AB6 + IR AB7 + M AB9 (OD 9+) >1065-1072 |
| D AB6+ IR AB7 + M AB8 (OD 8+) >1072-1077 |
| D AB6 + IRM AB7 (OD 7+) >1077-1083 |
| DIRM AB5 (OD 5+) >1083-1094 |
| DIRM AB4 (OD 4+) >1094-1102 |
| DIRM AB3 (OD 3+) >1102-1112 |
| DIRM AB2 ( OD 2+) >1112-1125 |
| DIRM AB1 ( OD 1+) >1125-1150 |
| PF CE |
Description

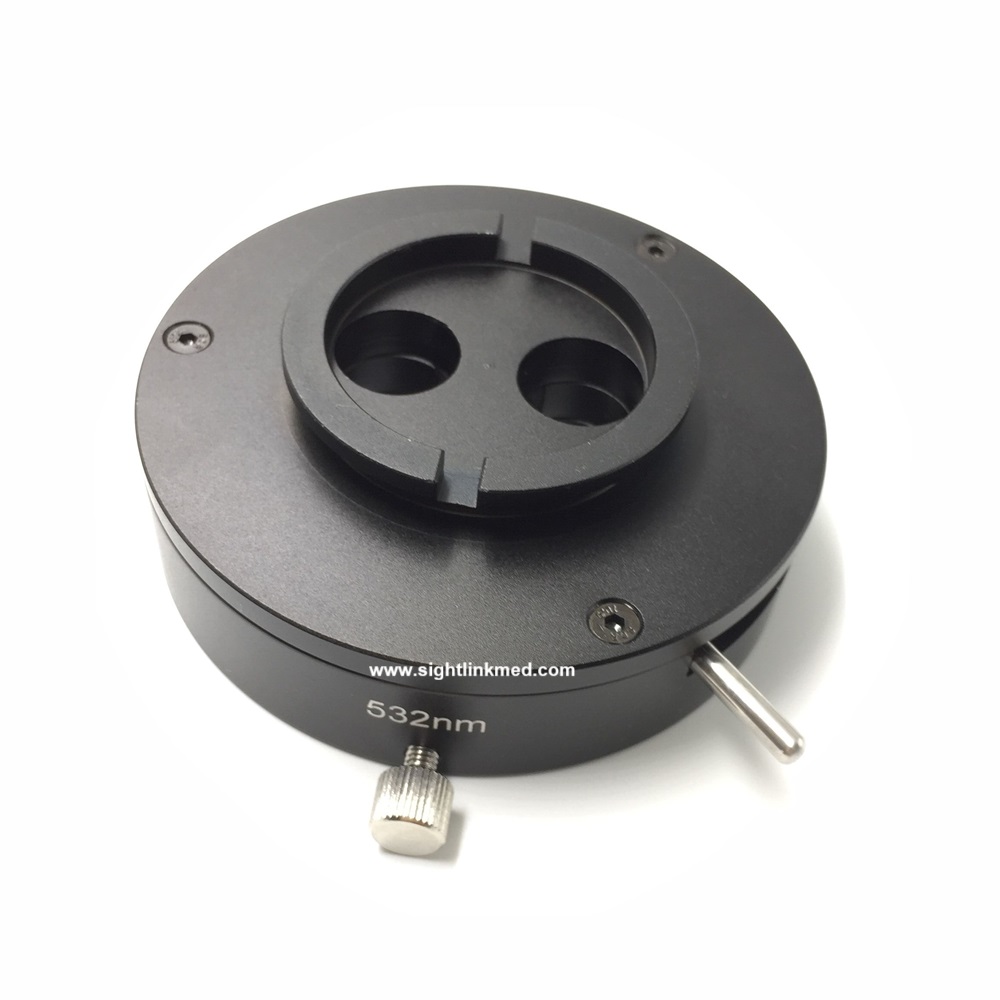

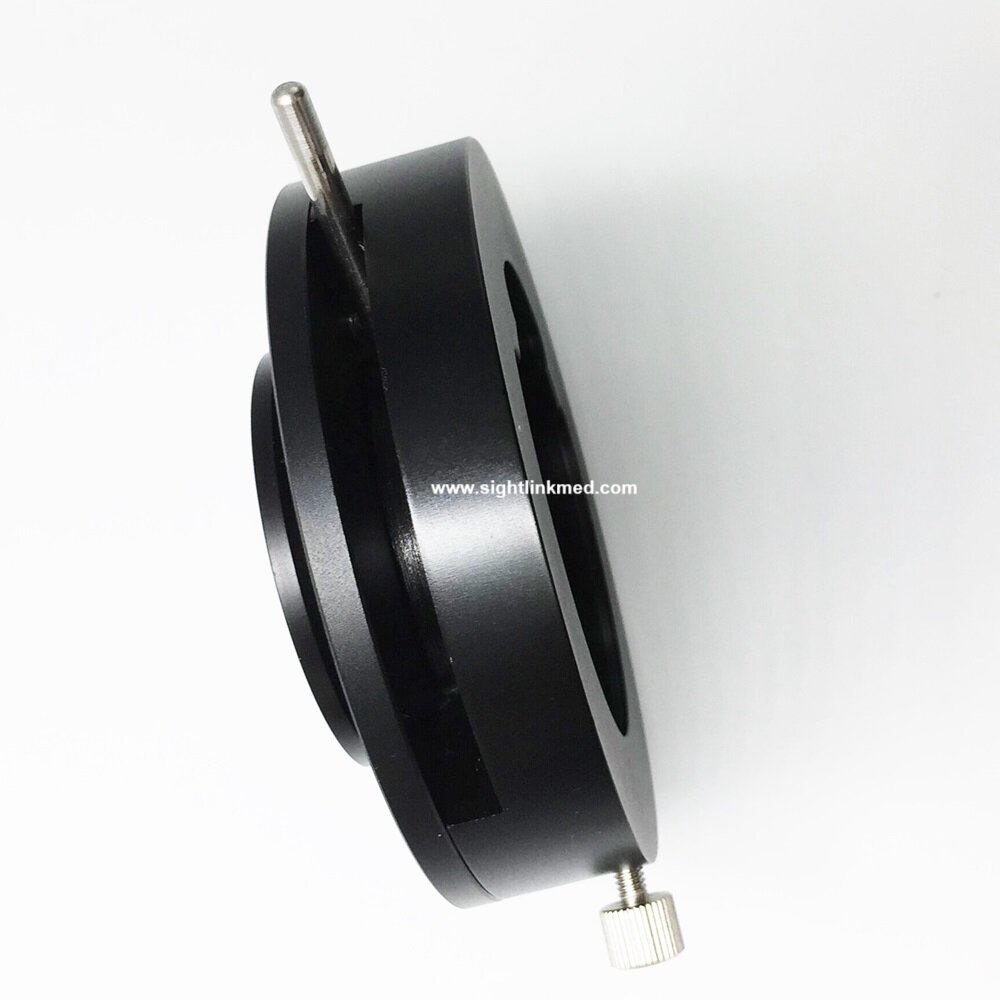

266, 355, 532, 1064nm Laser Safety Filter for Leica
Model: NV-LF-1064L

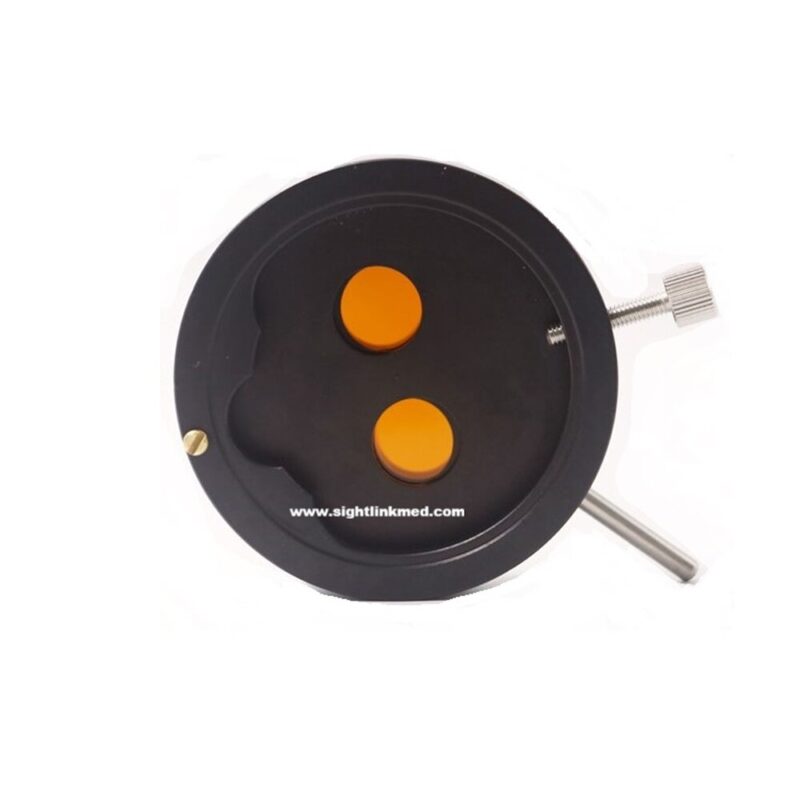

Laser Safety filter is designed for filtrating harmful waves so as to protect doctor’s eyes when doing Laser surgery.

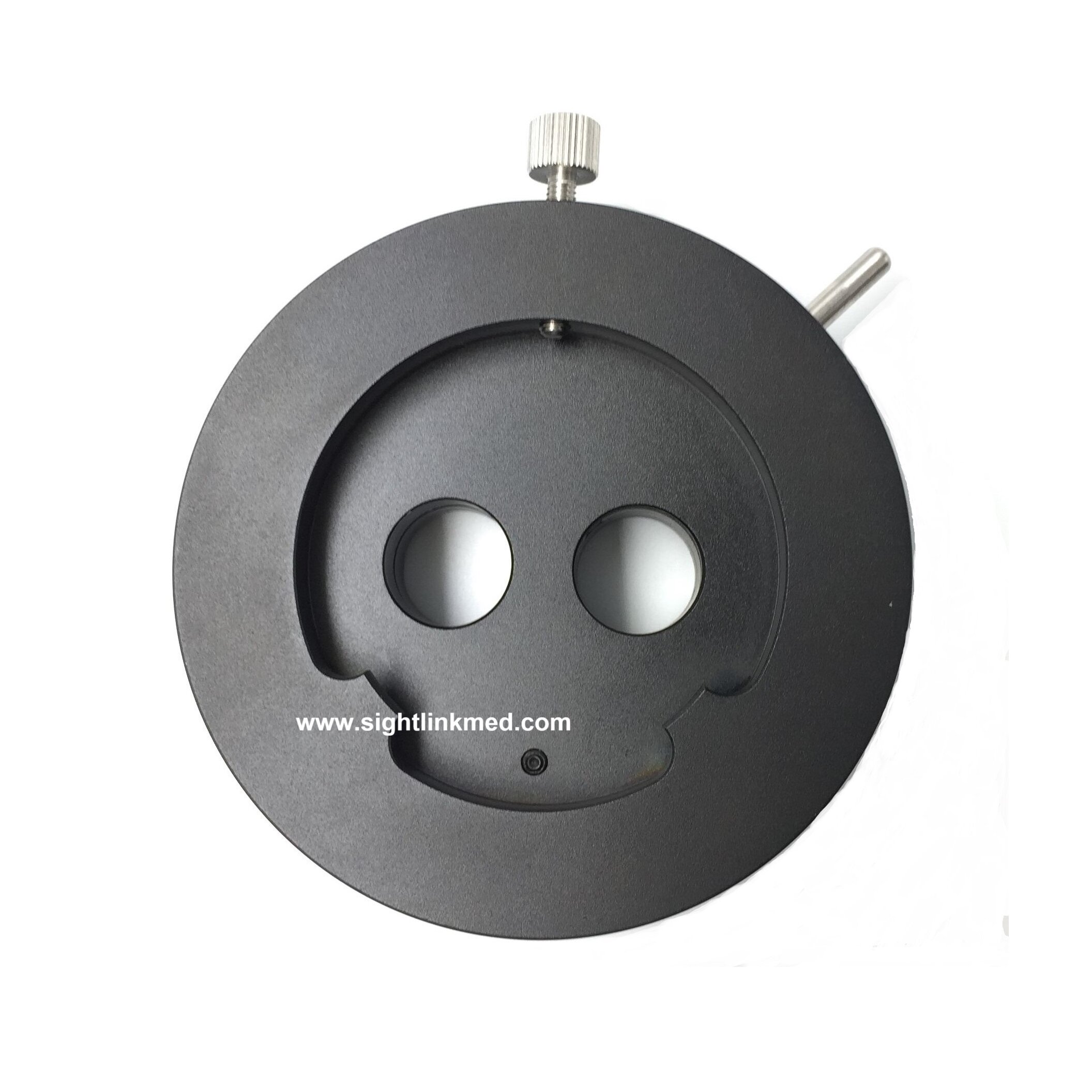

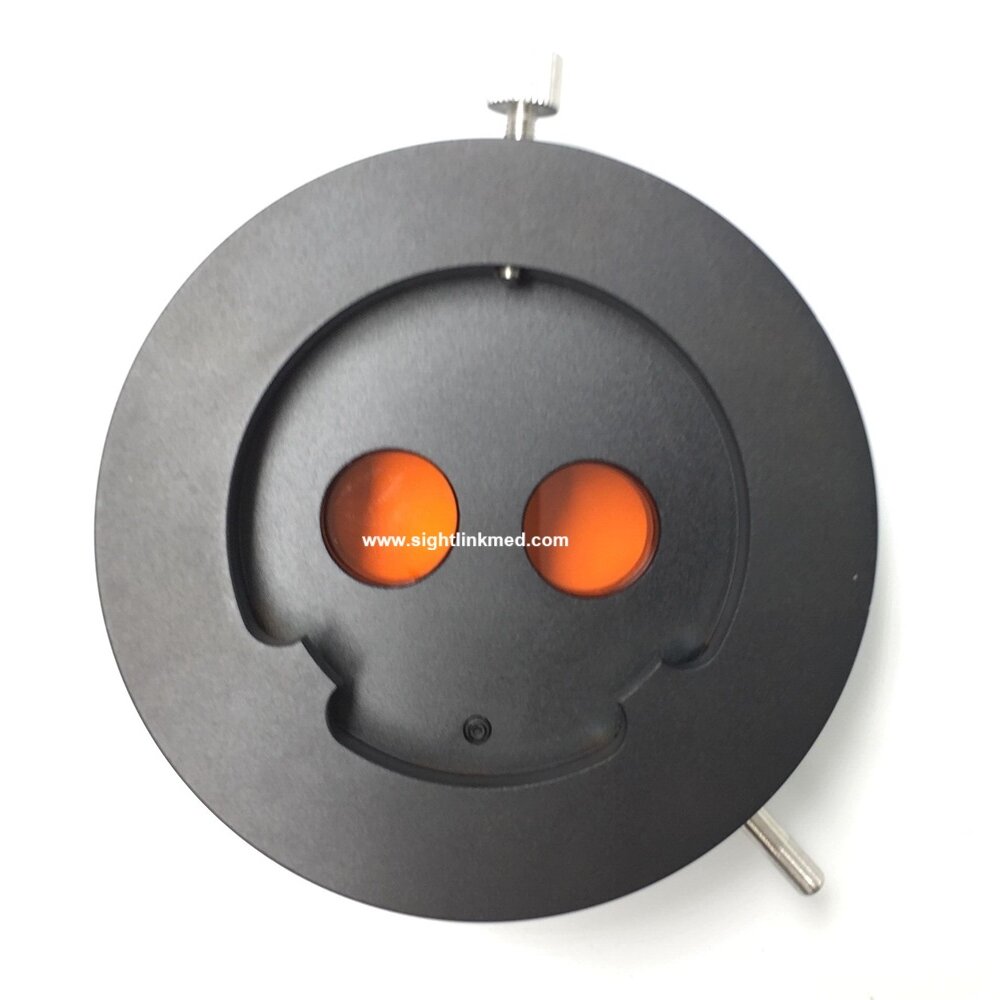

The filter lens can be shift to “off” position when laser surgery finished, and turn on when during surgery.
266, 355, 532, 1064nm Laser Safety Filter
Application: Nd:YAG (266, 355, 532, 1064nm), Ti:Saphir, Fibre, Disc
Material: special plastic
Filter color: amber
Filter thickness: appr. 4.0 mm VLT.: appr. 25 %
Diameter: 18,10 mm Tolerance: ± 0.5 mm
Protection levels according to EN 12254: DAB5+IRAB3(OD10+)
>180- 315 DAB5+IRAB7+MAB8(OD9+)>315- 532 D AB6 + IR AB7 + M AB9 (OD 9+) >847 – 1072
PF CE
