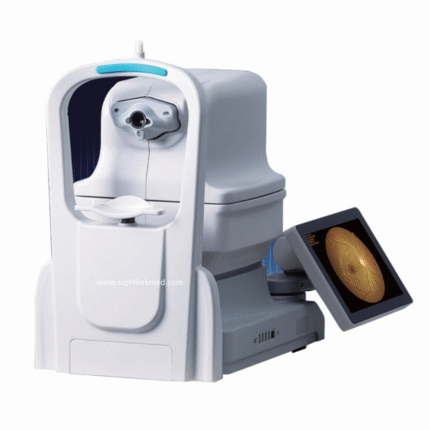

135 Degree Wide Field Retinal Eye Non-Mydriatic Medical Digital Automatic Operation Optics Instrument Fundus Camera
Mosaic function can generate the fundus image up to 135 field of view from 9 images of 50’field width each. More fixation points are distributed between 9 internal fixations shown.
Description
Features :
◆135°wide field -9-position mosaic
Mosaic function can generate the fundus image up to 135 field of view from 9 images of 50’field width each. More fixation points are distributed between 9 internal fixations shown.
◆ One-key click, picture acquired automatically
◆ Automatic chinrest adjusting, pupil searching and alignment
◆Non-mydriatic, automatic focus and exposure
◆ DICOM and AI system are available
| Field of view | 50° |
| Working distance | 35mm |
| Minimum pupil size | >3.3mm |
| Focus modes | Auto /manual |
| Exposure modes | Auto /manual |
| Operation | Auto /manual |
| Photography | SLR camera |
| Image resolution | 24 megapixels |
| Diopter compensation | ±25D |
| Fixation | External fixation / internal fixation |
| Autofocus assist light | Infrared LEDED |
| DICOM 3.0 | Yes |
| Customization Al port | Yes |
| Dimensions | 380mm(L)x550mm(W)x475mm(H) |
| Weight | 26.5kg |
| Power supply | 100-240V 50/60Hz |
